P28976-M3: DescriptionDC Power Cords DBL END TRNK 10AWG 4P M/F ST SIN KEY 3M; CategoryWire/cable; File Size80KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

P28976-M3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P28976-M3	-	-	View	Buy Now

P28976-M3 Overview

DC Power Cords DBL END TRNK 10AWG 4P M/F ST SIN KEY 3M

P28976-M3 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	DC Power Cords
RoHS	Details
Connector End A	Circular Connector
Connector End B	Circular Connector
Wire Gauge - AWG	10 AWG
Length	3 m
Number of Conductors	4 Conductor
Factory Pack Quantity	1

Preview

Download Datasheet

View All

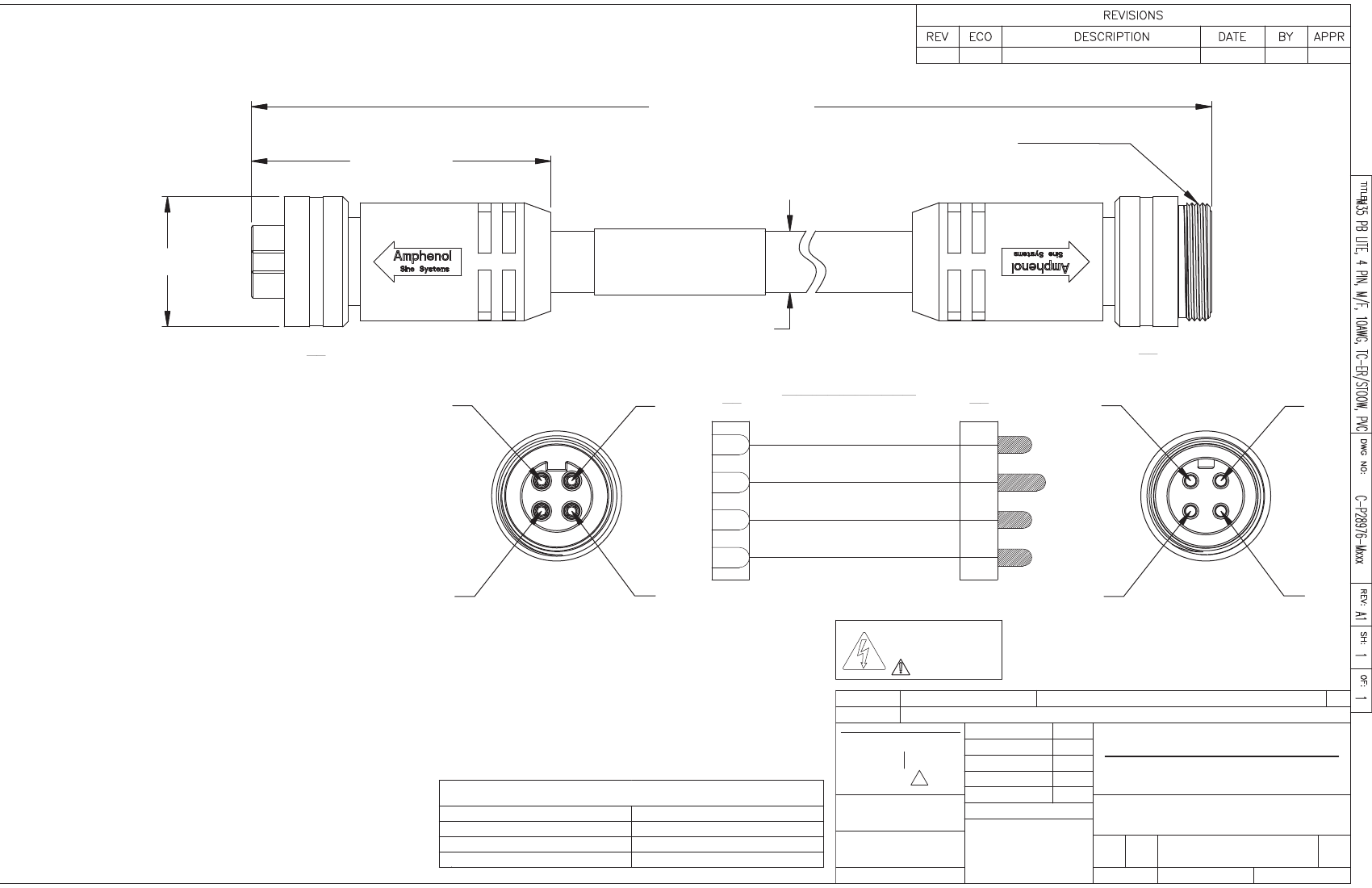

TECHNICAL DATA SHEET RELEASE

12-MAY-14

KMM

RFC

LENGTH (Mxxx = Meters)

1 3/8 - 16 UN

TYP

88.7mm [3.49"]

TYP

38.5mm [1.52"] TYP

P28976-M( )

( ) METERS

AMPHENOL SINE SYSTEMS

ø18.3mm [0.72"]

TECHNICAL DATA:

WIRING DIAGRAM

BLACK 10AWG

GREEN/YELLOW 10AWG

RED 10AWG

WHITE 10AWG

1) MATERIALS:

COUPLING NUT: MACHINED ALUMINUM, ANODIZED

INSULATION INSERT: THERMOPLASTIC, UL 94/V-0

CONTACT: GOLD FLASH PLATING OVER COPPER ALLOY

OVERMOLD MATERIAL: THERMOPLASTIC COLOR: BLACK

CABLE RATING: UL LISTED DUAL RATED TC-ER/STOOW,

CSA TYPE STOOW, FT4 FLAME RATING, 600V,

90°C DRY & 75°C WET (TC-ER), 105°C (STOOW)

CABLE JACKET MATERIAL: PVC COLOR: BLACK

CONDUCTOR INSULATION: PVC

NUMBER OF CONDUCTORS: (4) 10AWG

2) ELECTRICAL DATA:

CURRENT (MAX): 25A

VOLTAGE (MAX): 600V AC/DC

INSULATION RESISTANCE (MIN): 5000M OHMS

DIELECTRIC TEST VOLTAGE: 2200V

SHORT CIRCUIT AMPERAGE RATING: 65kA - BREAKERS AND FUSES

3) MECHANICAL DATA:

TEMPERATURE RANGE: -40°C TO 90°C

PROTECTION: IP67 (MATED CONDITION)

MATING CYCLES: >500

VIBRATION RESISTANCE PER MIL-STD-202 METHOD 204

THERMAL SHOCK PER MIL-STD-202 METHOD 207

48 HOUR SALT SPRAY PER MIL-STD-202 METHOD 101

0-2.99 M = +100.0/-25.0mm

3-8.99 M = +150.0/-25.0mm

4) RoHS COMPLIANT

9-14.99 M = +300.0/-25.0mm

5) UL 2237 LISTED ASSEMBLY

15-OVER M = +450.0/-25.0mm

UL FILE NUMBERS: E339703

Risk of Electrical Shock

Do Not Disconnect Under Load.

Risque de chocs electriques

Ne pas debrancher sous tension.

WARNING

QUANTITY

DESCRIPTION

PART NUMBER

MATERIALS LIST

SIGNATURES

DRAWN:

CHECKED:

ENGINEER:

APPROVAL:

ITEM

UNLESS OTHERWISE SPECIFIED

All dimensions are in metric(mm).

Tolerances are as follows:

PL DEC ±0.30

Fractions ±1/64

PL DEC ±0.15

Angles ±1°

PL DEC ±0.08

DATE

TOLERANCE

3) Note reference =

MATERIAL SPECIFICATIONS:

CUSTOMER:

KMM

MRF

KMM

RFC

12-MAY-14

Amphenol

Sine Systems - www.amphenol-sine.com

44724 Morley Drive

Clinton Township, MI 48036

0-9.99 FT = +4" / -1"

10.00-29.99 FT = +6" / -1"

30.00-49.99 FT = +12" / -1"

50 FT-OVER = +18" / -1"

PROCESS SPECIFICATIONS:

NEXT ASS'Y:

THIS DRAWING IS SUPPLIED FOR

INFORMATION ONLY. DESIGN FEATURES,

SPECIFICATIONS AND PERFORMANCE DATA

SIZE

SHOWN HEREON ARE THE PROPERTY OF

THE AMPHENOL CORPORATION. NO RIGHTS

OF REPRODUCTION ARE IMPLIED. ALL

DIMENSIONS ARE SUBJECT TO NORMAL

SCALE:

MANUFACTURING VARIATIONS.

M35 POWERBOSS LITE, 4 PIN, M/F,

10 AWG, TC-ER/STOOW, PVC JACKET

TYPE

FULL

C-

DWG NO:

C-P28976

P28976-Mxxx

SHEET

REVISION
