3023007-01M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 3023007-01M

3023007-01M: DescriptionUSB Cables / IEEE 1394 Cables USB 3.0 MICRO AB MICRO B 1M; CategoryWire/cable; File Size313KB，2 Pages; ManufacturerQualtek; Environmental Compliance

Download Datasheet Parametric View All

3023007-01M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3023007-01M	-	-	View	Buy Now

3023007-01M Overview

USB Cables / IEEE 1394 Cables USB 3.0 MICRO AB MICRO B 1M

3023007-01M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Qualtek
Product Category	USB Cables / IEEE 1394 Cables
RoHS	Details
Product	USB Cables
Type	USB 3.0
Connector End A	USB Type A, Micro
Connector End A Pin Count	10 Position
Connector End B	USB Type B, Micro
Connector End B Pin Count	10 Position
Gender	Male / Male
Length	1000 mm
Color	Black
Factory Pack Quantity	50

Preview

Download Datasheet

View All

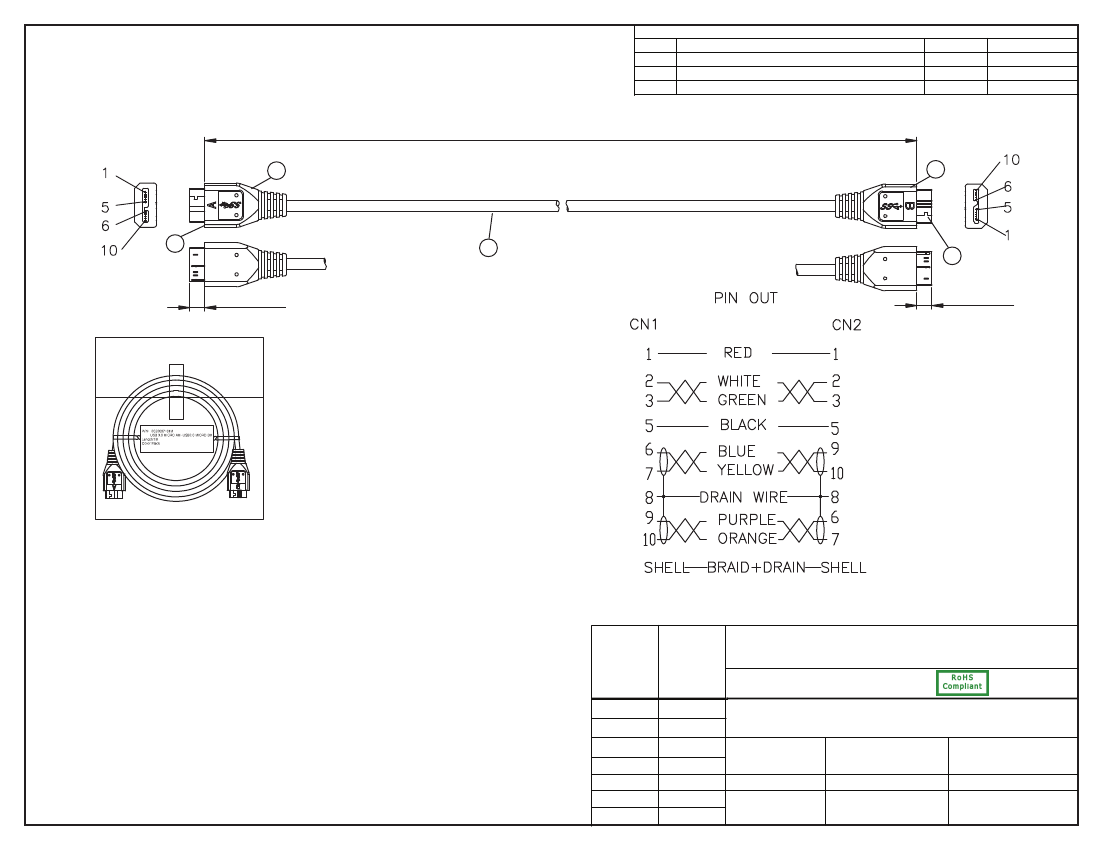

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK

ELECTRONICS AND NOT TO BE REPRODUCED FOR

OR COMMUNICATED TO A THIRD PARTY WITHOUT

THE EXPRESS WRITTEN PERMISSION OF AN OFFICER

OF QUALTEK ELECTRONICS.

1000 ± 30mm

REV.

REVISION

DESCRIPTION

Updated Specifications

DATE

08-12-13

APPROVED

CN1

CN2

5.5 ±

0.3

0.1

5.5 ±

0.3

0.1

NOTES:

1. CABLE: UL20276

(30AWG*1PR+EAM)*2C+30AWG*1PR+24AWG*2C+AEB (AL) 65%

OUTER JACKET: BLACK, OD: 5.5 ± 0.2mm

2. CONNECTOR: MICRO USB 3.0 A TYPE MALE

INSULATOR: BLACK

PIN G/F

NICKEL PLATED SHELL

3. CONNECTOR: MICRO USB 3.0 B TYPE MALE

INSULATOR: BLACK

PIN G/F

NICKEL PLATED SHELL

4. PVC MOLDED: 45P BLACK

5. ELECTRICAL TEST:

<1>.100% OPEN SHORT & MISS WIRE TEST

<2>. INSULATION RESISTANCE: DC300V 20M ohm MIN.

<3>. CONDUCTOR RESISTANCE: 2 ohm MAX.

Dim

range

(mm)

0-1

1-6

6-18

18-50

50-120

120-250

250-500

Tolerance

+/-

(mm)

0.15

0.20

0.30

0.50

0.70

0.90

1.20

CONTROLLED

Qualtek Electronics Corp.

Part Number:

Description:

WCI DIVISION

3023007-01M

MICRO USB 3.0 A/M - MICRO USB 3.0 B/M

UNIT: mm

REV. B

Approved / Date

LY / 06-25-10

Drawn / Date

R.Nuti

06-25-10

Checked / Date

06-25-10
