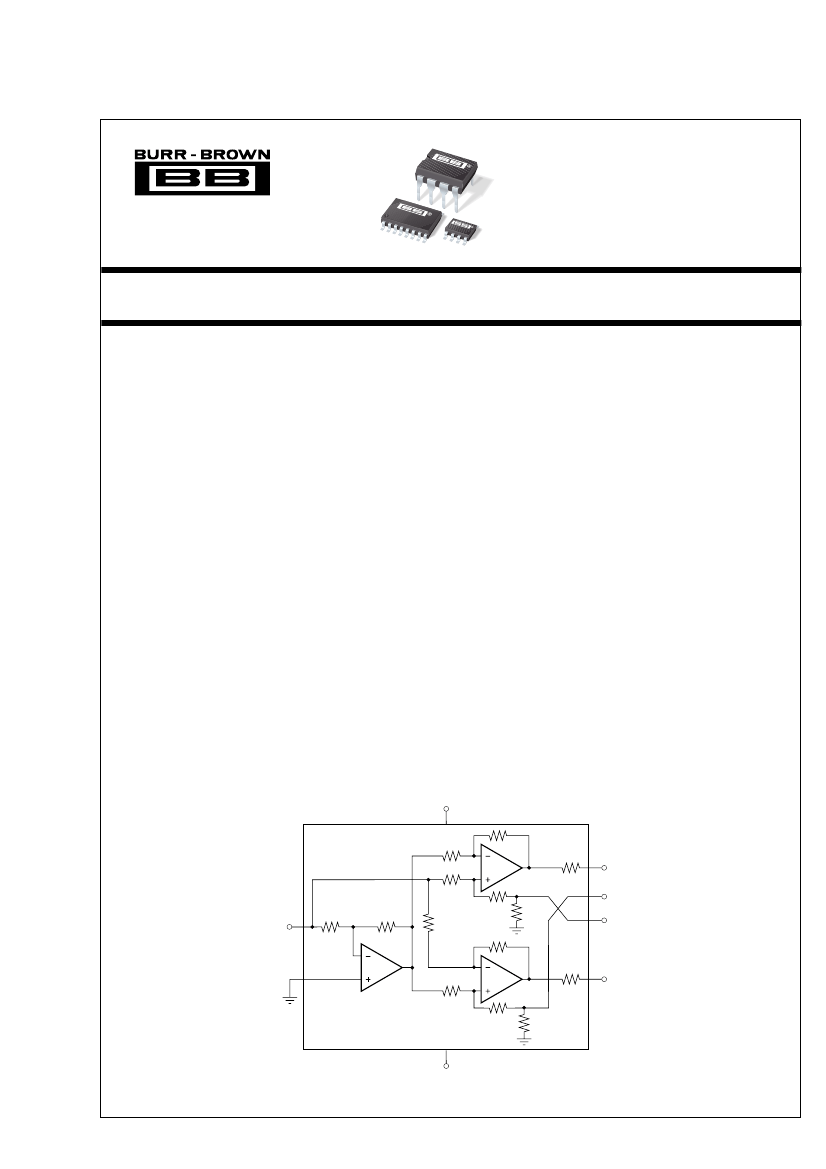

balanced output pair. These balanced audio drivers
consist of high performance op amps with on-chip
precision resistors. They are fully specified for high
performance audio applications and have excellent
ac specifications, including low distortion (0.0005%
at 1kHz) and high slew rate (15V/µs).
The on-chip resistors are laser-trimmed for accurate
gain and optimum output common-mode rejection. Wide
output voltage swing and high output drive capability
allow use in a wide variety of demanding applications.
They easily drive the large capacitive loads associated
with long audio cables. Used in combination with the
INA134 or INA137 differential receivers, they offer a
complete solution for transmitting analog audio signals
without degradation.
The DRV134 is available in 8-pin DIP and SOL-16
surface-mount packages. The DRV135 comes in a
space-saving SO-8 surface-mount package. Both are
specified for operation over the extended industrial
temperature range, –40°C to +85°C and operate from
–55°C to +125°C.
V+
APPLICATIONS
q
q
q
q
q
q
q
q
q
AUDIO DIFFERENTIAL LINE DRIVER
AUDIO MIX CONSOLES
DISTRIBUTION AMPLIFIER
GRAPHIC/PARAMETRIC EQUALIZERS
DYNAMIC RANGE PROCESSORS
DIGITAL EFFECTS PROCESSORS
TELECOM SYSTEMS
HI-FI EQUIPMENT
INDUSTRIAL INSTRUMENTATION
50Ω
A2
+V
O
+Sense
10kΩ
V
IN
–Sense
A1
Gnd
A3
50Ω
–V
O
10kΩ
All resistors 30kΩ unless otherwise indicated.
V–
International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111 • Twx: 910-952-1111
NOTES: (1) dBu = 20log (Vrms /0.7746). (2) Resistors are ratio matched but have
±20%
absolute value. (3) V
OCM
= [(+V
O
) + (–V
O
)]/ 2. (4) V
OD
= (+V
O
) – (–V
O
).
(5) Guarantees linear operation. Includes common-mode offset.
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change
without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant
any BURR-BROWN product for use in life support devices and/or systems.
®
DRV134, 135
2
PIN CONFIGURATIONS
Top View
8-Pin DIP/SO-8
Top View
SOL-16
NC
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
NC
NC
+V
O
+Sense
V+
V–
NC
NC
–V
O
–Sense
Gnd
V
IN
1
2
3
4
8
7
6
5
+V
O
+Sense
NC
–V
O
V+
–Sense
V–
Gnd
V
IN
NC
ABSOLUTE MAXIMUM RATINGS
(1)
Supply Voltage, V+ to V– .................................................................... 40V
Input Voltage Range .................................................................... V– to V+
Operating Temperature .................................................. –55°C to +125°C
Storage Temperature ..................................................... –55°C to +125°C
Junction Temperature .................................................................... +150°C
Lead Temperature (soldering, 10s) ............................................... +300°C
NOTE: (1) Stresses above these ratings may cause permanent damage.
Exposure to absolute maximum conditions for extended periods may affect
device reliability.
NC
ELECTROSTATIC
DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with ap-
propriate precautions. Failure to observe proper handling and
installation procedures can cause damage.
ESD damage can range from subtle performance degradation
to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric
changes could cause the device not to meet its published
specifications.
PACKAGE/ORDERING INFORMATION
PACKAGE
DRAWING
NUMBER
(1)
006
211
"
182
"
SPECIFIED
TEMPERATURE
RANGE
–40°C to +85°C
–40°C to +85°C
"
–40°C to +85°C
"
ORDERING
NUMBER
(2)
DRV134PA
DRV134UA
DRV134UA/1K
DRV135UA
DRV135UA/2K5
TRANSPORT
MEDIA
Rails
Rails
Tape and Reel
Rails
Tape and Reel
PRODUCT
DRV134PA
DRV134UA
"
DRV135UA
"
PACKAGE
8-Pin DIP
SOL-16 Surface Mount
"
SO-8 Surface Mount
"
NOTES: (1) For detailed drawing and dimension table, please see end of data sheet, or Appendix C of Burr-Brown IC Data Book. For detailed Tape and Reel
mechanical information refer to Appendix B of Burr-Brown IC Data Book. (2) Models with a slash (/) are available only in Tape and Reel in the quantities indicated
(e.g., /2K5 indicates 2500 devices per reel). Ordering 2500 pieces of “DRV135UA/2K5” will get a single 2500-piece Tape and Reel. For detailed Tape and Reel
mechanical information, refer to Appendix B of Burr-Brown IC Data Book.
