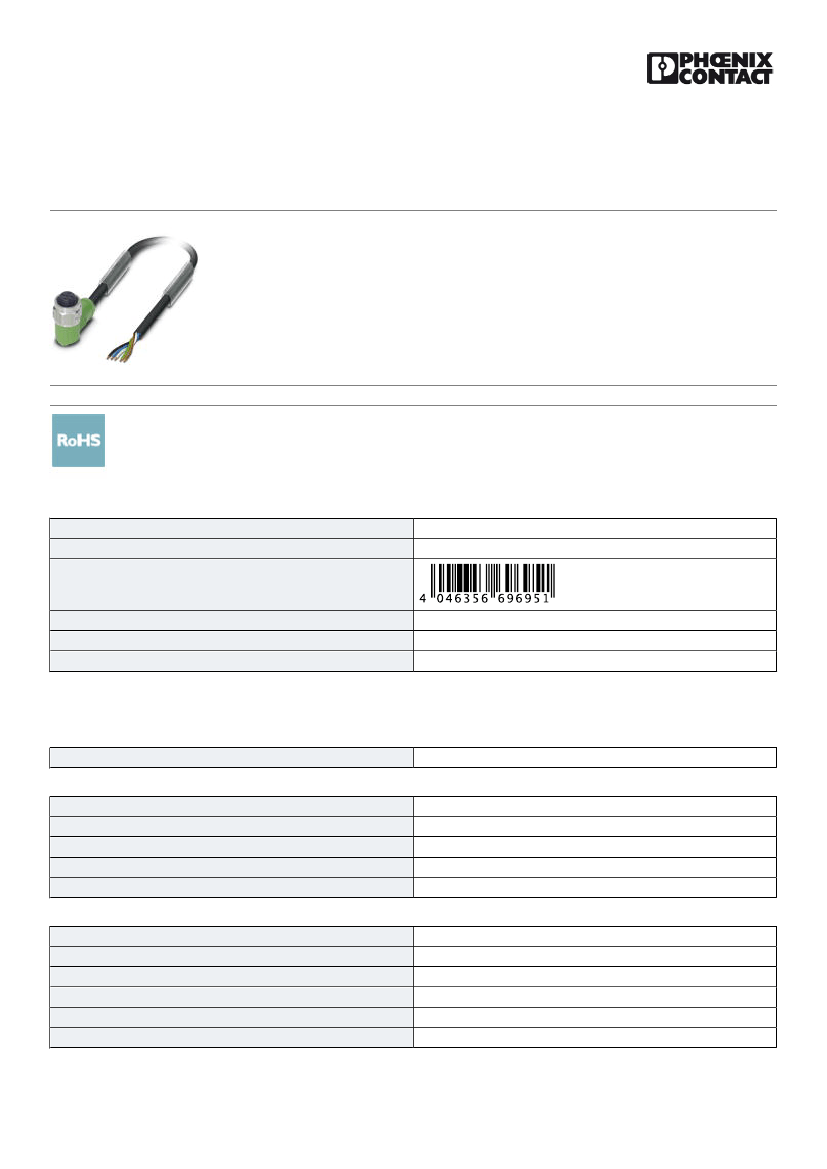

Sensor/Actuator cable - SAC-5P-10,0-PUR/M12FR VA - 1404426
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 5-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket angled
M12, A-coded, Cable length: 10 m, with high-grade steel knurl
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356696951
85444290
Made to Order (non-returnable)
1 STK
50 STK
Technical data
Dimensions
Length of cable
10 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-40 °C ... 105 °C (Plug / socket)
IP65
IP67
IP68
IP69K
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Standards/regulations
4A
60 V
5
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
11/13/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1404426
Sensor/Actuator cable - SAC-5P-10,0-PUR/M12FR VA - 1404426
Technical data
General
Status display
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
Torque
No
II
3
≥ 100
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Stainless steel
NBR
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
PUR halogen-free black
PUR
Li9Y11Y
20549 / 10493 (80°C/300 V)
5x 0.34 mm² (Signal line)
22
42x 0.10 mm
1.27 mm ±0.02 mm (Signal line)
≥ 0.21 mm
brown, white, blue, black, green-yellow
5 wires around filler to the core
black-gray RAL 7021
approx. 0.7 mm
5 mm ±0.15 mm
25 mm
50 mm
4000000
50 mm
10 m
3 m/s
10 m/s²
11/13/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1404426
Sensor/Actuator cable - SAC-5P-10,0-PUR/M12FR VA - 1404426
Technical data
Cable
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
35 kg/km
PUR
PP
Bare Cu litz wires
≥ 16 GΩ*km (at 20 °C)
max. 58 Ω/km (at 20 °C)
300 V
3000 V
Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Flexible
Flame resistance
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN UL-Style 20549
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 60811-2-1
Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
Resistant to salt water
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

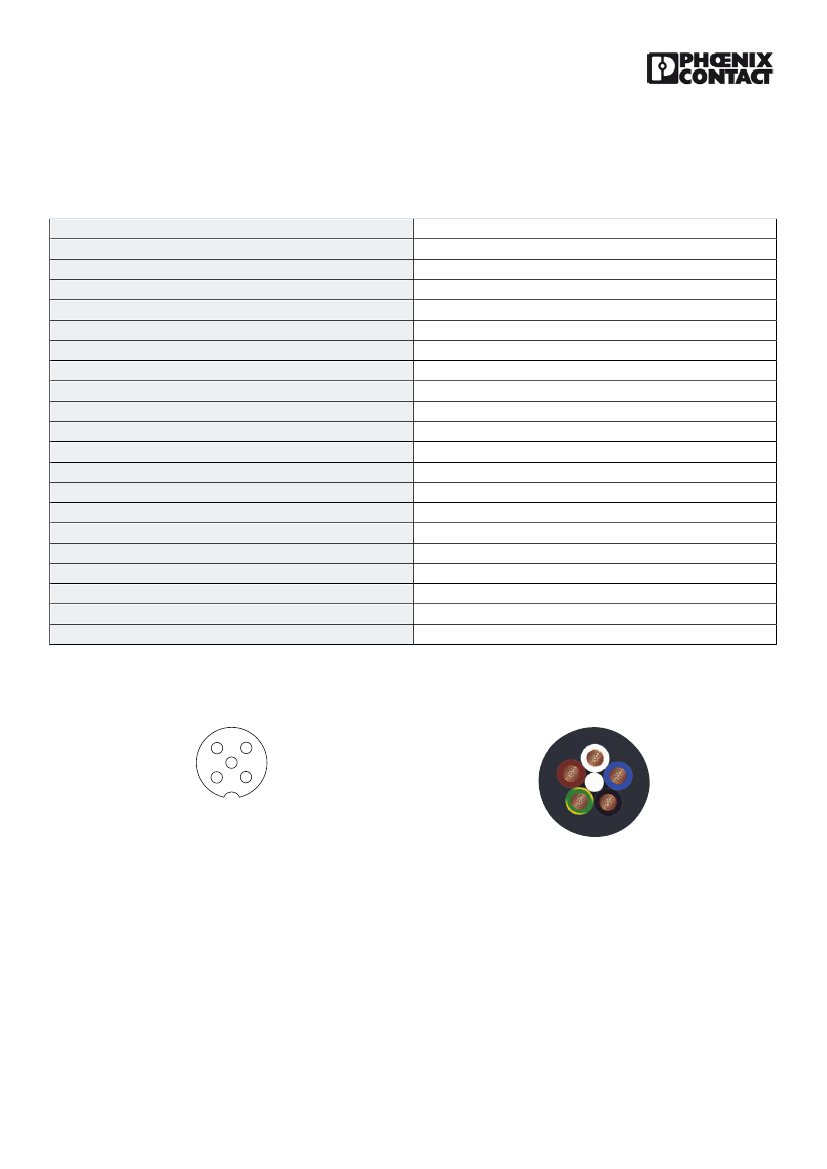

Drawings
Schematic diagram
3
5
4
Cable cross section
2
1
Pin assignment M12 socket, 5-pos., A-coded, socket side view
PUR halogen-free black [PUR]
11/13/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1404426
Sensor/Actuator cable - SAC-5P-10,0-PUR/M12FR VA - 1404426
Dimensional drawing
SW14
M12
1
2
BN
WH
BK
BU
GN/YE
Circuit diagram
27,4
4
3
Ø11
5
35,2
M12 x 1 socket, angled
Contact assignment of the M12 socket
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/13/2016 Page 4 / 4
