4308K-102-8202FBA datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 4308K-102-8202FBA

4308K-102-8202FBA: DescriptionArray/Network Resistor, Isolated, Thin Film, 0.25W, 82000ohm, 50V, 1% +/-Tol, -50,50ppm/Cel, 7808,; CategoryPassive components The resistor; File Size198KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

4308K-102-8202FBA Overview

Array/Network Resistor, Isolated, Thin Film, 0.25W, 82000ohm, 50V, 1% +/-Tol, -50,50ppm/Cel, 7808,

4308K-102-8202FBA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	770381264
Reach Compliance Code	not_compliant
ECCN code	EAR99
structure	Molded
JESD-609 code	e0
Lead length	3.43 mm
lead spacing	2.54 mm
Network Type	Isolated
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	4.95 mm
Package length	19.92 mm
Package form	SIP
Package width	2.16 mm
Rated power dissipation(P)	0.25 W
resistance	82000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	4300K
size code	7808
technology	THIN FILM
Temperature Coefficient	50 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Tolerance	1%
Operating Voltage	50 V

Preview

Download Datasheet

View All

VE S CO

AV R M

AI SIO PL

LA N IA

BL S NT

Features

■

RoHS compliant* (see How to Order

“Termination” option)

Low profile provides compatibility with

DIPs

Also available in medium profile (4300S -

.250 ”) and high profile (4300K - .350 ”)

Marking on contrasting background

■

Custom circuits available per factory

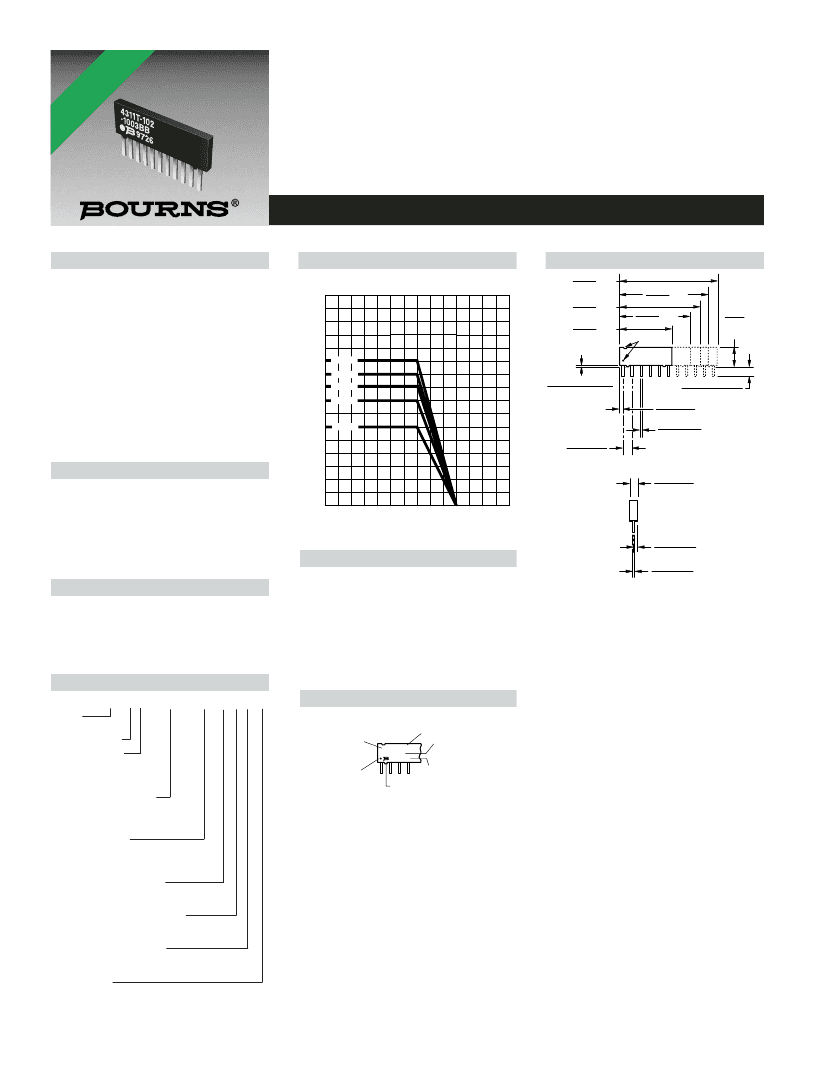

4300T, S, K Series - Thin Film Molded SIP

Product Characteristics

Resistance Range

Bussed ...................49.9 to 100K ohms

Isolated ......................20 to 200K ohms

Series.........................20 to 100K ohms

Resistance Tolerance

.........................±0.1 %, ±0.5 %, ±1 %

Temperature Coefficient

..................±100 ppm/°C, ±50 ppm/°C,

±25 ppm/°C

Temperature Range ....-55 °C to +125 °C

Insulation Resistance

..................10,000 megohms minimum

TCR Tracking .........................±5 ppm/°C

Maximum Operating Voltage............50 V

Environmental Characteristics

Thermal Shock and

Power Conditioning ...................... 0.1 %

Short Time Overload ..................... 0.1 %

Terminal Strength ........................ 0.25 %

Resistance to Soldering Heat ....... 0.1 %

Moisture Resistance ..................... 0.1 %

Life .............................................. 0.50 %

Physical Characteristics

Body Material Flammability

...........................Conforms to UL94V-0

Lead Frame Material

..........................Copper, solder coated

Body Material ..................Novolac epoxy

How To Order

Package Power Temp. Derating Curve

(Low Profile, 4300T)

(

)

1.75

1.50

4311T

WATTS

1.25

1.00

.75

.50

.25

4310T

4309T

4308T

4306T

Product Dimensions

27.53

MAX.

(1.084)

22.45

MAX.

(.884)

14.83 MAX.

(.584)

24.99

MAX.

(.984)

19.92

MAX.

(.784)

PIN #1 REF.

4.95

(.195)

MAX.

.381 + .127/ - .000

(.015 + .005/ - 000)

2.54

.07

(.100

.003*)

TYP.

NON-ACCUM.

3.43 + .38/ - .25

(.135 + .015/ - .010)

1.02

.12

(.040

.005)

.483

.050

TYP.

(.020

.002)

2.16

.10

(.085

.004)

150

125

AMBIENT TEMPERATURE (

C )

Package Power Ratings at 70°C

4304 .......... ............ 0.60...... 0.80 watts

4306 ...... 0.75.......... 0.90...... 1.20 watts

4308 ...... 1.00.......... 1.20...... 1.60 watts

4309 ...... 1.13 ................................watts

4310 ...... 1.25.......... 1.50...... 2.00 watts

4311 ...... 1.38 ................................watts

1.02

.05

(.0425

.002)

.254

.050

(.010

.002)

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

43 11 T - 101 - 2222 F A B __

Model

(43 = Molded SIP)

Number of Pins

Physical Config.

•T = Low Profile Thin Film

•S = Med. Profile Thin Film

•K = High Profile Thin Film

Electrical Configuration

•101 = Bussed

•102 = Isolated

•106 = Series

Resistance Code

•First 3 digits are significant

•Fourth digit represents the

number of zeros to follow.

Absolute Tolerance Code

•B = ±0.1%

•F = ±1%

•D = ±0.5%

Temperature Coefficient Code

•A = ±100ppm/°C •C = ±25ppm/°C

•B = ±50ppm/°C

Ratio Tolerance (Optional)

•A = ±0.05% to R1 •D = ±0.5% to R1

•B = ±0.1% to R1

Terminations

• L = Tin-plated (RoHS compliant version)

• Blank = Tin/Lead-plated

Consult factory for other available options.

Typical Part Marking

Represents total content. Layout may vary.

PART

NUMBER

4311T-101-

1003BB

YYWW

CIRCUIT

RESISTANCE

CODE

DATE CODE

PIN ONE

INDICATOR

MANUFACTURER'S

TRADEMARK

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.
