3023017-02M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 3023017-02M

3023017-02M: DescriptionUSB Cables / IEEE 1394 Cables USB 3.0 A - MICRO B 30/30/24 2M BLK; CategoryWire/cable; File Size478KB，2 Pages; ManufacturerQualtek; Environmental Compliance

Download Datasheet Parametric View All

3023017-02M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3023017-02M	-	-	View	Buy Now

3023017-02M Overview

USB Cables / IEEE 1394 Cables USB 3.0 A - MICRO B 30/30/24 2M BLK

3023017-02M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Qualtek
Product Category	USB Cables / IEEE 1394 Cables
RoHS	Details
Product	USB Cables
Type	USB 3.0
Connector End A	USB Type A
Connector End A Pin Count	9 Position
Connector End B	USB Type B, Micro
Connector End B Pin Count	10 Position
Gender	Male / Male
Length	2000 mm
Color	Black
Packaging	Bulk
Factory Pack Quantity	50

Preview

Download Datasheet

View All

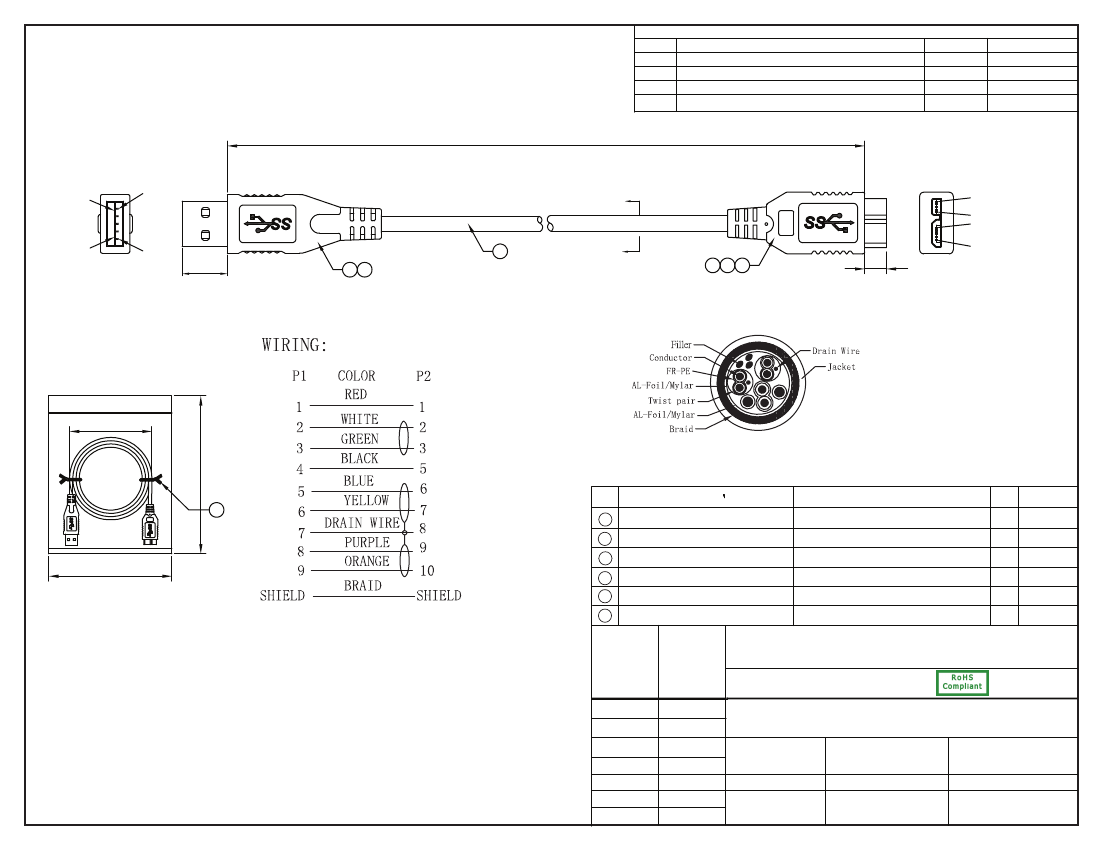

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK

ELECTRONICS AND NOT TO BE REPRODUCED FOR

OR COMMUNICATED TO A THIRD PARTY WITHOUT

THE EXPRESS WRITTEN PERMISSION OF AN OFFICER

OF QUALTEK ELECTRONICS.

2000 ± 30

REV.

REVISION

DESCRIPTION

DATE

APPROVED

2 4

3 4 5

5.5 ±

0.3

0.1

110 ± 10

A-A

CONTROLLED

No.

CABLE

USB3.0 A M 9PIN GOLD PLATED

MICRO USB3.0 B M 10PIN GOLD PLATED

8”

PARTS NAME

SPECIFICATION STANDARD

UL 20276 O.D. 5.5mm COLOR: BLACK

30U” SHELL NICKEL PLATED INSULATOR BLUE

15U” SHELL NICKEL PLATED INSULATOR BLACK

QTY REMARKS

6”

NOTES:

1. CABLE: UL20276

(1Px30AWG+D+AL+MY)x2C+1Px30AWG+2Cx24AWG+AL+B

OUTER JACKET: BLACK, O.D.: 5.5mm

2. CONNECTORS: USB 3.0 A MALE TO MICRO USB 3.0 B MALE

3. HOOD: MOLDED TYPE, COLOR: BLACK

4. PACKING: 1PC/POLYBAG

5. RoHS COMPLIANT

PVC

CABLE TIE

Dim

range

(mm)

0-1

1-6

6-18

18-50

50-120

120-250

250-500

Tolerance

+/-

(mm)

0.15

0.20

0.30

0.50

0.70

0.90

1.20

45P PVC BLACK

CLEAR PE

L=9cm COLOR: BLACK

Qualtek Electronics Corp.

Part Number:

Description:

WCI DIVISION

3023017-02M

USB 3.0 A/M - MICRO USB 3.0 B/M

UNIT: mm

Drawn / Date

R.Nuti

06-25-10

Checked / Date

06-25-10

Approved / Date

LY / 06-25-10
