38-00-1353 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 38-00-1353

38-00-1353: DescriptionHeaders & Wire Housings KK 100 PCB Assy RtAn 23 Ckt Tin; CategoryThe connector The connector; File Size56KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

38-00-1353 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	38-00-1353	-	-	View	Buy Now

38-00-1353 Overview

Headers & Wire Housings KK 100 PCB Assy RtAn 23 Ckt Tin

38-00-1353 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks 1 day
Other features	STACKABLE
Board mount options	PCB EDGE LOCKING HOOK
body width	0.185 inch
subject depth	0.31 inch
body length	2.296 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	BRASS/PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	COMPRESSION
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.502 N
Insulation resistance	500000000000 Ω
Insulator color	WHITE
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	40u inch
Rated current (signal)	2.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.133 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	23
UL Flammability Code	94V-0
Evacuation force-minimum value	.834 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/31/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

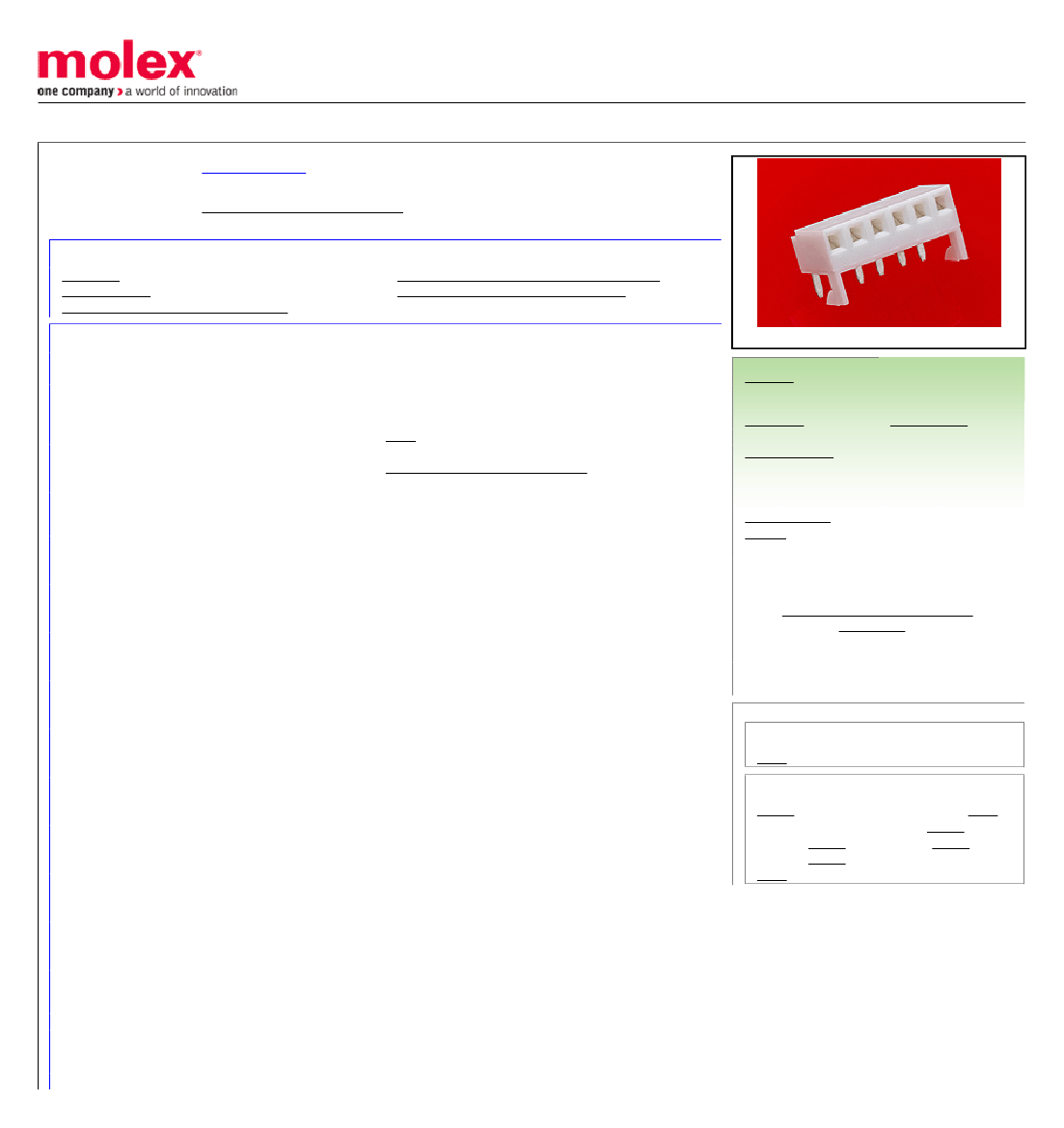

0038001353

Active

KK® Interconnect System - Molex

KK® 254 PC Board Connector, Right Angle, with Cat Ear Terminal, 23 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-10-07 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Grounding to PCB

Voltage - Maximum

Solder Process Data

Duration at Max. Process Temperature (seconds)

Product Specification PS-99020-0088 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Receptacles

4455

Board-to-Board, Signal

KK® Interconnect System - Molex

KK® 254

800753731721

Natural (White)

94V-0

None

Phosphor Bronze

Tin

Nylon

2.464/g

Right Angle

3.30mm

Yes

1.60mm

Tray

2.54mm

1.016µm

Yes

See Product Specification

Through Hole

2.5A

250V

005

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/79/2015 (17

December 2015)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Green Image

Not Relevant

Search Parts in this Series

4455 Series

Mates With

42153 KK® Wire-to-Board Header, 4094

KK® Wire-to-Board Header, 42376 KK®

Header, 42375 KK® Header, 42377 KK®

Header, 42152 KK® Wire-to-Board Header,

4030 KK® Wire-to-Board Header
