39-30-3047: DescriptionHeaders & Wire Housings 4 CKT R/A HEADER; CategoryThe connector The connector; File Size33KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-30-3047 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-30-3047	-	-	View	Buy Now

39-30-3047 Overview

Headers & Wire Housings 4 CKT R/A HEADER

39-30-3047 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	5 weeks
Is Samacsys	N
Other features	MINI-FIT JR
Board mount options	PEG
body width	0.213 inch
subject depth	0.547 inch
body length	1.102 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P4
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	FRICTION RAMP
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	UL,CSA,TUV
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal length	0.138 inch
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-2
Base Number Matches	1

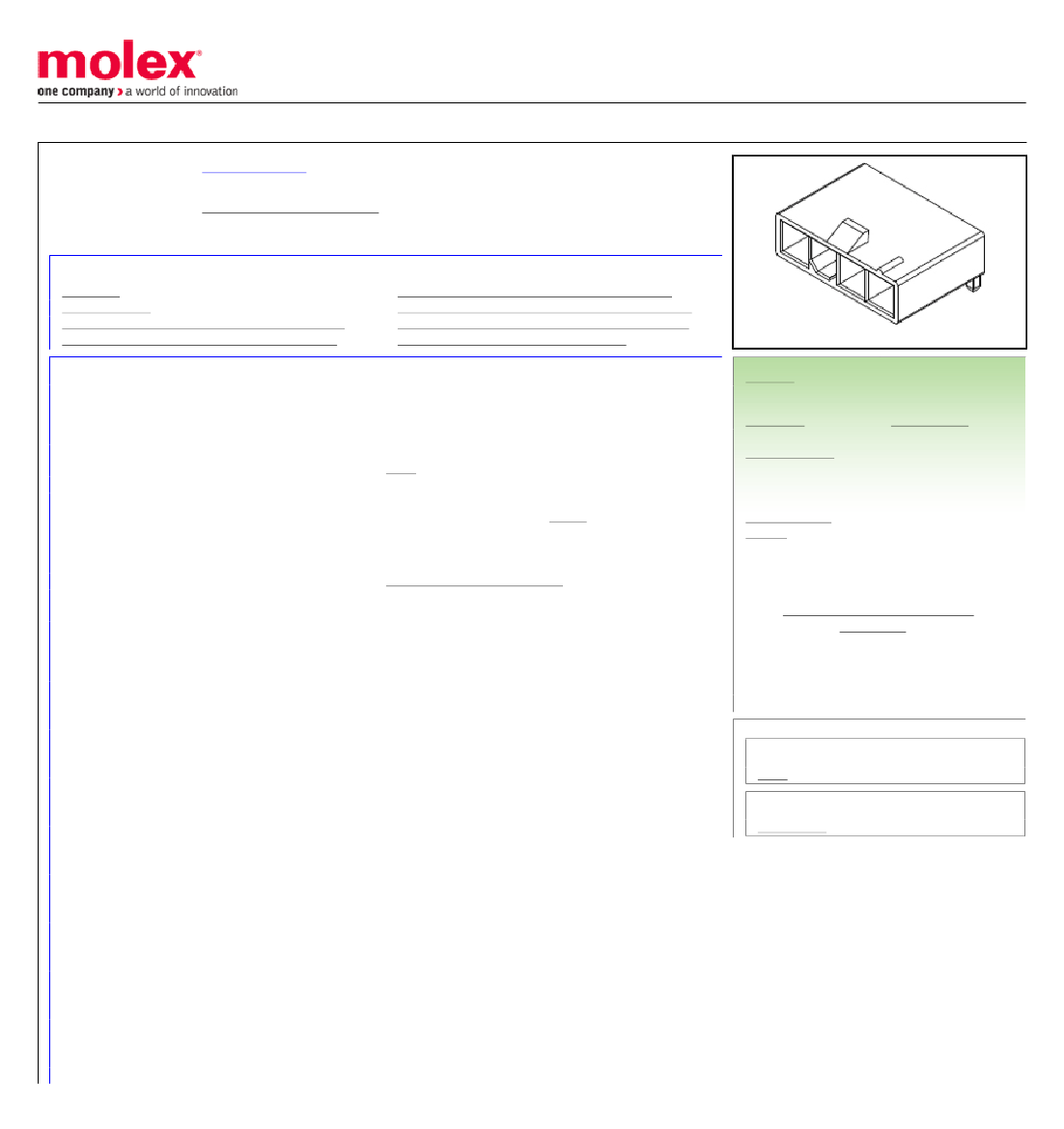

Preview

Download Datasheet

View All

This document was generated on 05/23/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039303047

Active

Mini-Fit Jr. Power Connectors

Mini-Fit Jr. Header, Single Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 4

Circuits, PA Polyamide Nylon 6/6, 94V-2, (Au) Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45750-001-001 (PDF)

Product Specification PS-5556-001-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Product Specification TS-5556-002-001 (PDF)

Application Specification AS-5557-001-001 (PDF)

Packaging Specification PK-5569-002-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

PCB Headers

5569

Power, Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit Plus HCS

Crimp Terminal Crimped to 16 AWG wire., See Molex

Product specification PS-5556-001 for additional current

de-rating information.

Mini-Fit Jr. Power Connectors

Mini-Fit Jr.

800754316040

Natural

94V-2

None

Yes

Brass

Gold

Matte Tin

Nylon

1.430/g

Right Angle

Yes

1.78mm

Bag

4.20mm

0.762µm

2.540µm

Yes

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Capable

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Search Parts in this Series

5569 Series

Mates With

39-01-4040 Receptacle

39-30-3047 Related Products

	39-30-3047	0039303047
Description	Headers & Wire Housings 4 CKT R/A HEADER	Headers & Wire Housings MINI-FIT JR HDR 04P RA 94V-2
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	compliant	compliant
Is Samacsys	N	N
Other features	MINI-FIT JR	SHROUDED, POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Matte Tin (Sn)
Contact point gender	MALE	MALE
Contact material	BRASS	BRASS
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e4	e3
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYAMIDE	POLYAMIDE66
Termination type	SOLDER	SOLDER
Total number of contacts	4	4
UL Flammability Code	94V-2	94V-2
Base Number Matches	1	1
