M80-7110642 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-7110642

M80-7110642: DescriptionPower to the Board 6+2 MALE 90 DEG CONN WITH J/S; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-7110642 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-7110642	-	-	View	Buy Now

M80-7110642 Overview

Power to the Board 6+2 MALE 90 DEG CONN WITH J/S

M80-7110642 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 4
Board mount options	HOLE .055-.063
body width	0.358 inch
body length	1.224 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S6P2
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	25 mΩ
Contact style	HYBRID
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M80-711
Mixed contacts	YES
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

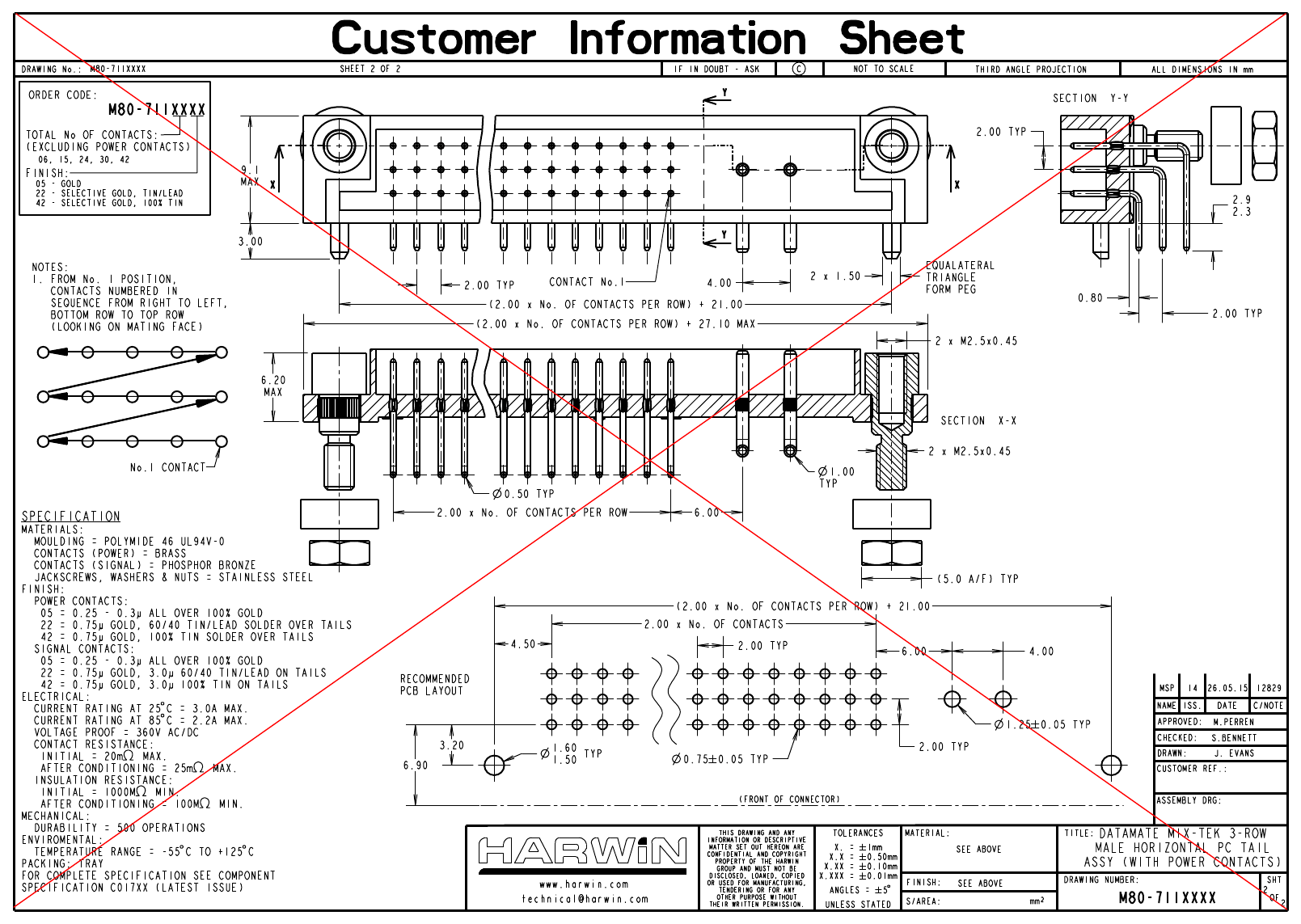

Preview

Download Datasheet

View All

OBSOLETE

M80-7110642 Related Products

	M80-7110642	M80-7111505	M80-7111522	M80-7114222	M80-7110622	M80-7111542	M80-7112422	M80-7114242	M80-7113042
Description	Power to the Board 6+2 MALE 90 DEG CONN WITH J/S	Power to the Board	Power to the Board 15S+2P MALE 90 DEG CONN WITH J/S	Power to the Board 42S+2P MALE 90 DEG CONN WITH J/S	Power to the Board 6S+2P MALE 90 DEG CONN WITH J/S	Power to the Board 15+2 MALE 90 DEG CONN WITH J/S	Power to the Board 24S+2P MALE 90 DEG CONN WITH J/S	Power to the Board 42+2 MALE 90 DEG CONN WITH J/S	Power to the Board 30+2 MALE 90 DEG CONN WITH J/S
Is it lead-free?	Lead free	-	Contains lead	Contains lead	Contains lead	Lead free	Contains lead	Lead free	Lead free
Is it Rohs certified?	conform to	-	incompatible	incompatible	incompatible	conform to	incompatible	conform to	conform to
Maker	Harwin	-	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
Reach Compliance Code	compliant	-	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 4	-	TERMINAL PITCH FOR POWER CONTACTS: 4	TERMINAL PITCH FOR POWER CONTACTS: 4	TERMINAL PITCH FOR POWER CONTACTS: 4	TERMINAL PITCH FOR POWER CONTACTS: 4	TERMINAL PITCH FOR POWER CONTACTS: 4	TERMINAL PITCH FOR POWER CONTACTS: 4	TERMINAL PITCH FOR POWER CONTACTS: 4
Board mount options	HOLE .055-.063	-	HOLE .055-.063	HOLE .055-.063	HOLE .055-.063	HOLE .055-.063	HOLE .055-.063	HOLE .055-.063	HOLE .055-.063
body width	0.358 inch	-	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch
body length	1.224 inch	-	1.461 inch	2.169 inch	1.224 inch	1.461 inch	1.697 inch	2.169 inch	1.854 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S6P2	-	S15P2	S42P2	S6P2	S15P2	S24P2	S42P2	S30P2
Contact to complete cooperation	GOLD (30)	-	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE	-	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	25 mΩ	-	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	HYBRID	-	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
DIN compliance	NO	-	NO	NO	NO	NO	NO	NO	NO
Durability	500 Cycles	-	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	-	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	100000000 Ω	-	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	POLYAMIDE	-	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
JESD-609 code	e3	-	e0	e0	e0	e3	e0	e3	e3
MIL compliance	NO	-	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	M80-711	-	-	M80-711	M80-711	-	-	M80-711	M80-711
Mixed contacts	YES	-	YES	YES	YES	YES	YES	YES	YES
Installation option 1	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	JACKSCREW	-	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW
Installation method	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	-	ONE	ONE	ONE	ONE	ONE	ONE	ONE
Number of rows loaded	3	-	3	3	3	3	3	3	3
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	30u inch	-	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	3 A	-	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	-	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.102 inch	-	0.102 inch	0.102 inch	0.102 inch	0.102 inch	0.102 inch	0.102 inch	0.102 inch
Terminal pitch	2 mm	-	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	-	17	44	8	17	26	44	32
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
