335-10-132-00-160000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 335-10-132-00-160000

335-10-132-00-160000: DescriptionHeaders & Wire Housings 32P .07" L/S PIN HDR; CategoryThe connector The connector; File Size441KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

335-10-132-00-160000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	335-10-132-00-160000	-	-	View	Buy Now

335-10-132-00-160000 Overview

Headers & Wire Housings 32P .07" L/S PIN HDR

335-10-132-00-160000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	LOW PROFILE
body width	0.1 inch
subject depth	0.07 inch
body length	3.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
Insulator color	BLACK
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	335
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
reliability	COMMERCIAL
Terminal length	0.104 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

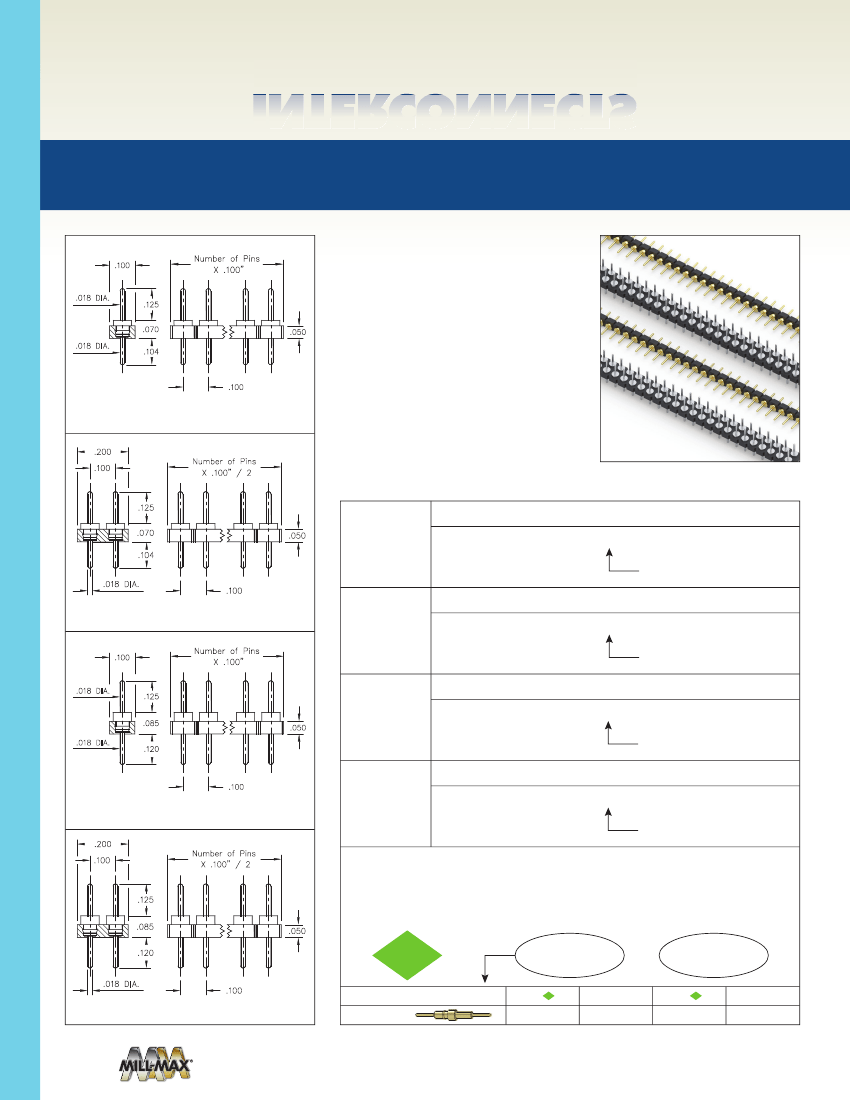

SERIES 335, 364, 435, 464 • .100” GRID (.018” DIA. PINS),

LOW PROFILE • SINGLE AND DOUBLE ROW STRIPS

•

Series 335 and 435 single and double row PCB

.100

Number of Pins

X .100"

interconnects o er a .070” pro le, the lowest

available

.018 DIA.

.125

.070

•

Series 364 and 464 single and double row PCB

.050

interconnects o er .085” pro le above board

.018 DIA.

.104

•

Series 335 and 435 use MM #3516 pins. See

page 212 for details

.100

•

Series 364 and 464 use MM #6458 pins. See

page 213 for details

FIG. 1

.200

.100

Number of Pins

X .100" / 2

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

ORDERING INFORMATION

Series 335...160

.050

.125

.070

.104

.018 DIA.

Single Row .070” Pro le Pin Header

335 XX 1_ _ 00 160000

FIG. 1

Series 435...160

Specify number of pins

.100

01-32

FIG. 2

.100

Double Row .070” Pro le Pin Header

435 XX 2_ _ 00 160000

FIG. 2

Series 364...580

.050

Number of Pins

X .100"

Specify number of pins

04-72

.018 DIA.

.125

.085

Single Row .085” Pro le Pin Header

364 10 1_ _ 00 580000

FIG. 3

Series 464...580

.018 DIA.

.120

Specify number of pins

01-32

Double Row .085” Pro le Pin Header

464 10 2_ _ 00 580000

.100

FIG. 3

.200

FIG. 4

Specify number of pins

04-72

PAGE 78 | INTERCONNECTS

.100

Number of Pins

X .100" / 2

.125

.085

.120

.050

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

µ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.018 DIA.

.100

FIG. 4

SPECIFY PLATING CODE XX=

Pin Plating

200

µ”

Sn/Pb

200

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

335-10-132-00-160000 Related Products

	335-10-132-00-160000	335-10-112-00-160000	335-10-103-00-160000	0464-0-15-15-10-14-04-0	335-40-113-00-160000	05006-BX223AKZHJ	364-10-132-00-580000	CRCW040224R0FKEY	335-10-111-00-160000	335-40-132-00-160000
Description	Headers & Wire Housings 32P .07" L/S PIN HDR	Headers & Wire Housings .070" PROFILE PIN	Headers & Wire Housings 3P SNGL ROW PIN HDR	IC & Component Sockets Recept With Standard Tail	Headers & Wire Housings	Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, BX, -/+15ppm/Cel TC, 0.022uF, 0805,	Headers & Wire Housings 32P SINGLE ROW .085" PROFILE PIN HDR	Fixed Resistor, Metal Glaze/thick Film, 0.063W, 24ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT	Headers & Wire Housings 11P SNGL ROW PIN HDR	Headers & Wire Housings 32P SGL ROW HDR STRP .07" PROFILEP HEADER
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	incompatible	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free	Lead free
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	PFOA, PFOS, ROHS AND REACH COMPLIANT	-	ROHS COMPLIANT	, 0805	ROHS COMPLIANT	CHIP, ROHS COMPLIANT	PFOA, PFOS, ROHS AND REACH COMPLIANT	ROHS COMPLIANT
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	-	LOW PROFILE	-	LOW PROFILE	-	LOW PROFILE	LOW PROFILE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	-	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)	GOLD (10) OVER NICKEL (150)	GOLD OVER NICKEL (50)	-	MATTE TIN (200) OVER NICKEL (150)	-	GOLD (10) OVER NICKEL (150)	-	NOT SPECIFIED	MATTE TIN (200) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	GOLD (10) OVER NICKEL (150)	Gold (Au) - with Nickel (Ni) barrier	-	MATTE TIN (200) OVER NICKEL (150)	-	Gold (Au) - with Nickel (Ni) barrier	-	Gold (Au) - with Nickel (Ni) barrier	-
Contact point gender	MALE	MALE	MALE	-	MALE	-	MALE	-	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	BRASS	-	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	-	NO	-	NO	-	NO	NO
Filter function	NO	NO	NO	-	NO	-	NO	-	NO	NO
IEC compliance	NO	NO	NO	-	NO	-	NO	-	NO	NO
JESD-609 code	e4	e4	e4	-	e3	e0	e4	e3	e4	-
MIL compliance	NO	NO	NO	-	NO	-	NO	-	NO	NO
Manufacturer's serial number	335	335	-	-	335	-	364	CRCW0402	-	335
Mixed contacts	NO	NO	NO	-	NO	-	NO	-	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	-	STRAIGHT	-	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	-	BOARD	-	BOARD	-	BOARD	BOARD
Number of rows loaded	1	1	1	-	1	-	1	-	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	-	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	-	2.54 mm	-	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	-	SOLDER	-	SOLDER	-	SOLDER	SOLDER
Total number of contacts	32	12	3	-	13	-	32	-	11	32
Base Number Matches	1	1	1	1	1	-	1	-	1	1
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
