39507-2504: DescriptionPluggable Terminal Blocks 3.50MM EUROPLUG VERT ME RWE BLK AU 4CKT; CategoryThe connector terminals; File Size28KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39507-2504 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39507-2504	-	-	View	Buy Now

39507-2504 Overview

Pluggable Terminal Blocks 3.50MM EUROPLUG VERT ME RWE BLK AU 4CKT

39507-2504 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	12 weeks
Manufacturer's serial number	39507-2504
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

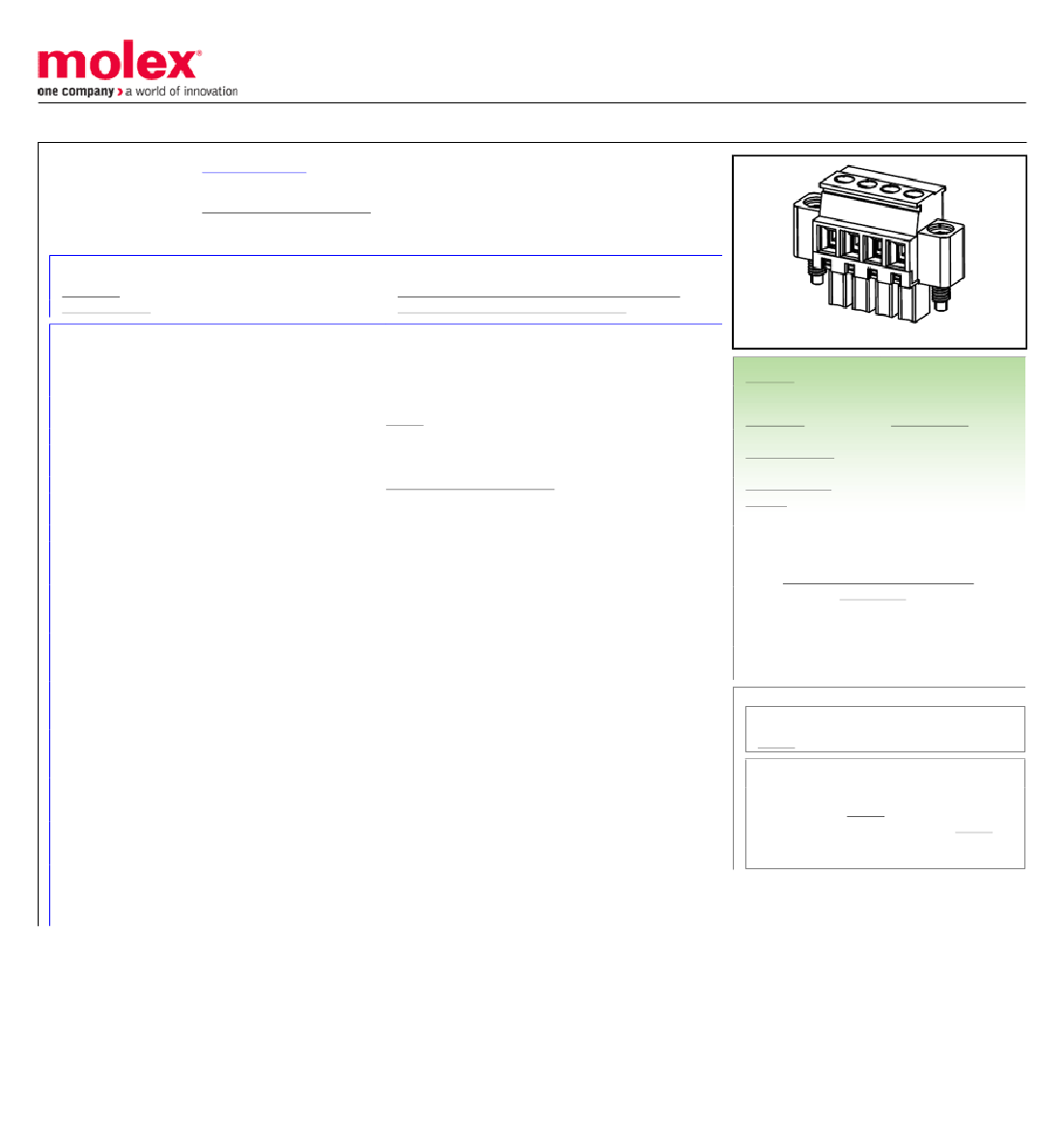

This document was generated on 10/12/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0395072504

Active

Eurostyle™ Terminal Blocks

3.50mm Pitch Eurostyle Vertical Plug, with Retention Screws, Rear Wire Entry, Gold

(Au) Plated, 4 Circuits

Documents:

3D Model

Drawing (PDF)

Agency Certification

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

Product Specification PS-39500-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E48521

Terminal Blocks

39507

N/A

Rear Wire Entry

Plug

Eurostyle™ Terminal Blocks

ESE, Eurostyle Pluggable

Euro Block

822350682640

Horizontal

Yes

Vertical

3.50mm

Yes

-40°C to +105°C

16, 18, 20, 22, 24

0.20-1.31

8.0A

300V

EU ELV

Not Relevant

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Not Reviewed

Search Parts in this Series

39507 Series

Mates With

Most 3.50mm Pitch Industry Standard

PCB Headers, 39505 Vertical PCB Header

with Threaded Retention Inserts, 39506

Horizontal PCB Header with Threaded

Retention Inserts

PS-39500-001-001

SD-39507-002

This document was generated on 10/12/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
