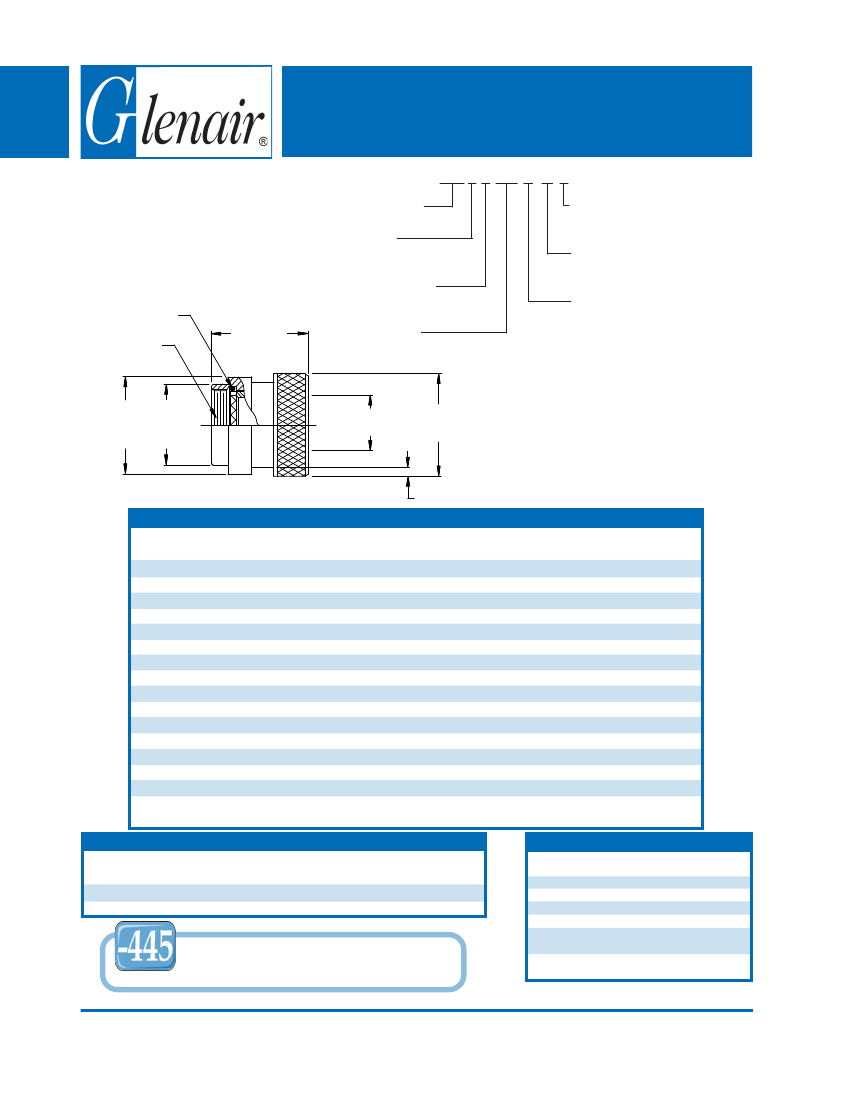

310-006
O-Ring Sealed Shrink Boot Adapter
Straight - Direct Coupling - Low Profile
310 F S 006 M 16 T
Product Series
Connector
Designator
Angle and Profile
S = Straight
Length
(Table IV)
Basic Part No.
Shrink Boot (Table III -
Omit for None)
Shell size
(Tables I & III)
Finish (Table II)
310
A-F-H-L-S
DIRECT
COUPLING
O-Ring
A Thread
(Table I)
C
D
(Table
(Table
I)
III)
CONNECTOR
DESIGNATORS
See inside back cover
fold-out or pages 13 and
14 for unabridged
Tables I and II.
1. See Shrink Boot Reference Information
(page 40).
2. Metric dimensions (mm) are indicated
in parentheses.
F
Cable Entry
(Table III) (Table III)
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
28/29
32
36
40
44
48
E (Table III)
TABLE III: CABLE ENTRY AND SHRINK BOOT
Cable Entry
F
D
E
Min
Max
Max
Min
.250 (6.4)
.688 (17.5)
.044 (1.1)
.657 (16.7)
.355 (9.0)
.803 (20.4)
.044 (1.1)
.774 (19.7)
.491 (12.5)
.938 (23.8)
.818 (20.8)
.044 (1.1)
.565 (14.4)
1.063 (27.0)
1.024 (26.0)
.044 (1.1)
.690 (17.5)
1.238 (31.4)
1.152 (29.3)
.069 (1.8)
.769 (19.5)
1.310 (33.3)
1.243 (31.6)
.069 (1.8)
.844 (21.4)
1.436 (36.5)
1.370 (34.8)
.069 (1.8)
1.560 (39.6)
1.443 (36.7) 1.019 (25.9)
.069 (1.8)
1.686 (42.8)
.069 (1.8)
1.618 (41.1) 1.134 (28.8)
2.062 (52.4)
1.969 (50.0) 1.369 (34.8)
.086 (2.2)
.086 (2.2)
2.312 (58.7)
2.219 (56.4) 1.615 (41.0)
.086 (2.2)
2.562 (65.1)
2.469 (62.7) 1.830 (46.5)
.086 (2.2)
2.812 (71.4)
2.719 (69.1) 2.045 (51.9)
.086 (2.2)
3.062 (77.8)
2.969 (75.4) 2.300 (58.4)
.086 (2.2)
3.312 (84.1)
3.219 (81.8) 2.550 (64.8)
Shrink Boot
770-001S103
770-001S103
770-001S104
770-001S104
770-001S106
770-001S106
770-001S106
770-001S107
770-001S108
770-001S108*
770-001S109*
Consult Factory
Overmolded
Overmolded
Overmolded
*Equivalent boot may be supplied in lieu of stated part number.
Shell
Sizes
08-25
28-48
TABLE IV: LENGTH
Length Max - Connector Designator
A
H
L&S
F
.540 (13.7) .625 (15.9)
.688 (17.5)
.750 (19.1)
.702 (17.8)
---
---
---
Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.
GLENAIR
SYMBOL
B
C
G
M
NF
TABLE II - STANDARD FINISHES
FINISH
Cadmium Plate, Olive Drab
Anodize, Black
Hard Coat, Anodic
Electroless Nickel
Cadmium Plate, Olive Drab Over
Electroless Nickel
See Back Cover for Complete Finish Information
and Additional Finish Options
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 310 - Page 6
REV. 13 JUNE 2010
