NOTE:
REFERENCE STANDARD IEC60169-11
I.
ELECTRICAL PERFORMANCE -
NOMINAL IMPEDANCE
FREQUENCY RANGE
VSWR
INSERTION LOSS
PIM
INSULATION RESISTANCE
D.W.V
CONDUCTOR RESISTANCE
II. MECHANICAL PERFORMANCE
RETENTION
: 4 N MIN.
INNER CONDUCTOR TORQUE : 0.2 N-m
MATING CYCLES
: 500 MIN.
III.MATERIAL AND PLATING -
INNER CONDUCTOR : SPRING COPPER ALLOY, PLATING = Ag (5µm MIN.)
OUTER CONDUCTOR : BRASS, PLATING = COPPER-TIN-ZINC (2µm MIN.)
INSULATOR
: PTFE
IV. ENVIRONMENTAL -
TEMP. RANGE
WEATHER STANDARD
THERMAL SHOCK
VIBRATION
SHOCK
WATERPROOFING STANDARD
V.
ROHS COMPLIANT
:
:
:
:
:
:
-40°C TO +85°C
IEC 60068 40/ 85/ 21
MIL-STD 202, METHOD 107, CONDITION B
MIL-STD 202, METHOD 204, CONDITION B
MIL-STD 202, METHOD 213, CONDITION I
IP 67
1.024 [26.00]
0.748
[19.00]
TYP.
:
:
:
:
:
:
:
:
50
#
2
DC-3.0 GHz
1.08 MAX.
0.05 dB MAX. ( @ 3.0 GHz)
-165 dBc MAX. (2x43dBm)
5000 M
MIN.
2500 VRMS
OUTER CONDUCTOR 0.5 m
MAX.
INNER CONDUCTOR 1.0 m
MAX.
332101
REVISIONS
REV
DRAWING NO.
THIRD ANGLE PROJ.
A
RELEASE TO MFG.
DESCRIPTION
03-Oct-13
DATE
ECO
--
AAP/BG
APPR
SCALE
1.000
0.709 [18.00]
M20x1-6g
0.118 [3.00]
0.098
[2.50]
0.748
[19.00]
TYP.
0.0197 [0.50]
4.1/9.5
FEMALE
INTERFACE
GROUNDING
SURFACE
0.126
[3.20]
0.236
[6.00]
90 $
B
B
1.398
[35.50]
0.186-0.198
[4.73-5.03]
(CONTACT)
0.866
[22.00]
SECTION B-B
SCALE 5.000
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015 (0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
SEE NOTES
REFERENCE
A ARUN PRABU
A ARUN PRABU
B.C. GLEISSNER
12-Sep-13
12-Sep-13
03-Oct-13
DATE
DATE
DATE
TITLE
ENGINEER
APPROVED
CAD FILE

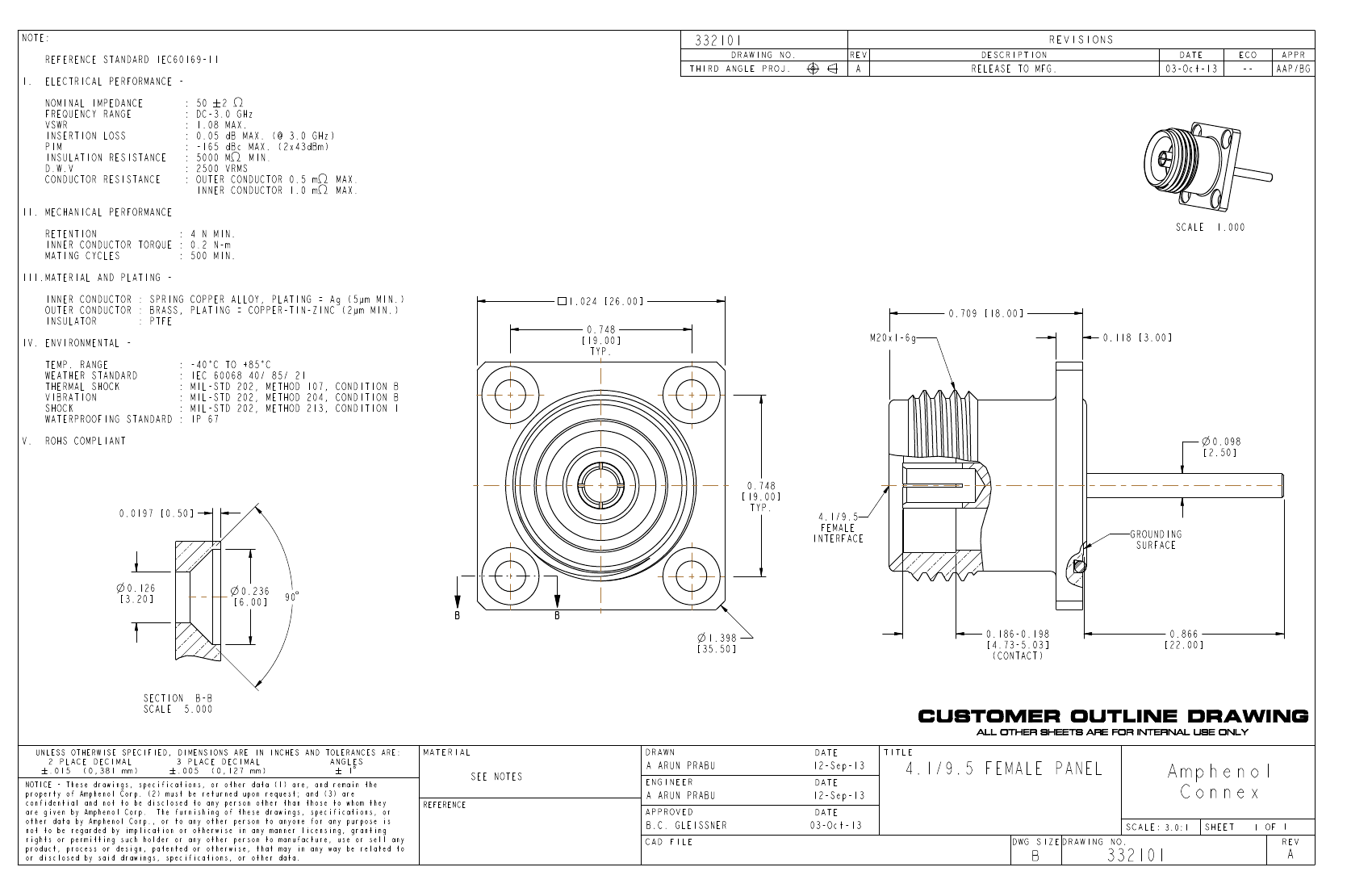

4.1/9.5 FEMALE PANEL
Amphenol
Connex
SCALE: 3.0:1
SHEET
1 OF 1
REV
DWG SIZE DRAWING NO.
B
332101
A
