Generated Part Number
PX-20LCC
R
Part Number Builder
E 140125
PX
Series
20
Number of
Contact
LCC
Body
Type

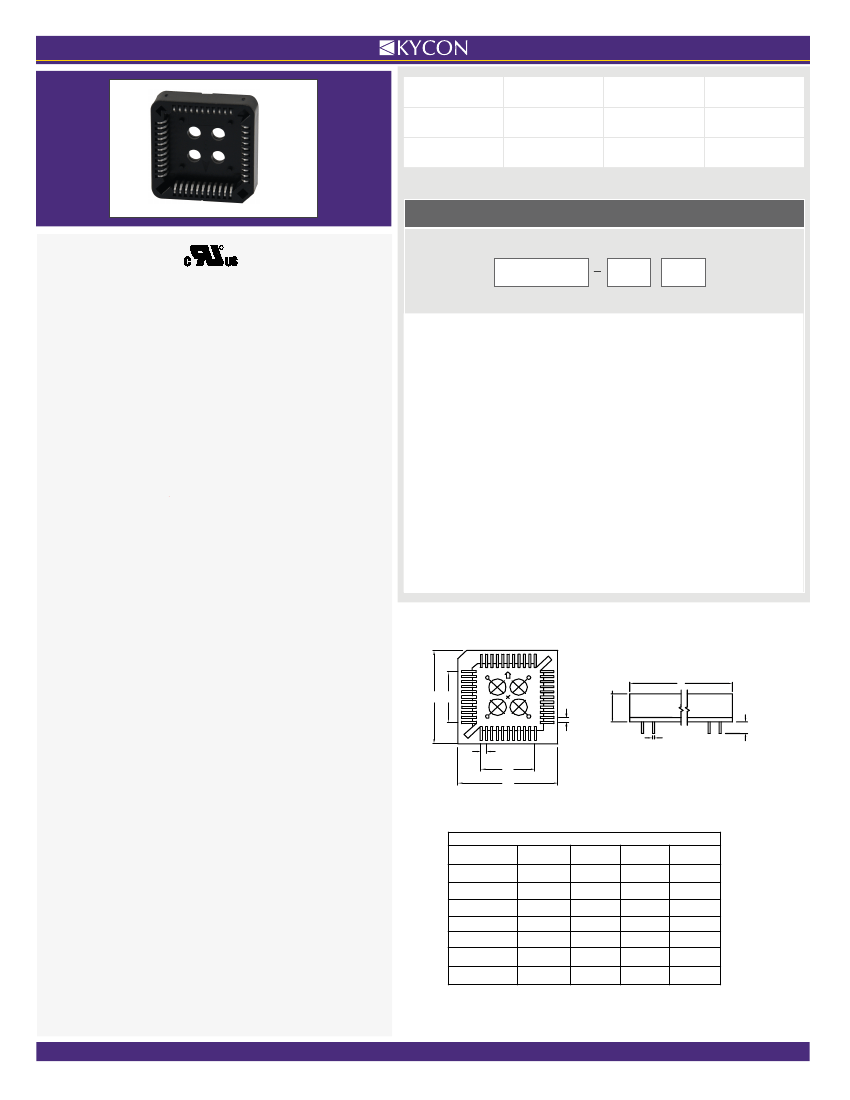

CHIP CARRIER SOCKETS:
PX Series
Through Hole PLCC Socket
Product Features
Series
PX
-
Through Hole PLCC Socket
Number of
Contacts
20
- Contacts
28
- Contacts
32
- Contacts
44
- Contacts
52
- Contacts
68
- Contacts
84
- Contacts
Applications Include All Electronic PC Boards Requiring
theConversion of a .050" Pitch Chip Carrier to a .100" x .100"
Grid, Through Board Application
Accepts Molded Plastic Chip Carriers Conforming to JEDEC
Specification MO-047 for Square and MO-052 for
RectangularConfiguration
Visual and Mechanical Polarization for PXLCC Insertion
Closed Bottom for Excellent Protection from Solder Wicking
Into Contact Area
Molded-In Stand-Offs Allow Easy Removal of Flux Residue
Extraction Tool Slots*
Open Top Design for Cooler Running Chip Carrier
Automatic Insertion Machine Compatible
CSA/NRTL Certified File No. LR78160
UL File No. E140125
Body Type
LCC
- PBT
Contact Kycon for other Options
Performance Specifications
Materials and Finish
Body
PBT Thermoplastic, 30% Glass Filled,
UL94V-0 Rated, Black Color
Contact Material
Phosphor Bronze, 0.25mm Thickness
Contact Finish
Tin Plated over Nickel
Dimensions in mm
PX-xxLCC
Series
8.00±0.2
A
B
D
1.27
0.5
3.35±0.2
1.27
C
A
Electrical Characteristics
Rated Voltage
12Vac
Contact Resistance
15 milliohms Max. After Test
Dielectric Withstanding Voltage
1000V AC Min. for 1 Minute
Insulation Resistance
10000 Megohms Min.
Temperature Rating
-40°C to +75°C
Dimensions in mm
Number of
Contacts
A±0.25
15.50
18.05
18.05
23.50
25.88
31.66
36.66
B±0.25
15.50
18.05
20.60
23.50
25.88
31.66
36.66
20
28
32
44
52
68
84
C±0.1
5.08
7.62
7.62
12.70
15.24
20.32
25.40
D±0.1
5.08
7.62
10.16
12.70
15.24
20.32
25.40
* PXLCC Extraction Tool P/N TLPX-PXLCC
