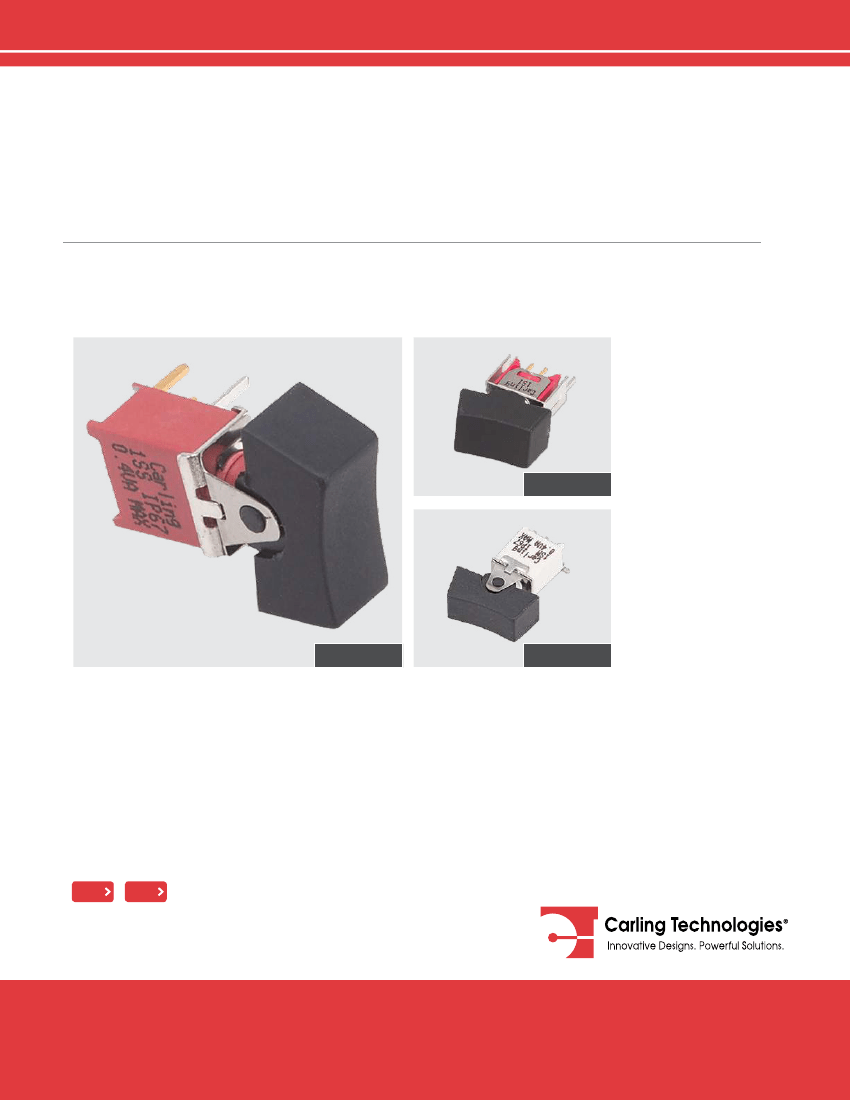

1SS/1S1/1SM
1S-Series
SUB-MINIATURE ROCKERS
The 1S family of sub-miniature rocker switches is composed of three switch series; the
1S1-Series
sub-miniature
rocker switch, the
1SS-Series
sealed sub-miniature rocker switch, and the
1SM-Series
surface mount sealed sub-
miniature rocker switch. All of these series offer a variety of ratings, circuits, contact materials, terminal platings,
and actuator colors.
1S1-Series
1SS-Series
1SM-Series
Product Highlights:
IP67 Sealing
5 Circuit Configurations
3 Rocker Styles to choose from
Dry-Circuit thru 3A 125VAC Rating
Snap-in, Solder Lug or PC Terminations
Typical Applications:
Instrumentation
Test Equipment
Telecommunications
Networking
Handheld Appliances
Resources:
Download 3D CAD Files
IGS
STP
Carling Technologies, Inc.
60 Johnson Avenue, Plainville, CT
06062
Email:
sales
@
carlingtech.com
Application Support:
team2
@
carlingtech.com
Phone:
860.793.9281
Fax:
860.793.9231
www.carlingtech.com
2 |

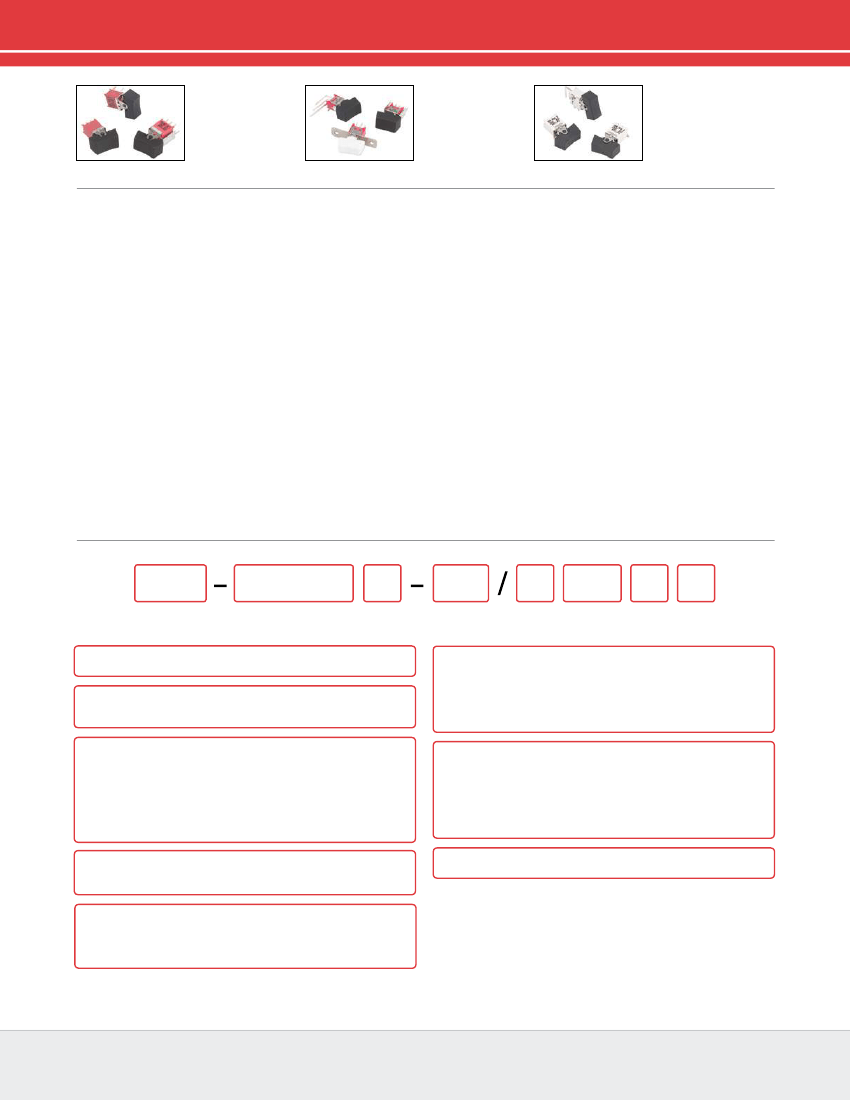

1S-Series - General Specifications, 1SS Ordering Scheme
1SS-Series
Sealed
Sub-Miniature
Rocker Switch
1S1-Series
Sub-Miniature
Rocker Switch
1SM-Series
Sealed Surface Mount
Sub-Miniature
Rocker Switch
Electrical
Contact Rating
Electrical Life
Contact Resistance
Insulation Resistance
Dielectric Strength
refer to ordering scheme
1S1-Series:
30,000 make & break
cycles @ full load
1SS & 1SM-Series:
50,000 make &
break cycles @ full load
20 mΩ max. initial @ 2-4 VDC
100mA for both silver & gold plated
contacts
1000 MΩ min.
1500 Volts RMS @ sea level
Material
Case
Rocker
Bushing
Physical
Operating Temperature
Index of Protection
Solder Heat Resistance
Actuator Travel
-30°C to +85°C
1SS & 1SM-Series: IP67
MIL-STD-202, Method 210
25°
Housing
Switch Support
Terminal Seal
all UL94 V-0
1S1-Series:
Dially phthalate (DAP)
1SS-Series:
Glass filled nylon 6/6,
flame retardant, heat stabilized
1SM-Series:
Glass filled nylon 4/6,
flame retardant, heat stabilized
1S1-Series:
Nylon (UL 94V-0)
1SS & 1SM-Series:
Nylon, black
standard, internal o-ring sealed
1S1-Series:
Brass, nickel plated
1SS-Series:
Glass filled nylon 6/6,
flame retardant, heat stabilized
(UL 94V-0)
1SM-Series:
Glass filled nylon 4/6,
flame retardant, heat stabilized
(UL 94V-0)
1S1-Series:
Stainless Steel
1S1 & 1SM-Series:
Brass, tin plated
Epoxy
1SS
1
Series
WMSP 1
2
Poles
3
Circuit
R2
4
Actuator Style
2 M2 G E
5
Actuator
Color
6
Termination
7
Contacts
8
Seal
1 SERIES
1SS
Sealed Sub-Miniature Rocker Switch
2 POLES
WMSP
Single pole - uses terminals 1, 2 & 3
WMDP
Double pole - uses terminals 1, 2, 3, 4, 5 & 6
3 CIRCUIT
( ) - momentary
Position: 1
2-3, 5-6
1
ON
2
ON
3
ON
4
(ON)
5
ON
6 TERMINATION
M1
Solder Lug
M2
PCB
M6
PC Mount, 90˚ horizontal
M7
PC Mount, 90˚ vertical
VS2
PC Mount, U bracket
See page 6-7 for dimensional specifications.
M61
M71
VS21
Snap-In, U bracket,
90˚ horizontal
Snap-In, U bracket,
90˚ horizontal
Snap-In, U bracket
2
Connected Terminals
NONE
NONE
OFF
OFF
OFF
3
2-1, 5-4
ON
(ON)
ON
(ON)
(ON)
7 CONTACTS / TERMINALS
Contact Material Terminal Plating Rating
Approvals
G
silver
1
gold over silver
3A 125VAC or 28VDC,
IP67
1.5A 250VAC
K
gold
2,5
tin
4
0.4VA max 20V max
(AC/DC)
IP67
P
silver
1,6
tin
4
3A 125VAC or 28VDC,
IP67
1.5A 250VAC
R
gold
2
gold
2,3
0.4VA max 20V max
(AC/DC)
IP67
8 EPOXY SEAL
E
Epoxy Seal
4 ACTUATOR STYLE
R1
Small Rocker
R2
Narrow Black Rocker
5 ACTUATOR COLOR
1
White
2
Black
3
Red
Other colors available, consult factory.
0
without Epoxy Seal
Notes:
Tin option not available with M1 terminal.
1
Movable contact and terminal platings: silver over copper alloy
2
Movable contact platings: gold over nickel over copper alloy
3
Terminal platings: gold over nickel over copper alloy
4
Terminal platings: tin over copper alloy
5
Terminal contact platings: gold over nickel alloy
6
Terminal contact platings: silver over nickel alloy
*Manufacturer reserves the right to change product specification without prior notice.
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
1S-Series - 1S1 Ordering Scheme, 1SM Ordering Scheme
| 3
1S1
1
Series
MSP 1
2
Poles
3
Circuit
R2
4
Actuator Style
2 M6 Q E
5
Actuator
Color
6
Termination
7
Contacts
8
Seal
1 SERIES
1S1
Sub-Miniature Rocker Switch
2 POLES
MSP
Single pole - uses terminals 1, 2 & 3
MDP
Double pole - uses terminals 1, 2, 3, 4, 5 & 6
3 CIRCUIT
( ) - momentary
Position:
1
2-3, 5-6
1
ON
2
ON
3
ON
4
(ON)
5
ON
4 ACTUATOR STYLE
R1
Small Rocker
R2
Narrow Black Rocker
R3
Medium Rocker
5 ACTUATOR COLOR
1
White
2
Black
3
Red
Other colors available, consult factory.
6 TERMINATION
M1
Solder Lug
M2
PCB
M6
PC Mount, 90˚ horizontal
M7
PC Mount, 90˚ vertical
VS2
PC Mount, U bracket
VS3
PC Mount, U bracket
See page 8-9 for dimensional specifications.
M61
M71
VS21
Snap-In, U bracket,
90˚ horizontal
Snap-In, U bracket,
90˚ horizontal
Snap-In, U bracket
2
Connected Terminals
NONE
NONE
OFF
OFF
OFF
3
2-1, 5-4
ON
(ON)
ON
(ON)
(ON)
7 CONTACTS / TERMINALS
Contact Material Terminal Plating Rating
Approvals
G
silver
1
gold over silver
3A 125VAC or 28VDC,
,
1.5A 250VAC
K
gold
2
tin
3
0.4VA max 20V max
(AC/DC)
N/A
P
silver
1
tin
3
3A 125VAC or 28VDC,
,
1.5A 250VAC
Q
silver
1
silver
1
3A 125VAC or 28VDC,
,
1.5A 250VAC
R
gold
2
gold
2
0.4VA max 20V max
(AC/DC)
N/A
8 EPOXY SEAL
E
Epoxy Seal
0
without Epoxy Seal
Notes:
Tin option available with M1 termination.
1
Movable contact and terminal platings: silver over copper alloy
2
Movable contact and terminal platings: gold over nickel over copper alloy
3
Terminal platings: tin over nickel over copper alloy
1SM
1
Series
WMSP 1
2
Poles
3
Circuit
R2
4
Actuator Style
M2 G E
5
Termination
6
Contacts
7
Seal
8
Packaging
1 SERIES
1SM
Sealed Surface Mount Sub-Miniature Rocker Switch
2 POLES
WMSP
Single pole - uses terminals 1, 2 & 3
3 CIRCUIT
( ) - momentary
Position:
1
2-3
1
ON
2
ON
3
ON
4
(ON)
5
ON
2
Connected Terminals
NONE
NONE
OFF
OFF
OFF
3
2-1
ON
(ON)
ON
(ON)
(ON)
6 CONTACTS / TERMINALS
Contact Material Terminal Plating Rating
Approvals
G
silver
1
gold over silver
3A 125VAC or 28VDC,
IP67
1.5A 250VAC
K
gold
2,5
tin
4
0.4VA max 20V max
(AC/DC)
IP67
P
silver
1,6
tin
4
3A 125VAC or 28VDC,
IP67
1.5A 250VAC
Q
silver
1
silver
1
3A 125VAC or 28VDC,
IP67
1.5A 250VAC
R
gold
2
gold
3
0.4VA max 20V max
(AC/DC)
IP67
7 EPOXY SEAL
E
Epoxy Seal
8 PACKAGING
T/R
tape reel - 500 pieces per reel
0
without Epoxy Seal
4 ACTUATOR STYLE
R2
Narrow Black Rocker
5 TERMINATION
M6
Surface Mount, 90° flat - horizontal / side
S6
Surface Mount, 90° horizontal / back
S7
Surface Mount, 90° vertical
See page 10 for dimensional specifications.
Switches are bulk packed, unless T/R is specified at the end of the part number.
Notes:
Tin option not available with M1 termination.
1
Movable contact and terminal platings: silver over copper alloy
2
Movable contact platings: gold over nickel over copper alloy
3
Terminal platings: gold over nickel over copper alloy
4
Terminal platings: tin over copper alloy
5
Terminal contact platings: gold over nickel alloy
6
Terminal contact platings: silver over nickel alloy
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
4 |

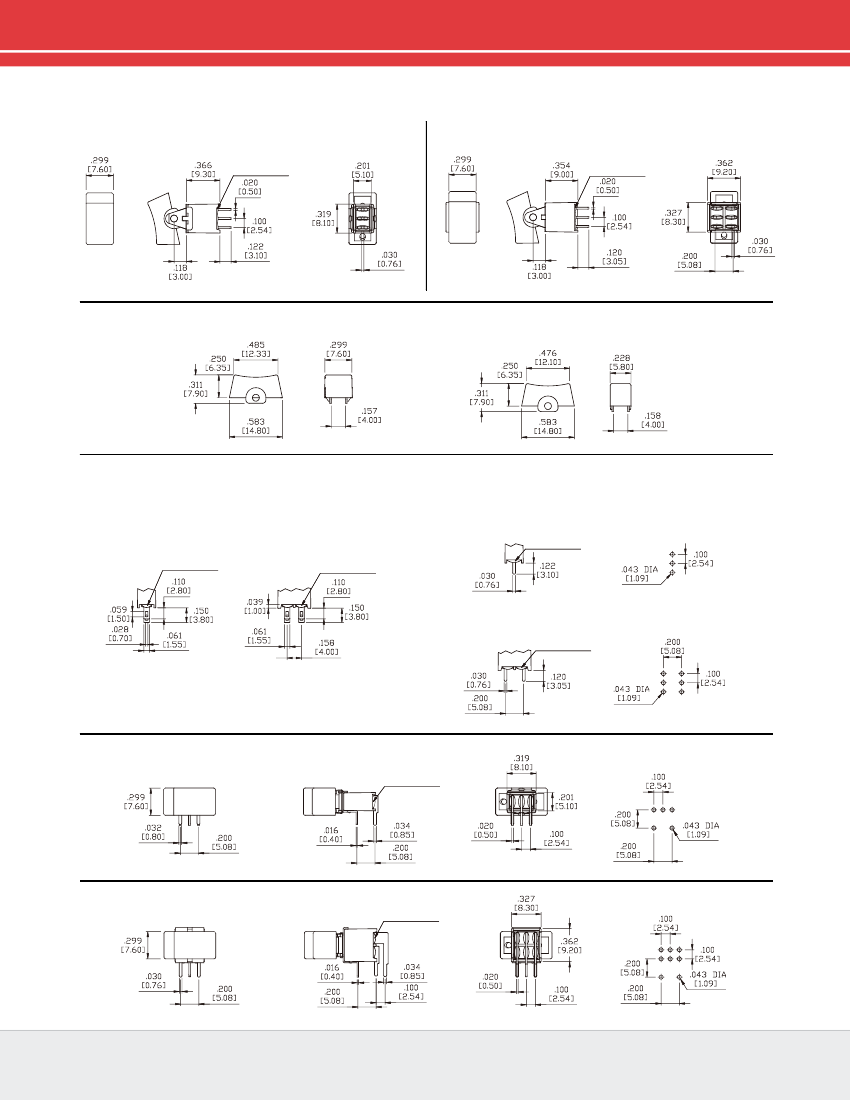

1S-Series - 1SS-Series Dimensional Specifications
1SS-Series Dimensional Specifications: in. [mm]
Single Pole
EPOXY SEAL
Double Pole
EPOXY SEAL
3
2
1
6
5
4
3
2
1
R1
Actuator Options
R2
Termination Options
M1
STD. Solder Lug
SP
DP
M2
PC Thru-Hole
SP
EPOXY SEAL
P.C.MOUNTING
EPOXY SEAL
EPOXY SEAL
DP
EPOXY SEAL
THK .020 [0.50]
THK .020 [0.50]
M6
Single Pole
EPOXY SEAL
1 2 3
P.C.MOUNTING
M6
Double Pole
EPOXY SEAL
4 5 6
P.C.MOUNTING
1 2 3
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com

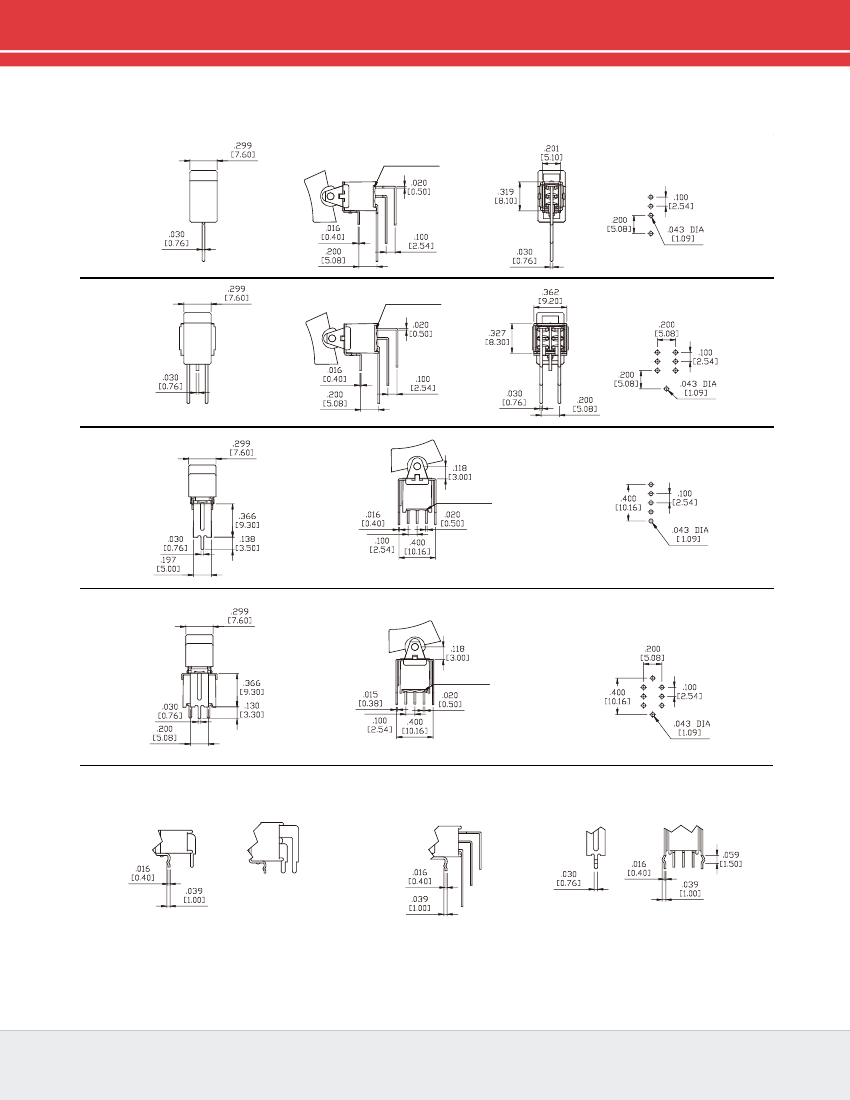

1S-Series - 1SS-Series Dimensional Specifications
| 5
1SS-Series Dimensional Specifications: in. [mm]
M7
Single Pole
Termination Options
EPOXY SEAL
P.C.MOUNTING
3
2
1
M7
Double Pole
EPOXY SEAL
P.C.MOUNTING
6
5
4
3
2
1
VS2
Single Pole
P.C.MOUNTING
EPOXY SEAL
1 2 3
VS2
Double Pole
P.C.MOUNTING
EPOXY SEAL
4 5 6
Snap-In Termination Options
M61
M71
VS21
* PC Mounting for M61, M71, VS21 refer to M6, M7, VS2 respectively.
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
