KLDX-0202-B

Description
DC Power Connectors 2.5mm PCB JACK POWER JACK
CategoryThe connector    The connector
File Size881KB,1 Pages
ManufacturerKycon
Environmental Compliance
Download Datasheet Parametric Compare View All

KLDX-0202-B Online Shopping

Suppliers Part Number Price MOQ In stock
KLDX-0202-B - - View Buy Now

KLDX-0202-B Overview

DC Power Connectors 2.5mm PCB JACK POWER JACK

KLDX-0202-B Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Body/casing typeJACK
Connector typeCIRCULAR DC POWER CONENCTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
DIN complianceNO
IEC complianceNO
MIL complianceNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Pin diameter2.5 mm
Rated current (power)3.5 A
Rated voltage24 V
Termination typeSOLDER
Base Number Matches1
2D Drawing
Solder Profile
Certificate of Origin
IGES
CofC RoHS Compliant
Check Stock
STEP
CofC REACH Compliant
Request a Sample
3D PDF
UL Plastic File
Send Us An Email
Generated Part Number
KLDX-0202-AP-LT
R
Part Number Builder
LR78160
E 140125
KLDX-0202
A
Diameter
P
Peg
LT
Type

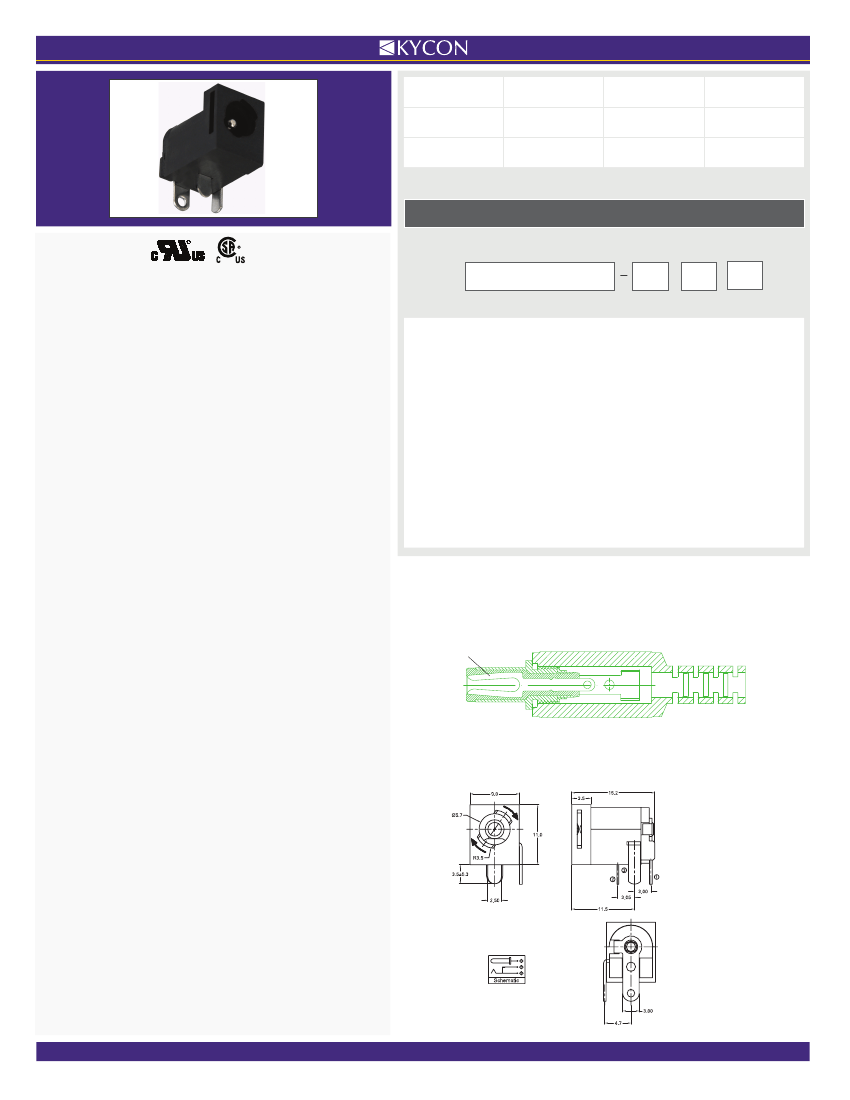

DC POWER CONNECTORS: KLDX Series
Locking Type PCB Mount DC Power Jack
Series
Product Features
2.0mm and 2.5mm
Built-In DC On/Off Switch
Locking Feature (Will Lock with Kycon Locking Plug)
To Be Used with Locking/Non-Locking Tuning Fork
Style Plug
Laptop and Palm Computers, Portable Modems, Radar
Detectors, and Other Portable Device Applications
CSA/NRTL Certified File No. LR78160
UL File No. E140125
Series
KLDX-0202
- PCB Mount DC Power Jack Locking Type
Diameter
A
- 2.0mm Center Pin Diameter
B
- 2.5mm Center Pin Diameter
Peg
Blank
- without Peg
P
- with Peg
Type
LT
- Locking Type
Contact Kycon For Other Options
Recommended to be used with Kycon locking plug (tuning fork design):
KLDX-PA-0202-A-LT, KLDX-PA-0202-B-LT
Performance Specifications
Materials and Finish
Body:
PBT Thermoplastic, UL94V-0 Rated, Color Black
Center Pin:
Brass, Nickel Plated
Contact #1:
Brass, Tin Plated
Contact #2:
Phosphor Bronze, Tin Plated
Contact #3:
Brass, Tin Plated
If used with non-locking plug, tuning fork design
is required. See picture.
Tuning fork contact
Electrical Characteristics
Rated Current:
3.5A
Rated Voltage:
24V DC
Insulation Resistance:
50 Megohms Min. at 100 or 200V DC for 1 Minute
KLDX-0202 Series
Dimensions in mm
KLDX-0202-x-LT
Mechanical Characteristics
Durability Test:
5000 Cycles
Insertion Force:
0.3kg - 2.0kg
Extraction Force:
0.3kg - 2.0kg
Operating Temperature:
-25˚C to +85˚C
Phone: +1.408.494.0330
l
Fax: +1.408.494.0325
l
WWW.KYCON.COM
l
2013
