87263-2003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87263-2003

87263-2003: DescriptionHeaders & Wire Housings MGrid B/E Rec W/Ca p/Pg .38AuLF 20Ckt; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87263-2003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87263-2003	-	-	View	Buy Now

87263-2003 Overview

Headers & Wire Housings MGrid B/E Rec W/Ca p/Pg .38AuLF 20Ckt

87263-2003 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Is Samacsys	N
Other features	ROHS,ELV COMPLIANT W/TUBE PKG
Board mount options	PEG
body width	0.165 inch
subject depth	0.11 inch
body length	0.787 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

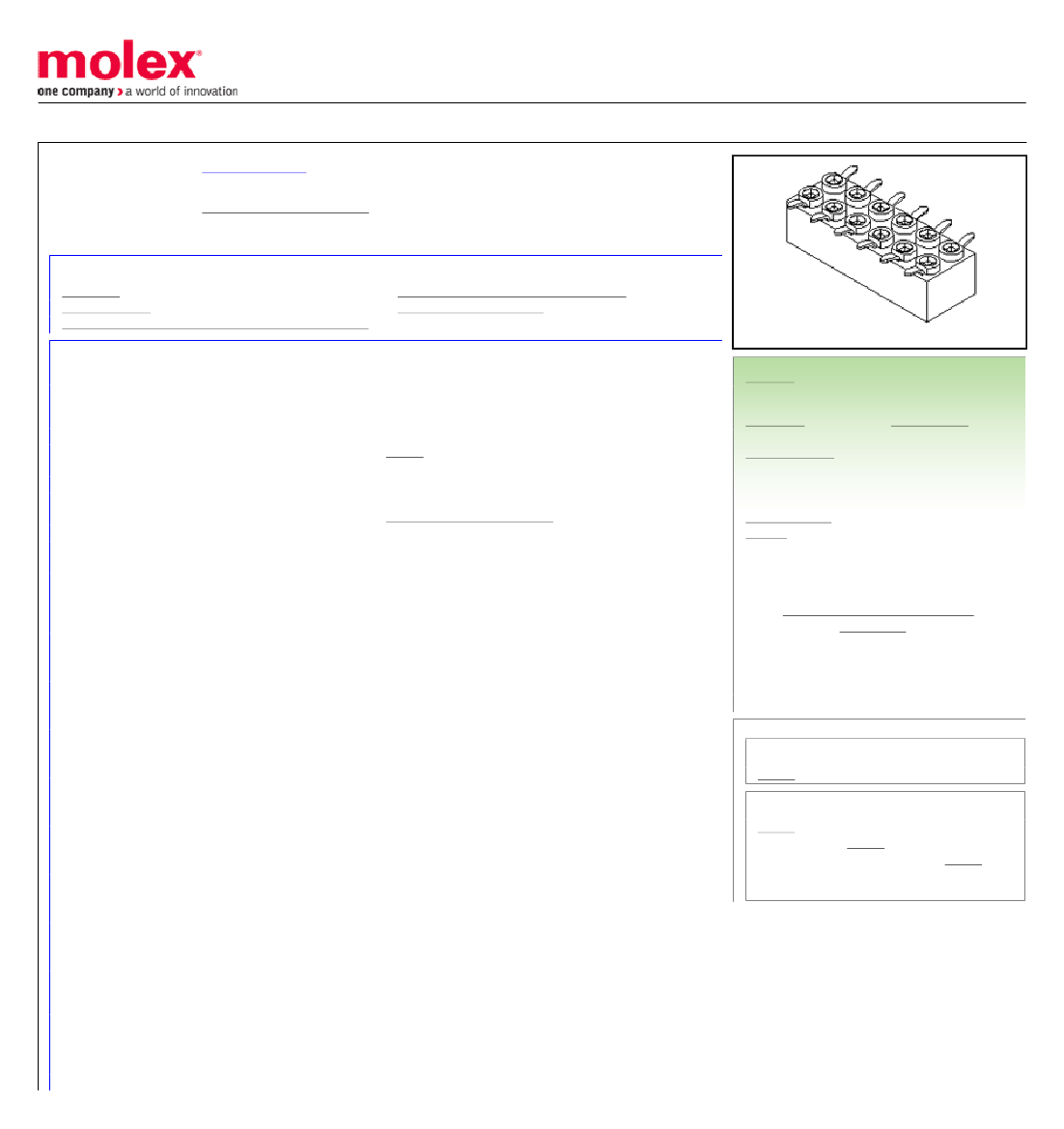

Preview

Download Datasheet

View All

This document was generated on 02/27/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0872632003

Active

Milli-Grid Connector System

2.00mm Pitch Milli-Grid Receptacle, Surface Mount, Bottom Entry, 0.38µm Gold (Au)

Selective, 20 Circuits, with Pick-and-Place Cap, Tube, Lead-Free

Documents:

3D Model

Drawing (PDF)

Packaging Specification PK-87263-0001-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Data Load Status

Made From

Overview

Product Literature Order No

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Capable

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Polarized to Mating Part

Polarized to PCB

Robotic Placement

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Solder Process Data

Duration at Max. Process Temperature (seconds)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

LR19980

E29179

PCB Receptacles

87263

Board-to-Board, Signal

Data Bulk Loaded from Saqqara

0872632021, 0873611024, 0874460001

Milli-Grid Connector System

987650-1991

Milli-Grid

822348479214

Black

94V-0

None

Gold

Tin

High Temperature Thermoplastic

0.442/g

Bottom Entry

Yes

None

Tube

2.00mm

0.381µm

Yes

Pick and Place Cap

-55°C to +105°C

Surface Mount

1.0A

125V

014

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

87263 Series

Mates With

87759 Vertical, Surface Mount, Stackable

PCB Headers, 87760 Right Angle, Through

Hole, Stackable PCB Headers, 87758

Vertical, Through Hole, Stackable PCB

Headers
