33468-0001 (Cut Strip) datasheet, PDF

Datasheet> All Categories > The connector> 33468-0001 (Cut Strip)

33468-0001 (Cut Strip): DescriptionAutomotive Connectors MX64 F TERM 22 AWG B WIND Cut Strip-100; CategoryThe connector; File Size26KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

33468-0001 (Cut Strip) Overview

Automotive Connectors MX64 F TERM 22 AWG B WIND Cut Strip-100

33468-0001 (Cut Strip) Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Automotive Connectors
RoHS	Details
Product	Terminals
Number of Positions	-
Gender	Female
Mounting Style	Wire
Termination Style	Crimp
Contact Plating	Tin
Wire Gauge Range	22 AWG
Packaging	Cut Tape
Contact Type	Receptacle
Current Rating	11.3 A
Voltage Rating	14 V
Contact Material	Copper
Factory Pack Quantity	100
Unit Weight	0.012804 oz

Preview

Download Datasheet

View All

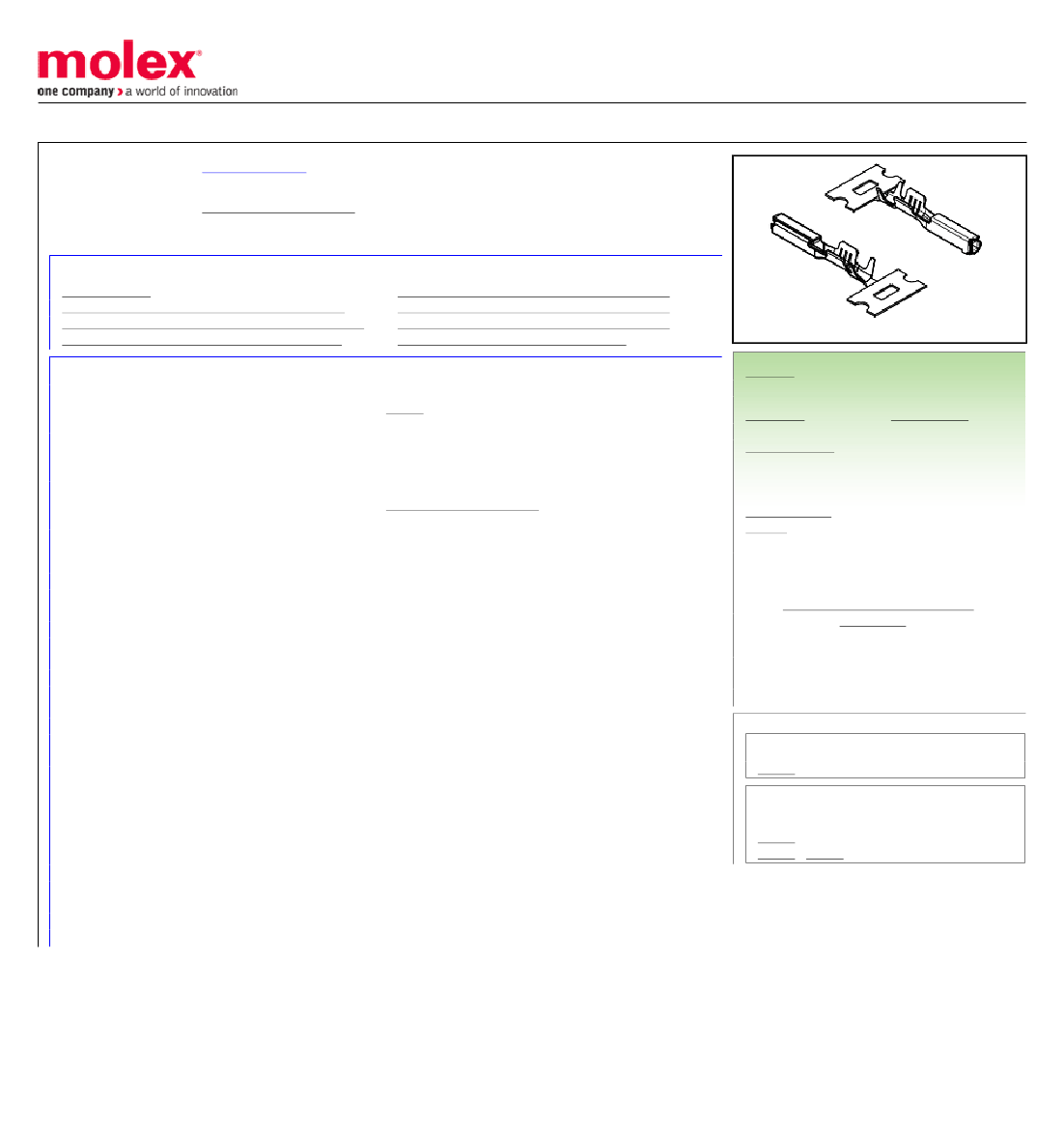

This document was generated on 05/16/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0334680001

Active

MX64 Sealed Connectors

2.54mm Pitch MX64 Terminal, Tin (Sn) Plating, 22 AWG, Right Reel Payoff, Also used

with MX123 Female Receptacle Housing

Documents:

Drawing (PDF)

Product Specification PS-33468-001-001 (PDF)

Application Specification AS-33468-001-001 (PDF)

Packaging Specification 313025040-000 (PDF)

General

Product Family

Series

Application

Comments

Packaging Specification PK-30907-759 (PDF)

Packaging Specification PK-31300-516 (PDF)

Packaging Specification PK-31302-480 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Relevant

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Compliant

Not Contained

Crimp Quality Equipment

Overview

Product Name

UPC

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Packaging Type

Plating min - Mating

Plating min - Termination

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Crimp Terminals

33468

Power

Right Reel Payoff <br><br>For automatic and semi-

automatic crimping, use Left Reel Payoff terminals. See

Sales Drawing for Left Reel Payoff Part Numbers.

Yes

MX64 Sealed Connectors

MX123, MX64

822348038015

Female

Copper

Tin

0.220/g

Reel

2.540µm

1.905µm

Crimp or Compression

1.50-2.06mm

N/A

Search Parts in this Series

33468 Series

Use With

MX64 Sealed Single Row Crimp Housing

31403 , MX123 Female Receptacle Housing

34566 , 34576

AS-33468-001-001

313025040-000, PK-30907-759, PK-31300-516,

PK-31302-480

PS-33468-001-001

SD-33468-001

This document was generated on 05/16/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
