87427-0203 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87427-0203

87427-0203: DescriptionHeaders & Wire Housings 4.20mm WtB RA Hdr HT HT /OMntFlg 4Sn 2Ckt; CategoryThe connector The connector; File Size31KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87427-0203 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87427-0203	-	-	View	Buy Now

87427-0203 Overview

Headers & Wire Housings 4.20mm WtB RA Hdr HT HT /OMntFlg 4Sn 2Ckt

87427-0203 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Molex, MINI-FIT JR., 87427, 2 Way, 2 Row, Right Angle PCB Header
Other features	MINI-FIT JR
body width	0.449 inch
subject depth	0.72 inch
body length	0.213 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN (394) OVER COPPER (315)
Contact completed and terminated	Tin/Copper (Sn/Cu)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	NYLON
JESD-609 code	e2
MIL compliance	NO
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
polarization key	POLAR PIN POSITION
Rated current (signal)	9 A
Guideline	CSA,UL,VDE
reliability	COMMERCIAL
Shell material	POLYAMIDE46
Terminal length	0.138 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0
Evacuation force-minimum value	3.0024 N

Preview

Download Datasheet

View All

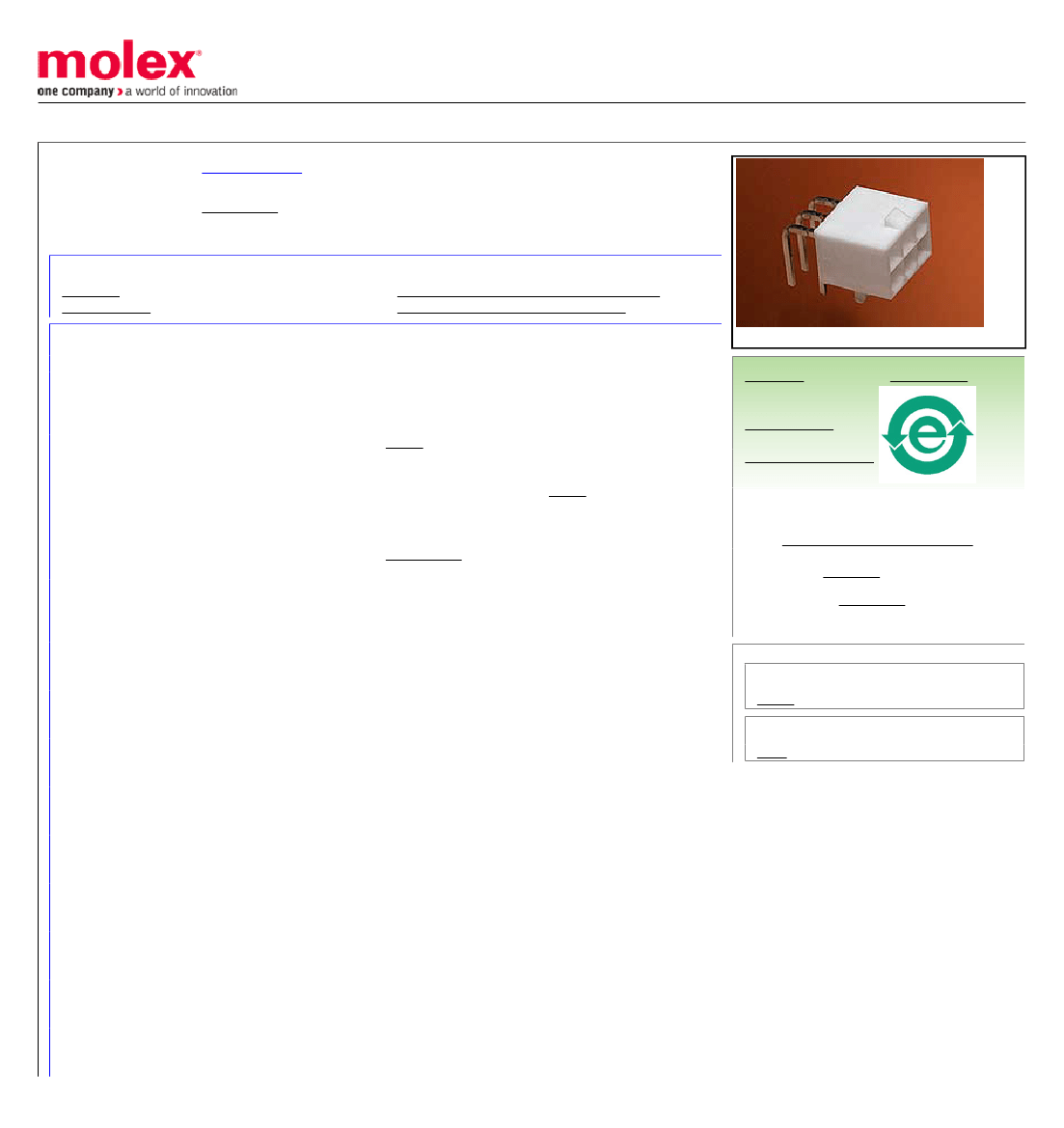

This document was generated on 07/30/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

87427-0203

Active

Mini-Fit Jr.™

4.20mm Mini-Fit Jr.™ Header, Right Angle, without Flange, 2 Circuits, Tin (Sn) over

Copper (Cu) Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87427-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

Agency Certification

CSA

General

Product Family

Series

Application

Comments

PCB Headers

87427

Power, Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit® Plus HCS

Crimp Terminal Crimped to 16 AWG wire., See Molex

product specification PS-45750-001 for additional

current de-rating information.

Mini-Fit Jr.™

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Beige

94V-0

Yes

Brass

Tin

Nylon

Right Angle

3.30mm

None

1.60mm

Tray

4.20mm

5.080µm

Yes

Fully

Search Parts in this Series

87427Series

Mates With

5557 Mini-Fit Jr.™ Receptacle Housing

Recommended Resources
