M83-LFT1F2N54-0000-000 datasheet, PDF

M83-LFT1F2N54-0000-000: DescriptionHeaders & Wire Housings 3R 54P F VERT PC TAIL 3MM W/JS; CategoryThe connector The connector; File Size140KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

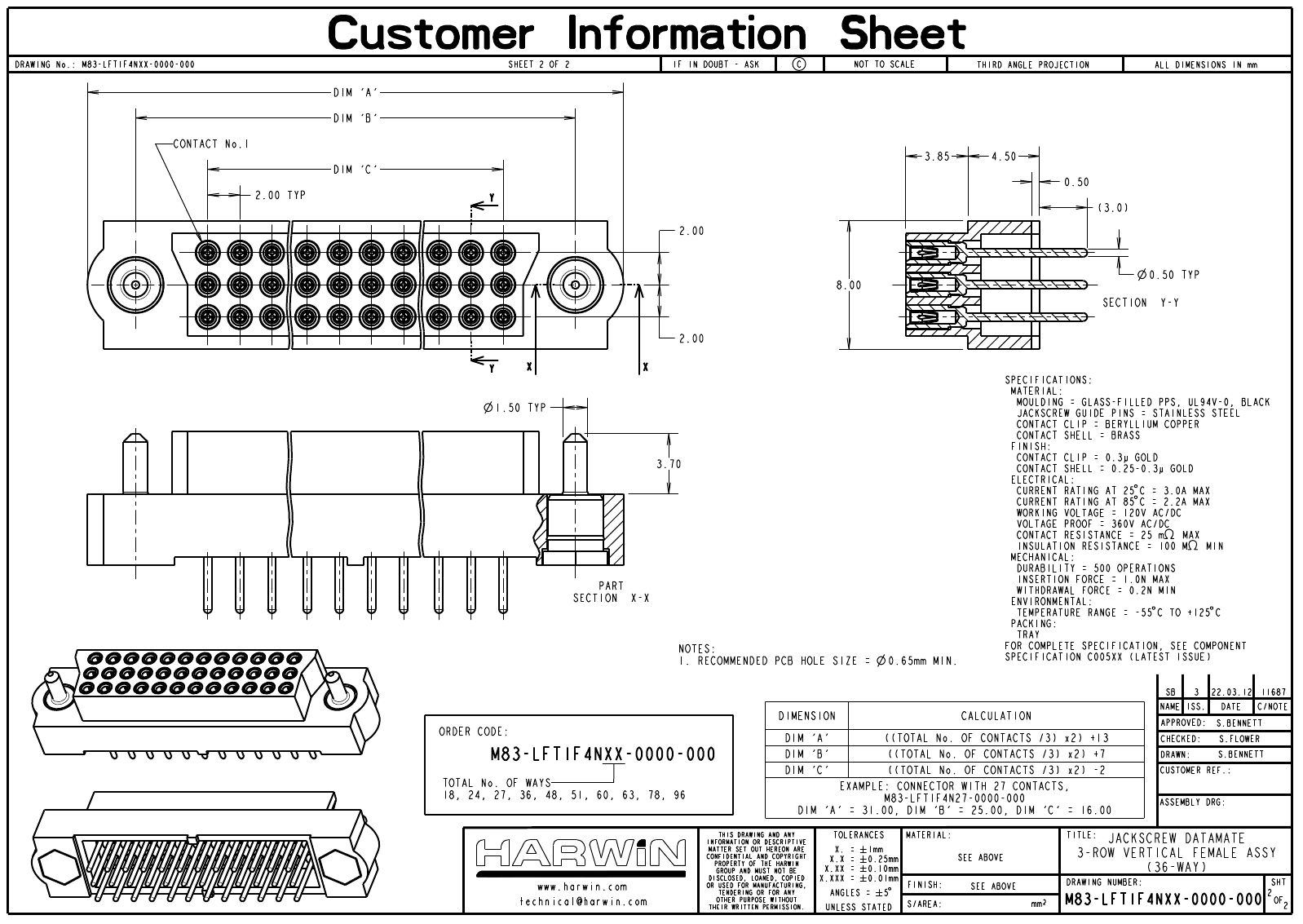

Download Datasheet Parametric Compare View All

M83-LFT1F2N54-0000-000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M83-LFT1F2N54-0000-000	-	-	View	Buy Now

Headers & Wire Housings 3R 54P F VERT PC TAIL 3MM W/JS

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	HOLE .138-.163
body width	0.314 inch
subject depth	0.329 inch
body length	1.929 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.0008 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M83-LFT1F2N
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	M2X0.4
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	12u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	54
UL Flammability Code	94V-0
Evacuation force-minimum value	.199882 N

	M83-LFT1F2N54-0000-000	M83-LFT1F2N540000000	M83-LFT1F2N27-0000-000	M83-LFT1F4N36-0000-000
Description	Headers & Wire Housings 3R 54P F VERT PC TAIL 3MM W/JS	Headers & Wire Housings 3R 54P F VERT PC TAIL 3MM W/JS	Headers & Wire Housings 3R 27P F VERT PC TAIL 3MM W/JS	Headers & Wire Housings 3R 36P F VERT PC TAIL 3MM W/JS
