92233-113 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 92233-113

92233-113: DescriptionCard Edge Connector, 72 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Natural Insulator, Socket,; CategoryThe connector The connector; File Size255KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

92233-113 Overview

Card Edge Connector, 72 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Natural Insulator, Socket,

92233-113 Parametric

Parameter Name	Attribute value
Objectid	2146452907
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.9
Other features	POLARIZED
Board mount options	POLARIZATION POST
body width	0.291 inch
body length	4.55 inch
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	COMPRESSION
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	92233
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	0.1 mm
Plating thickness	FLASH inch
polarization key	RIGHT
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	72
UL Flammability Code	94V-0

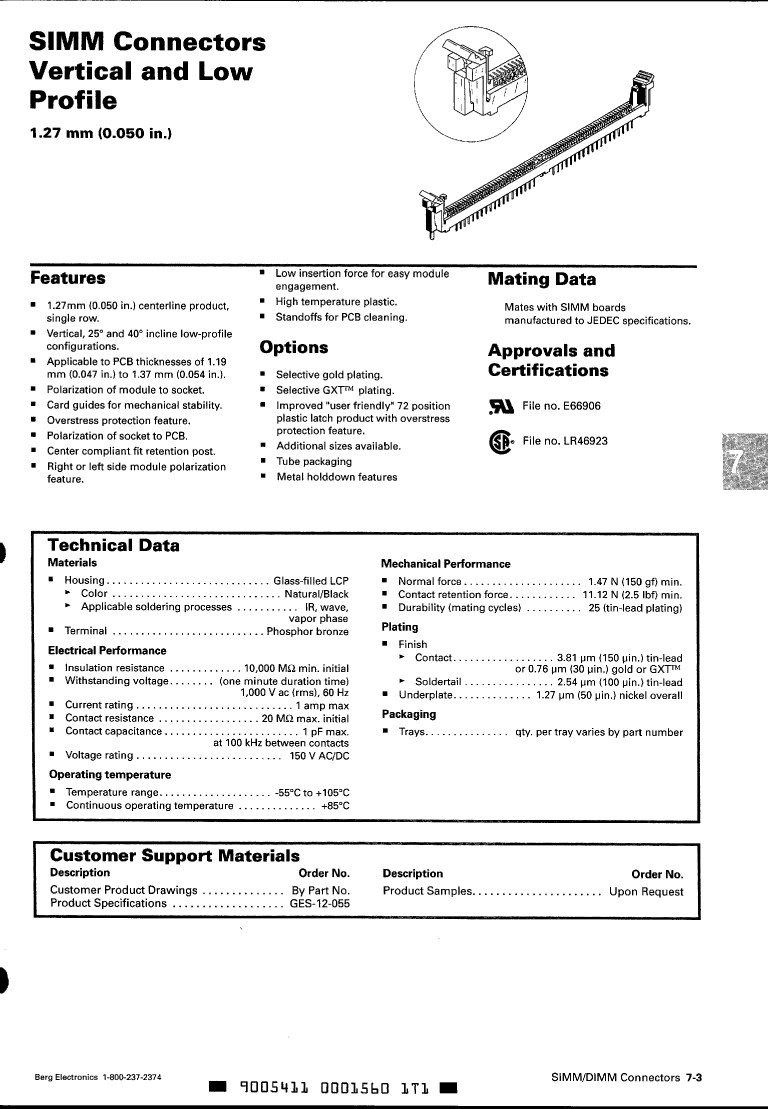

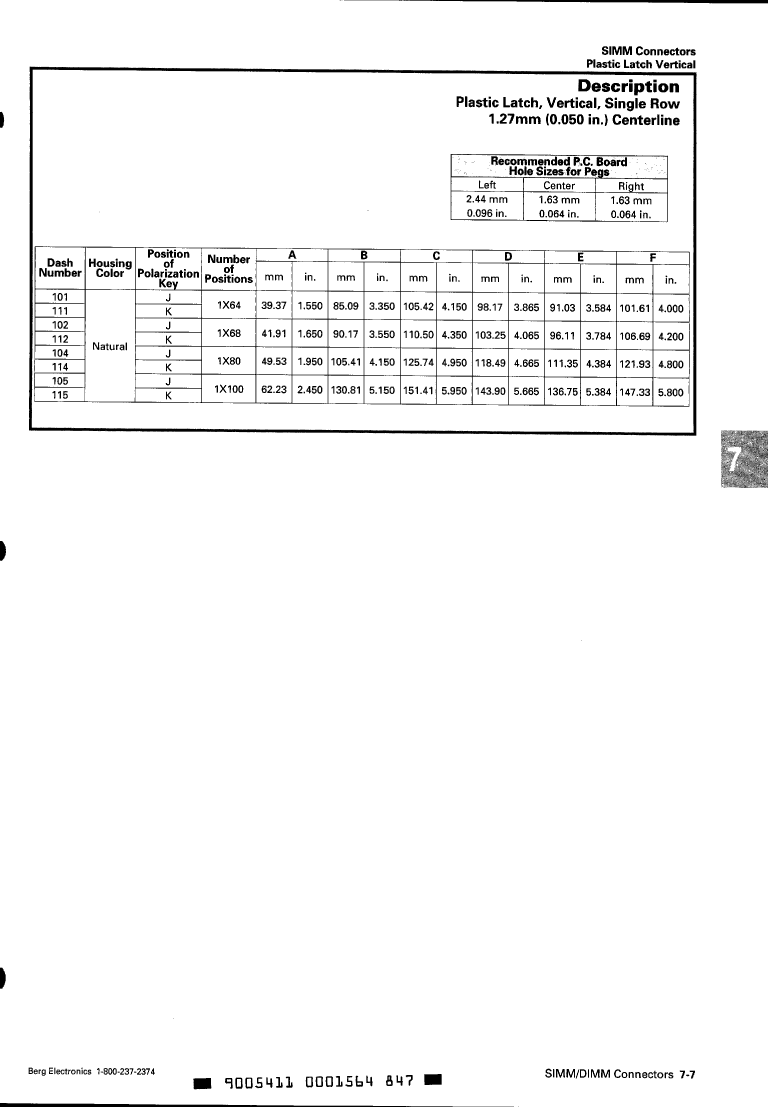

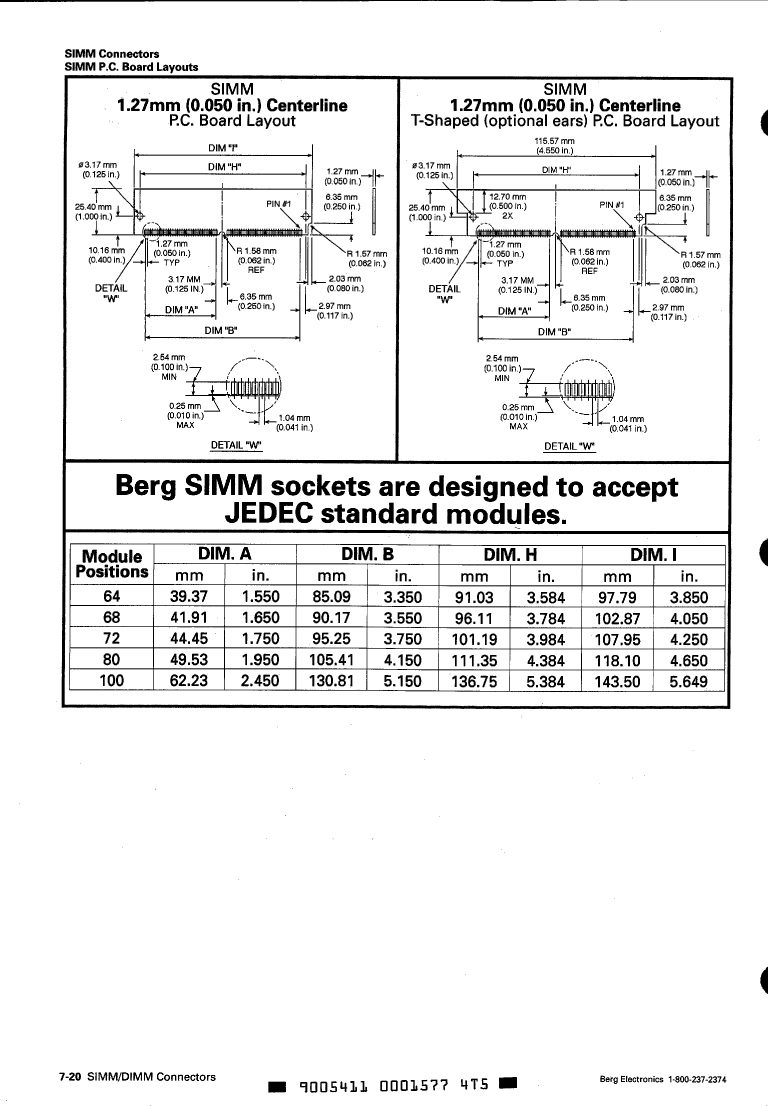

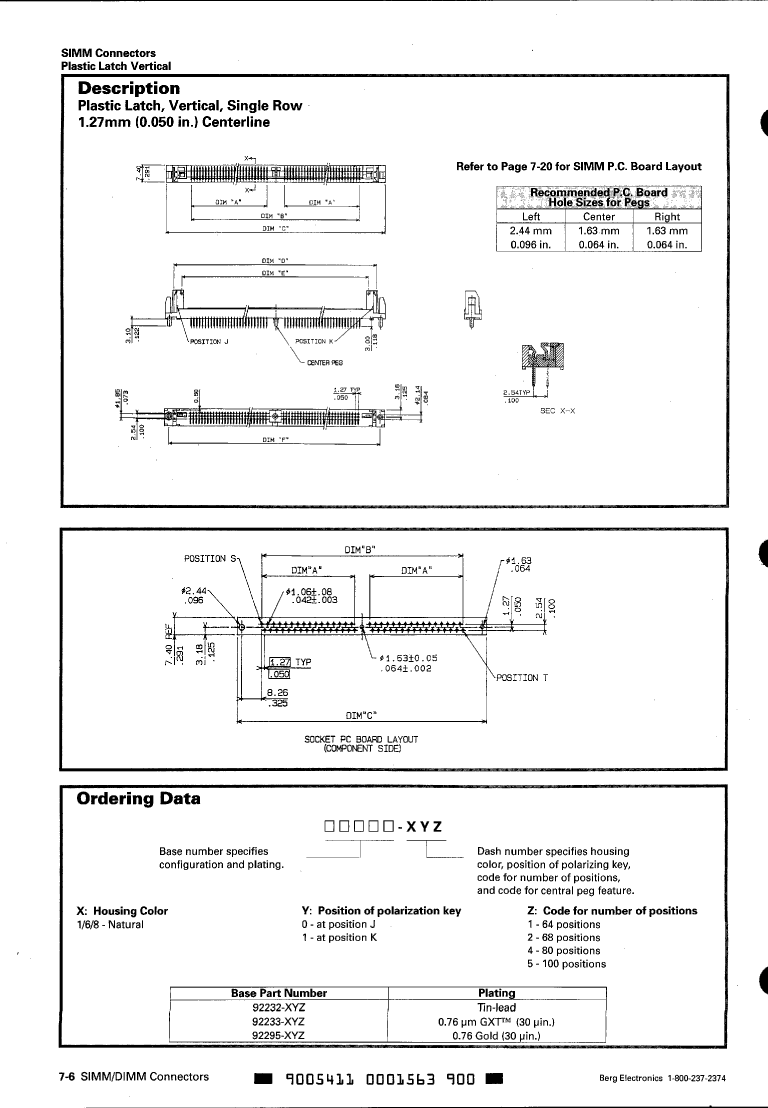

Preview

Download Datasheet

View All

92233-113 Related Products

	92233-113	92233-103	92295-603	92295-613
Description	Card Edge Connector, 72 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Natural Insulator, Socket,	Card Edge Connector, 72 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Natural Insulator, Socket,	Card Edge Connector, 72 Contact(s), 1 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Natural Insulator, Receptacle	Card Edge Connector, 72 Contact(s), 1 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Natural Insulator, Receptacle
Reach Compliance Code	compliant	compliant	unknown	unknown
Other features	POLARIZED	POLARIZED	LATCH, PLASTIC	LATCH, PLASTIC
Board mount options	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST
body width	0.291 inch	0.291 inch	0.291 inch	0.291 inch
body length	4.55 inch	4.55 inch	4.55 inch	4.55 inch
Body/casing type	SOCKET	SOCKET	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU
Contact completed and terminated	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	GOLD	GOLD
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	COMPRESSION	COMPRESSION	COMPRESSION	COMPRESSION
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	92233	92233	92295	92295
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	0.1 mm	0.1 mm	0.1 mm	0.1 mm
Plating thickness	FLASH inch	FLASH inch	30u inch	30u inch
polarization key	RIGHT	LEFT	LEFT	RIGHT
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	72	72	72	72
