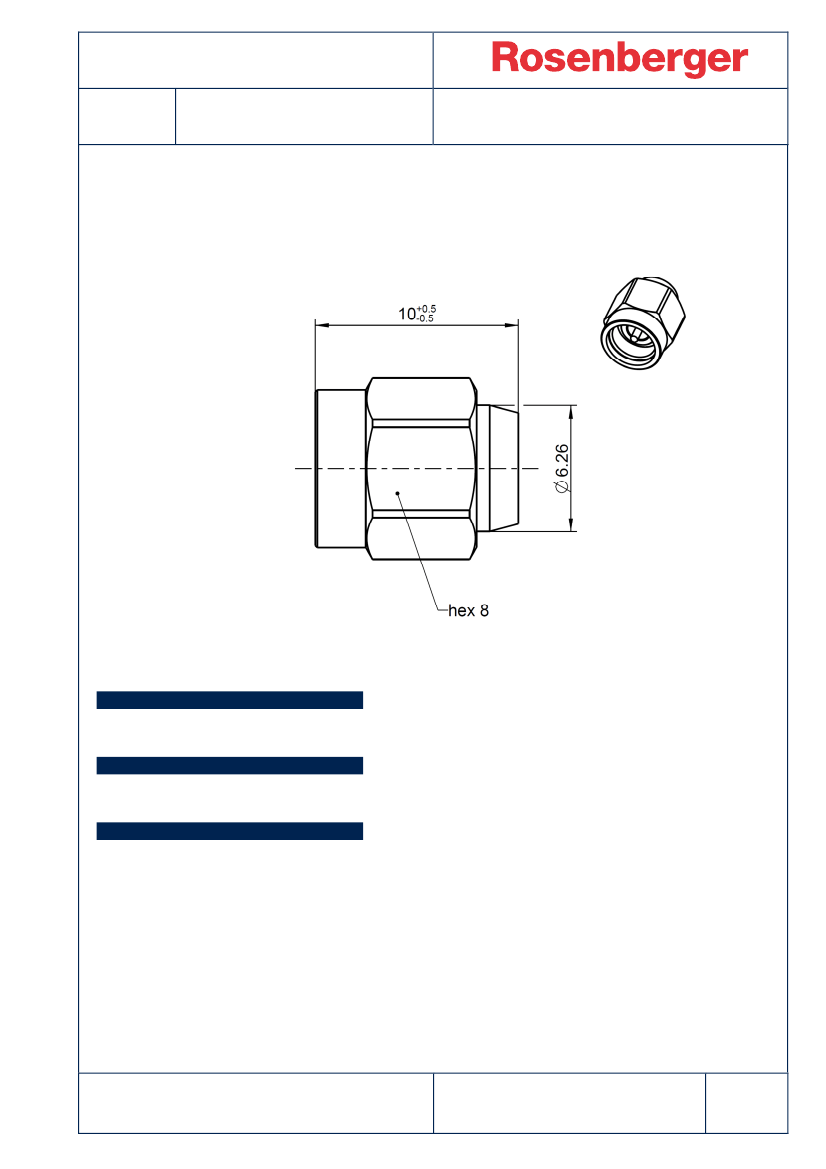

Technical Data Sheet
SMA
Termination
Plug 1 Watt
32S15B-1.0S3
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-15, EN 122110, MIL-STD-348
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Coupling nut
Gasket
Substrate
Material
Brass
Stainless steel
PTFE
Stainless steel
Silicone
Al
2
O
3
Plating
Gold, min. 1.27 µm, over chemical nickel
Passivated
Passivated
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
SMA
Termination
Plug 1 Watt
32S15B-1.0S3
50
Ω
± 5%
DC to 18 GHz
≥
32.2 dB @ DC to 8 GHz
≥
26.4 dB @ 8 GHz to 12.4 GHz
≥
19.1 dB @ 12.4 GHz to 18 GHz
≤
3 mΩ
≤
2 mΩ
100 Watts at 25°C environment temperature
≤
1W
derated linearity to 0 Watts at 125°C
Electrical data
Impedance
Frequency
Return loss
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Center contact resistance
Outer contact resistance
Impulse Power (1µs, 1%)
Power handling
(at 25 °C, sea level)
Mechanical data
Mating cycles
Coupling nut retention
Coupling test torque
Recommended torque
≥
500
≥
270 N
≤
1.7 Nm
0.8 Nm to 1.1 Nm
Environmental data
Temperature range
RoHS
-55 °C to +155 °C
compliant
Tooling
N/A
Suitable cables
N/A
Weight
2.3 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Martin Moder
Date
18.03.16
Approved
J_Krautenbacher
Date
15.07.16
Rev.
b00
Engineering change number
15-1629
Name
I_Wallner
Date
15.07.16
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
2/2
