ROHS COMPLIANT
PRODUCT DATA DRAWING
.625 15.88
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
A
DCN 36549
DCN 37905
03/09
11/10
STW
STW
.375 9.53
.343 8.71 HEX.
.310 7.87
O-RING
10-32 UNF-2A
MATERIAL:
1/4-36 UNS-2A
BODY:
CONTACT:
INSULATOR:
O-RING:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
SILICONE RUBBER PER A-A-59588, CLASS 2B, GRADE 50/60
RP
.439 11.15
RP
FINISH:
BODY:
CONTACT:
PASSIVATED PER AMS-2700.
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
MATERIAL:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
50 OHMS
DC TO 18.0 GHz
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
FINISH:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
DAL 03/06/09
STW 03/06/09
STW 03/06/09

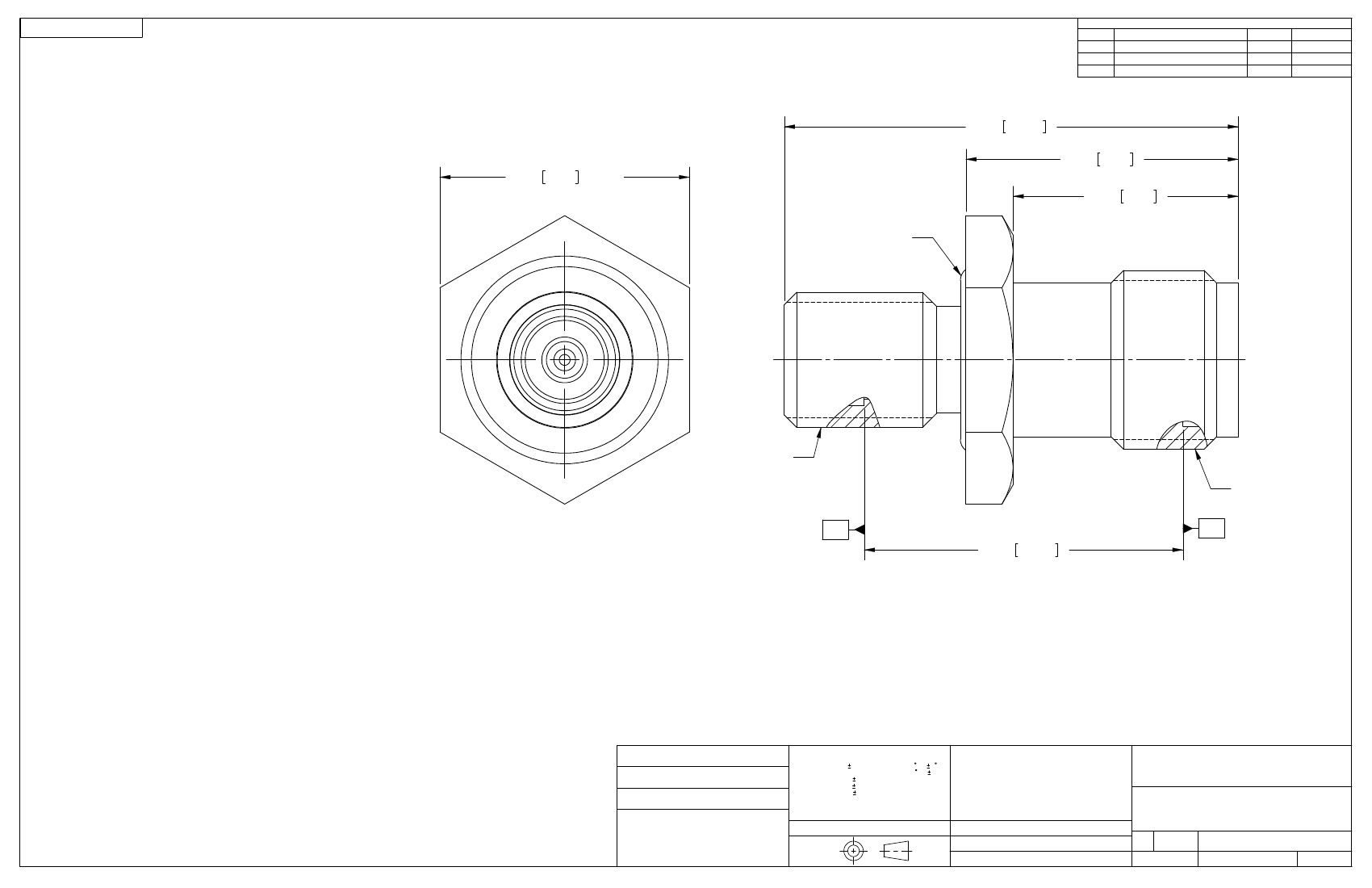

SMP LIMITED DETENT MALE TO
SMA FEMALE PANEL MOUNT
ADAPTER
95077
SIZE CAGE CODE DWG. NO.
B
SF1112-6034
SHEET 1 OF 1
SCALE: 9:1
