39-01-3109: DescriptionHeaders & Wire Housings MINIFITJR PLG HGS 10P DR W/O EARS; CategoryThe connector The connector; File Size41KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-01-3109 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-01-3109	-	-	View	Buy Now

39-01-3109 Overview

Headers & Wire Housings MINIFITJR PLG HGS 10P DR W/O EARS

39-01-3109 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Is Samacsys	N
Other features	MINI-FIT
body width	0.378 inch
subject depth	0.941 inch
body length	0.874 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Minimum insulation diameter	0.035 inch
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	5559
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	CENTER
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Total number of contacts	10
UL Flammability Code	94V-0
Maximum wire diameter	16 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	3.1136 N
Base Number Matches	1

Preview

Download Datasheet

View All

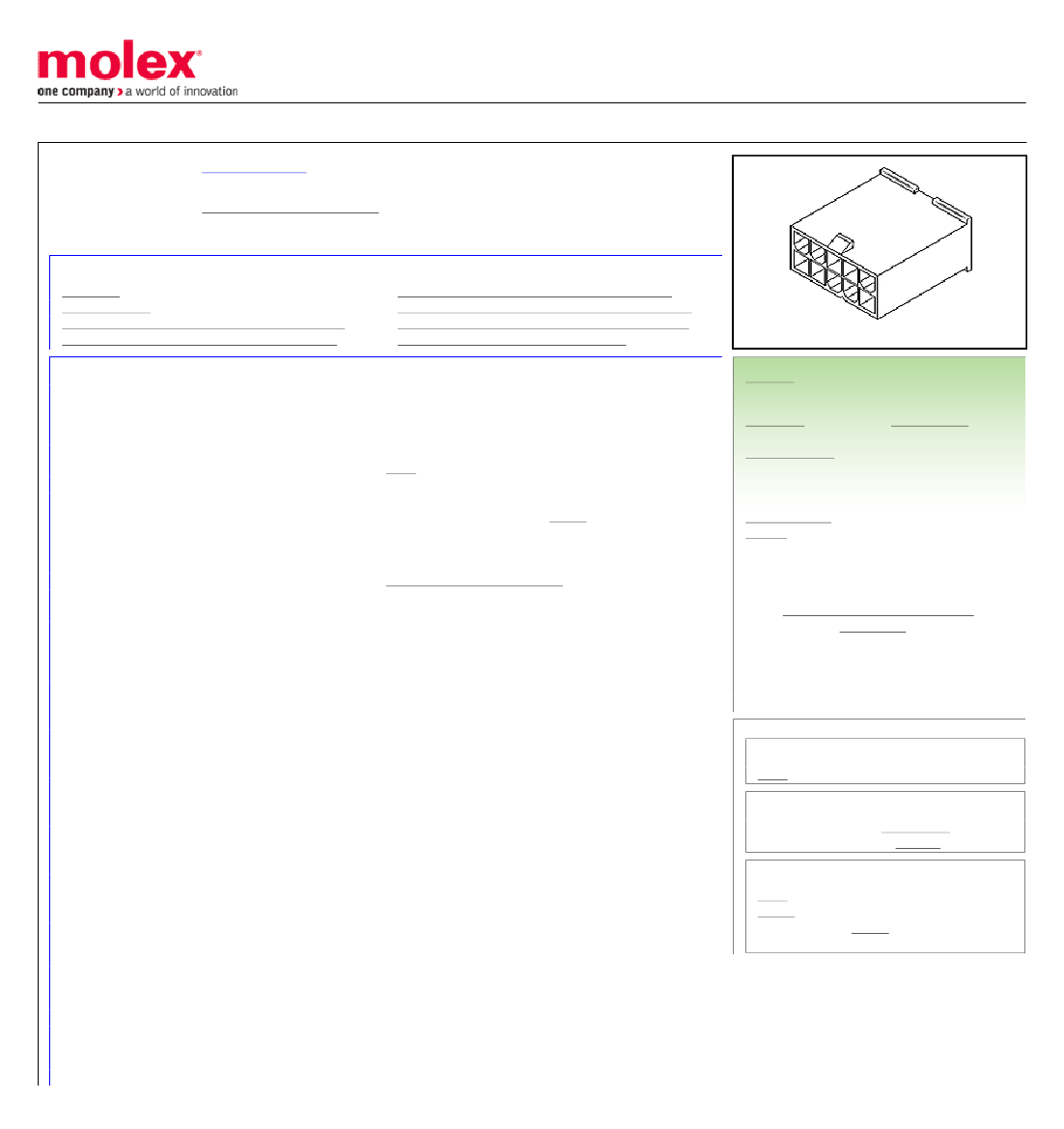

This document was generated on 05/18/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039013109

Active

Mini-Fit Jr. Power Connectors

Mini-Fit Jr. Plug Housing, Dual Row, 10 Circuits, UL 94V-0, without Panel Mounting

Ears, Natural

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45750-001-001 (PDF)

Product Specification PS-5556-001-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Product Specification TS-5556-002-001 (PDF)

Application Specification AS-5557-001-001 (PDF)

Packaging Specification PK-5559-002-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

Crimp Housings

5559

Power, Wire-to-Board, Wire-to-Wire

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current

derating information.

Mini-Fit Jr. Power Connectors

Mini-Fit Jr.

800754204040

Natural

94V-0

Plug

None

Yes

Nylon

2.902/g

Bag

4.20mm

Yes

-40°C to +105°C

13.0A

5559-10P1-210

AS-5557-001-001

PK-5559-002-001

Overview

Product Name

UPC

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Capable

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Material Info

Engineering Number

Reference - Drawing Numbers

Application Specification

Packaging Specification

Search Parts in this Series

5559 Series

Mates With

Receptacle Housing 39-01-2105 <br>Mini-

Fit Jr. Cable Assembly 245135

Use With

5558 Mini-Fit Jr. Male Crimp Terminals.

30490 Mini-Fit Male Grounding Crimp

Terminals <br> 46012 Mini-Fit Plus Crimp

Terminal
