9311-60036-TD datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 9311-60036-TD

Preview

9311-60036-TD: DescriptionRF Connectors / Coaxial Connectors SMP Male Edge Launch TD Conn 4 Port SB; CategoryThe connector; File Size163KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

9311-60036-TD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	9311-60036-TD	-	-	View	Buy Now

9311-60036-TD Overview

RF Connectors / Coaxial Connectors SMP Male Edge Launch TD Conn 4 Port SB

9311-60036-TD Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	RF Connectors / Coaxial Connectors
Product	Connectors
Gender	Male
Factory Pack Quantity	1

Preview

Download Datasheet

View All

ROHS COMPLIANT

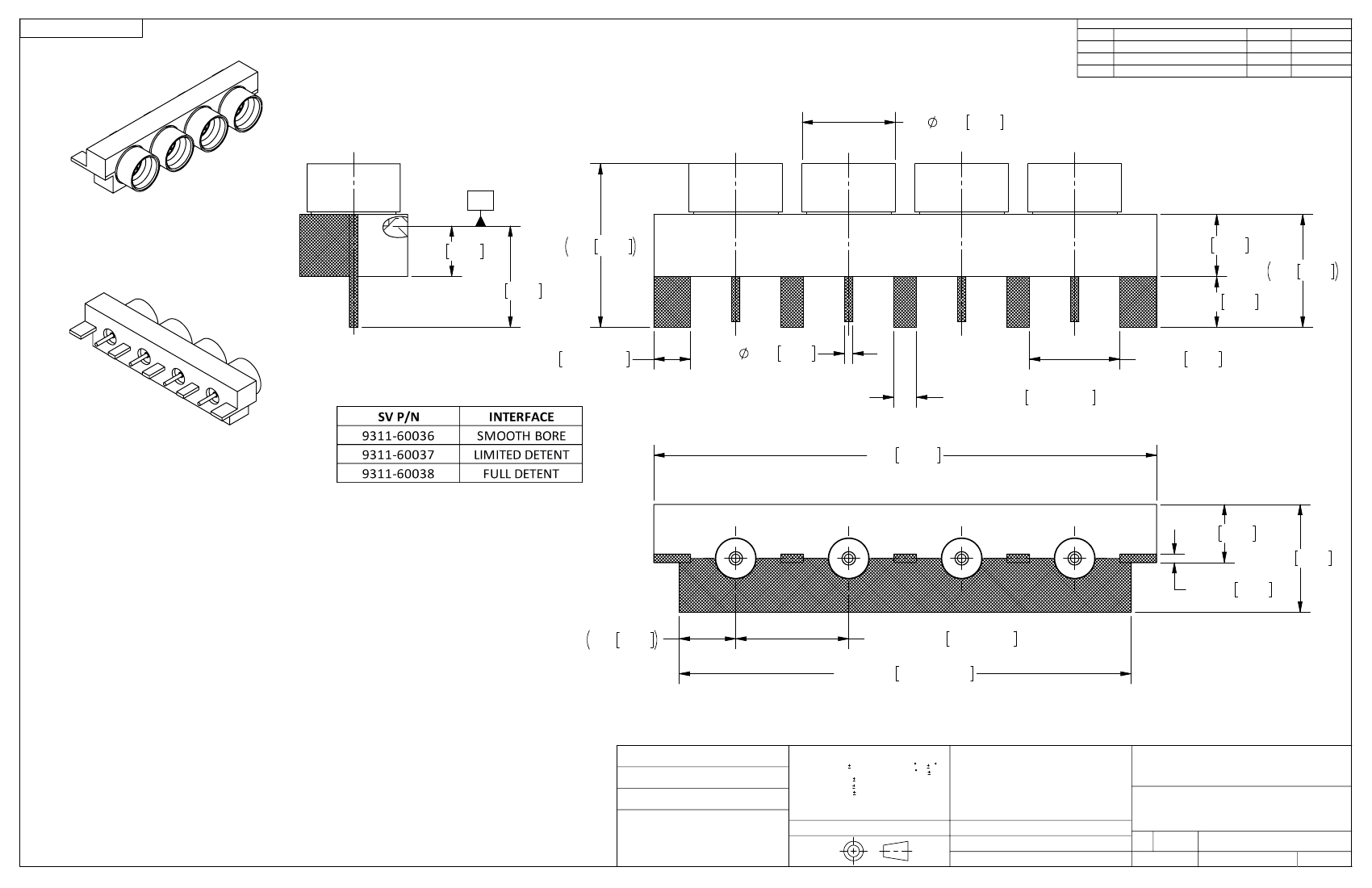

PRODUCT DATA DRAWING

4X

.165 4.19

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

-

DCN 42353

05/16

DAL

RP

.290 7.35

.180 4.56

.110 2.79

.200 5.08

9X .090 2.29

.090 2.27

.065±.008 1.65±0.20

4X

.015 0.38

3X .040±.007 1.02±0.18

4X .160 4.06

.890 22.61

MATERIAL:

BODIES:

CONTACTS:

INSULATORS:

STAINLESS STEEL PER AMS-5640,

ALLOY UNS S30300, TYPE 1

BERYLLIUM COPPER PER ASTM B196,

ALLOY No. UNS C17300, TD04

PTFE PER ASTM D1710, TYPE I

GRADE 1, CLASS B

.100 2.54

3X .200±.002 5.08±0.05

.800±.004 20.32±0.10

GOLD PER ASTM B488, TYPE II,

CODE C, CLASS 1.27, OVER NICKEL

PER AMS-QQ-N-290, CLASS 1, .00005" MIN.

MATERIAL:

FINISH:

.103 2.62

.191 4.85

5X .015 0.38

FINISH:

BODIES &

CONTACTS:

PERFORMANCE:

IMPEDANCE:

FREQ. RANGE:

INSUL. RESISTANCE:

50 OHMS

DC TO 26.5 GHz

5000 MEGOHMS. MIN.

SEE NOTES

N/A

PROPRIETARY

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

DECIMAL: .X

.XX

.XXX

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]

2) ALL DIMENSIONS ARE AFTER PLATING.

3) BREAK CORNERS & EDGES .005 R. MAX.

4) CHAM. 1ST & LAST THREADS.

5) SURFACE ROUGHNESS 63

e

MIL-STD-10.

6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN .005 T.I.R.

7) REMOVE ALL BURRS

SV Microwave, Inc.

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

TITLE:

SURFACE AREA:

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

THIRD ANGLE PROJECTION

DRAWN:

CHECKED:

APPROVED:

ELA 05/20/16

DAL 05/20/16

SMP MALE 4-PORT

PCB EDGE MOUNT

95077

SIZE CAGE CODE DWG. NO.

B

9311-60036-60038-TD

SHEET 1 OF 1

SCALE: 7:1
