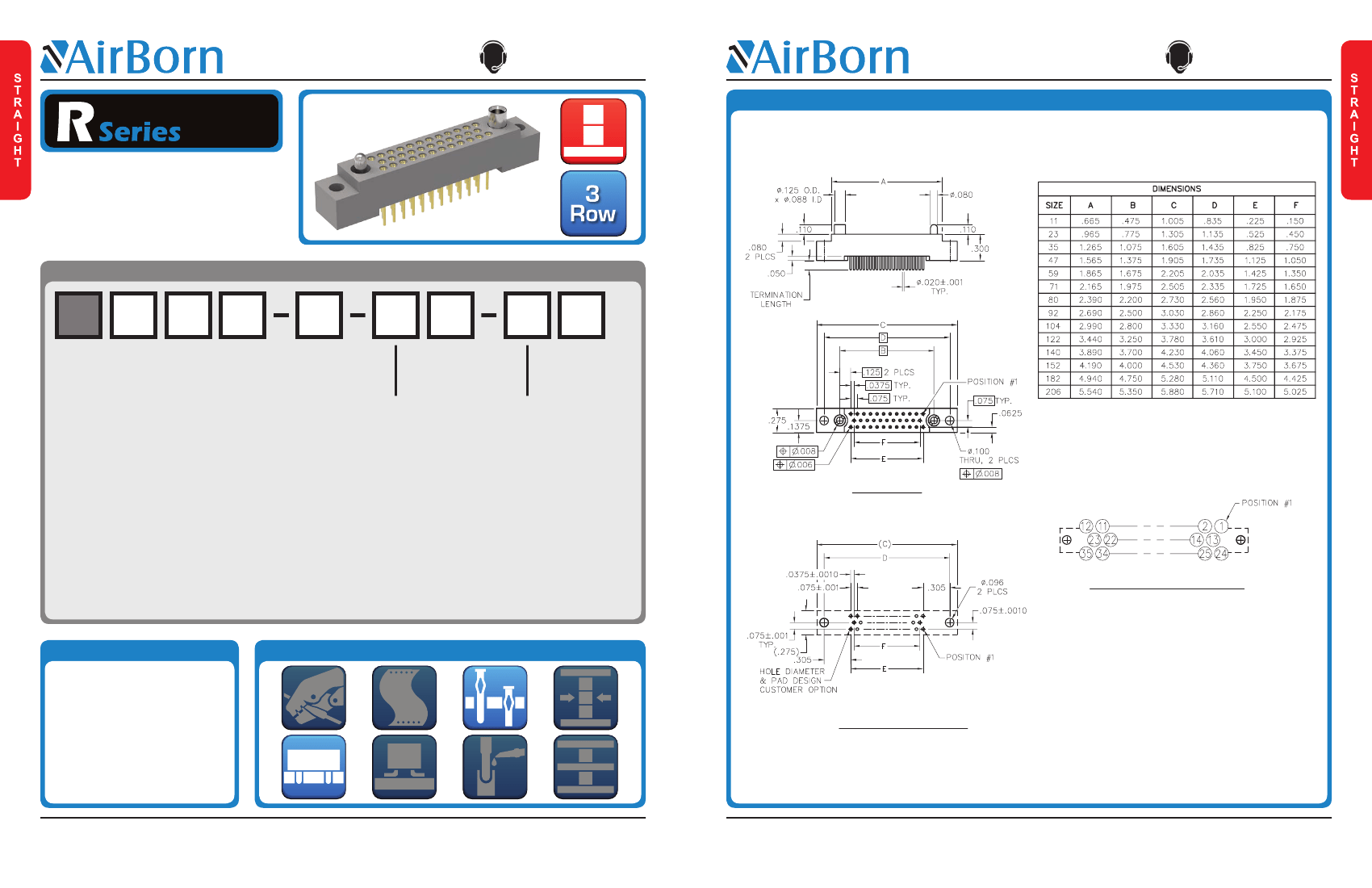

RM – Three-Row, Straight, Board-Mount Receptacle
CONTACT CUSTOMER SERVICE
High-Density
0.075"
(1.905mm)
RM – Three-Row, Straight,
Board-Mount Receptacle
Contact Spacing: 0.075" (1.91 mm)
R-Series products are high-density, plastic
connectors commonly used in board-to-board
applications. Approved to MIL-55302 standard.
Plastic ▪ 3-Row ▪ 11-206 Contacts
Sample Part Number Format: RM322-152-211-5500
RM
SERIES
0.075" Plastic
Rectangular
Connector
(Receptacle)
3
ROWS
3 – 3-Row
(11-206
contacts)
2
STYLE
BODY MATERIAL
2 – Receptacle, 2 – Polyphenylene
straight with
sulfide (PPS)
mounting ears
4 – Receptacle,
straight without
mounting ears
SIZE
011 – 11 contacts
023 – 23 contacts
035 – 35 contacts
047 – 47 contacts
059 – 59 contacts
071 – 71 contacts
080 – 80 contacts
092 – 92 contacts
104 – 104 contacts
122 – 122 contacts
140 – 140 contacts
152 – 152 contacts
182 – 182 contacts
206 – 206 contacts
PLATING
1 – Gold
2 – Pre-tinned,
SnPb alloy ‡
3 – Pre-tinned,
SAC305 alloy
TERMINATION
20 – Plated thru-hole, 0.109" x 0.020" Ø
21 – Plated thru-hole, 0.140" x 0.020" Ø
22 – Plated thru-hole, 0.172" x 0.020" Ø
23 – Plated thru-hole, 0.250" x 0.020" Ø
50 – Plated thru-hole, 0.140" x 0.016" Ø
51 – Plated thru-hole, 0.172" x 0.016" Ø
64 – Press-fit, 0.203"
(board 0.093 – 0.125" thick)
65 – Press-fit, 0.323"
(board 0.156 – 0.200" thick)
66 – Press-fit, 0.403"
(board .250" or thicker)
(customer-keyed)
HARDWARE
0256 – None
55 – Guide set
57 – Two guide pins
58 – Two guide sockets
29 – Fixed jackset
30 – Fixed jackset, reversed
19 – Two fixed jackscrews
20 – Two fixed jacksockets
59 – Hex turning jackset, 0.200"
60 – Hex turning jackset reversed, 0.200"
61 – Two hex turning jackscrews, 0.200"
62 – Two hex turning jacksockets, 0.200"
64 – Turning jackset, 0.490"
POLARIZATION
00 – None
XX – See page 140
for codes
70 – Same as above, but
without Loctite
®
RECEPTACLE
Notes:
‡ Not RoHS-compliant
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
PIN IDENTIFICATION PATTERN
VIEWED FROM TERMINATION SIDE
(EXAMPLE: 35 POSITION CONNECTOR)
Mates with
RM312 & RM332 — Three-row, straight plug
RM352 & RM372 — Three-row,
right-angle plug
RA3 — Three-row, I/O plug
Terminations
PCB LAYOUT VIEWED
FROM COMPONENT SIDE
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
RM322-PNB-1
(CTR504, REV. 2)
www.airborn.com
(512 ) 863-5585
RM322-DIM-1
(CTR504, REV. 1)
www.airborn.com
( 512 ) 863-5585
