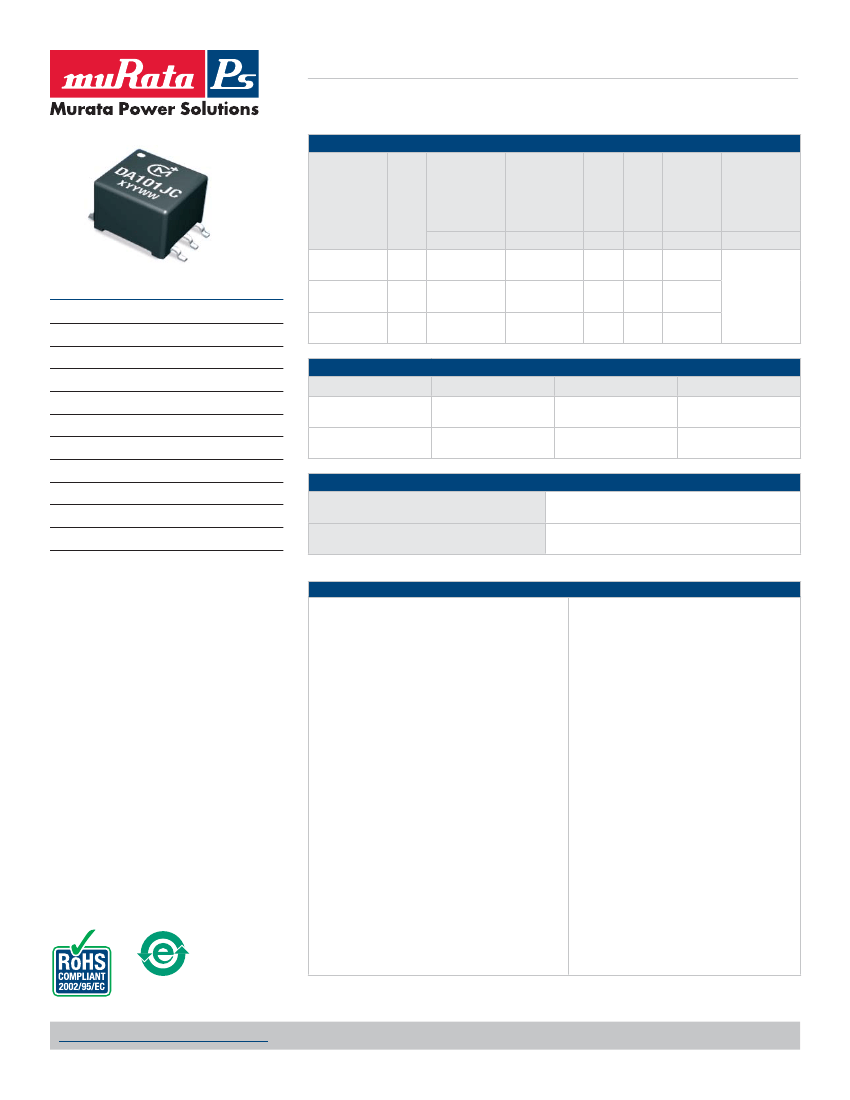

DA100J Series
SM Transformers for Digital Audio Data Transmission
SELECTION GUIDE
Min. Return Loss
(100kHz-3MHz)
Turns Ratio
Primary
Inductance
(10kHz, 50mV)
mH
DA101JC
1:1
1:1
1:1
1.00 - 2.20
1.90 - 4.00
3.20 - 8.50
Max.
Leakage
Inductance
(100kHz, 10mV)
μH
0.36
0.49
0.91
Typ. Common
Mode Rejection
(100kHz, 110Ω)
dB
55.9
52.4
48.5
2000
Min. Volt-time
Product, Et
Isolation
(Flash tested
for 1 second)
Vrms
Order Code
Vμs
15
20
28
dB
34.6
38.8
34.9
FEATURES
J-STD-020D reflow
RoHS compliant
Compatible with leading chip sets
2kVrms isolation
Industry-standard pinout
Surface mount option
UL 94 V-0 package materials
Low profile
Suitable for both 75 & 110Ω circuits
Toroidal construction
Compliant with AES/EBU standards
DA102JC
DA103JC
ORDER CODE DETAILS
Order Code
DAXXXJC
DAXXXJC-R
Package Type
6 Pin SM
6 Pin SM
Packaging Type
Tube
Tape & Reel
Quantity
50
500
ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range
Storage temperature range
All specifications typical at T
A
=25°C
-40°C to +85°C
–40°C to +125°C
DESCRIPTION
The Digital Audio Range of transformers is
designed to improve the balance of transmitter
and receiver circuitry in hi-fi equipment,
video games and other applications requiring
high-performance digital audio transmission.
Compliant with AES/EBU recommendations for the
digital audio interface, offering optimised shunt
capacitance between primary and secondary
windings. Capable of operating over the audio
data rate frequency range, providing isolation from
50-60Hz noise.
For through hole versions see DA100 series
datasheet.
TECHNICAL NOTES
ISOLATION
VOLTAGE
‘Hi Pot Test’, ‘Flash Tested’, ‘Withstand Voltage’, ‘Proof Volt-
age’, ‘Dielectric Withstand Voltage’ & ‘Isolation Test Voltage’
are all terms that relate to the same thing, a test voltage,
applied for a specified time, across a component designed
to provide electrical isolation, to verify the integrity of that
isolation.
All products in this series are 100% production tested at
their stated isolation voltage.
A question commonly asked is, “What is the continuous
voltage that can be applied across the part in normal opera-
tion?”
For a part holding no specific agency approvals both input
and output should normally be maintained within SELV limits
i.e. less than 42.4V peak, or 60VDC. The isolation test volt-
age represents a measure of immunity to transient voltages
and the part should never be used as an element of a safety
isolation system. The part could be expected to function cor-
rectly with several hundred volts offset applied continuously
across the isolation barrier; but then the circuitry on both
sides of the barrier must be regarded as operating at an
unsafe voltage and further isolation/insulation systems must
form a barrier between these circuits and any user-acces-
sible circuitry according to safety standard requirements.
REPEATED HIGH-VOLTAGE ISOLATION TESTING
It is well known that repeated high-voltage isolation
testing of a barrier component can actually degrade
isolation capability, to a lesser or greater degree
depending on materials, construction and environ-
ment. This series has toroidal isolation transformers,
with no additional insulation between primary and
secondary windings of enameled wire. While parts
can be expected to withstand several times the
stated test voltage, the isolation capability does de-
pend on the wire insulation. Any material, including
this enamel (typically polyurethane) is susceptible
to eventual chemical degradation when subject to
very high applied voltages thus implying that the
number of tests should be strictly limited. We there-
fore strongly advise against repeated high voltage
isolation testing, but if it is absolutely required, that
the voltage be reduced by 20% from specified test
voltage.
This consideration equally applies to agency recog-
nized parts rated for better than functional isolation
where the wire enamel insulation is always supple-
mented by a further insulation system of physical
spacing or barriers.
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
KMP_DA100JC_A02
Page 1 of 3
DA100J Series
SM Transformers for Digital Audio Data Transmission
PACKAGE SPECIFICATIONS
MECHANICAL DIMENSIONS
0.50
(12.70)
0.375
(9.52) Max.
1
0.354
(9.0) Max.
Top View
6
1
1
5
4
DA103JC
XYYWW
2
3
0.25
(6.35)
0.012 (0.30)
0.008 (0.20)
0.04
(0.90)
0.10
(2.54)
0.025 (0.63)
0.021 (0.53)
Unless otherwise stated all dimensions in inches (mm) ±0.01 (0.25).
All pins on a 0.1 (2.54) pitch and within ±0.01 (0.25) of true position.
Package Weight 0.93g Typ.
RECOMMENDED FOOTPRINT DETAILS
0.06 (1.60)
0.10 (2.54)
0.04
(1.00)
0.45
(11.50)
Unless otherwise stated all dimensions in inches (mm)
±0.01 (0.25). All pins on a 0.1 (2.54) pitch and within
±0.01 (0.25) of true position.
SOLDERING INFORMATION
1
Pin finish
Max. pPeak reflow temperature
Moisture sensitivity level
2
Max. time above liquidous (217°C)
Matte tin
245°C
1
100s
TUBE OUTLINE DIMENSIONS
0.43
(10.95)
0.16 (4.00)
0.023±0.005
(0.60±0.15)
0.51
(12.95)
Unless otherwise stated all
dimensions in inches (mm)
±0.01 (0.25).
Tube length: 18.3±0.08
(465±2).
Tube material: Antistatic coated
clear pvc.
0.15
(3.80)
0.62 (15.70)
1 For further information, please visit www.murata-ps.com/rohs
2 Representative samples of the product were subjected to the conditioning described in IPC/
JEDEC J-STD-020D and passed electrical testing, package coplanarity and visual inspection
which revealed no external cracks or changes in package body flatness.
0.22 (5.50)
www.murata-ps.com/support
KMP_DA100JC_A02
Page 2 of 3
DA100J Series
SM Transformers for Digital Audio Data Transmission

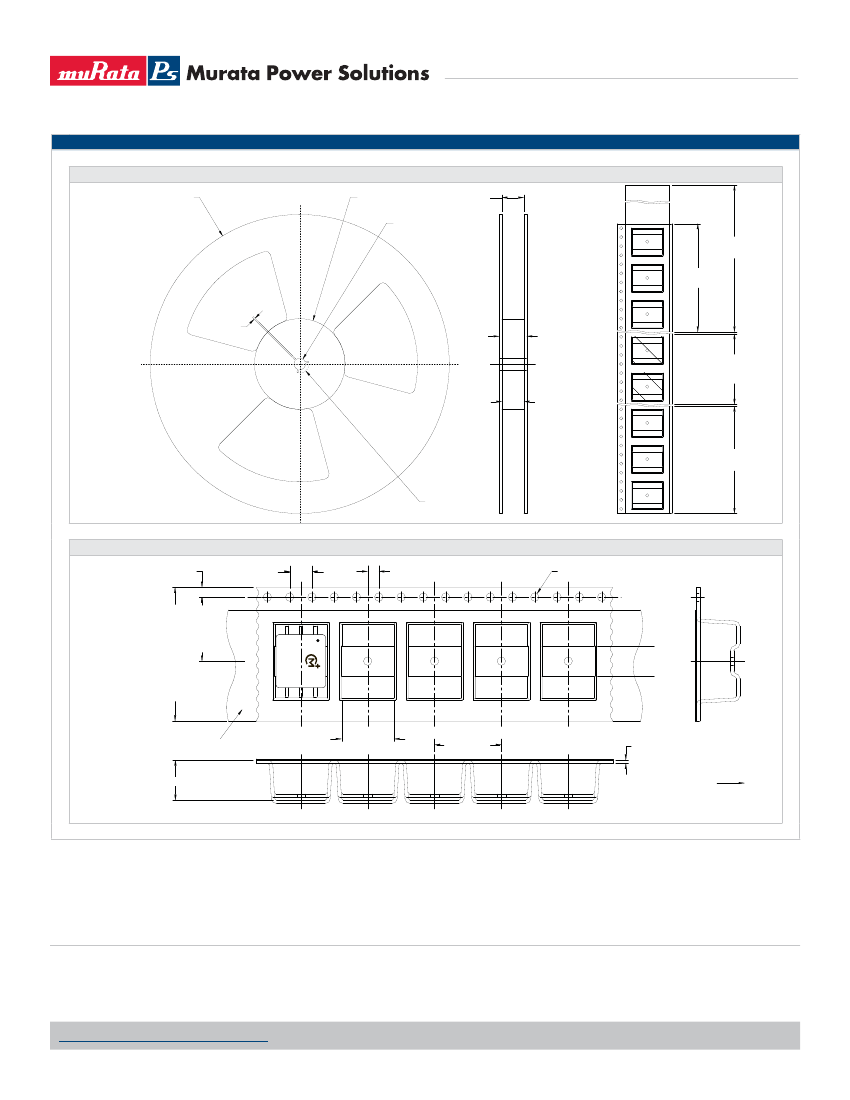

TAPE & REEL SPECIFICATIONS
REEL OUTLINE DIMENSIONS
Ø15.039 (382) Max.
2.36 (60) Min.
0.94-1.08 (23.9-27.4)
*
Ø 0.53 (13.50)
0.50 (12.80)
Leader section
15.7 (400) Min.
3.9 (100)
Min.
0.059 (1.50)
Min.
1.20
(30.4) Max.
Goods
enclosure
section
0.96 (24.4)
1.04 (26.4)
Trailer section
6.3 (160) Min.
Unless otherwise stated all
dimensions in inches (mm) ±0.01(0.25).
* Includes flange distortion at outer edge.
Measured at hub.
Ø 0.80 (20.20) Min.
TAPE OUTLINE DIMENSIONS
0.069 (1.75)
0.157 (4.00)
0.079 (2.00)
+0.004
+0.10
0.059 -0.000 (1.50 -0.00 )
+0.30
0.945
+0.012
(24.00
-0.10
)
-0.004
0.453 (11.50)
DA103JC
XYYWW
Cover tape
0.369 (9.37)
0.472 (12.00)
0.024 (0.60) Max.
0.283 (7.20)
Unless otherwise stated all
dimensions in inches (mm) ±0.01(0.25).
Direction of unreeling
Murata Power Solutions, Inc.
11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.
ISO 9001 and 14001 REGISTERED
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.
© 2011 Murata Power Solutions, Inc.
www.murata-ps.com/support
KMP_DA100JC_A02
Page 3 of 3
