CI100505-5N6D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CI100505-5N6D

CI100505-5N6D: DescriptionFixed Inductors 5.6nH .3% MultiLayer High Frequency; CategoryPassive components inductor; File Size417KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

CI100505-5N6D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CI100505-5N6D	-	-	View	Buy Now

CI100505-5N6D Overview

Fixed Inductors 5.6nH .3% MultiLayer High Frequency

CI100505-5N6D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	0402
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
uppercase and lowercase codes	0402
structure	Rectangular
core material	CERAMIC
DC Resistance	0.23 Ω
Nominal inductance(L)	0.0056 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	1 mm
Package form	SMT
Package width	0.5 mm
method of packing	TR, 7 Inch
Maximum rated current	0.3 A
self resonant frequency	4000 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	0.3NH IS THE TOLERANCE
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	5.3571%

Preview

Download Datasheet

View All

Features

0402 size

Available in E12 Series

High frequency

Nickel barrier

RoHS compliant*

Applications

Mobile phones

Cellular phones

CTV, VCR, HIC, FDD

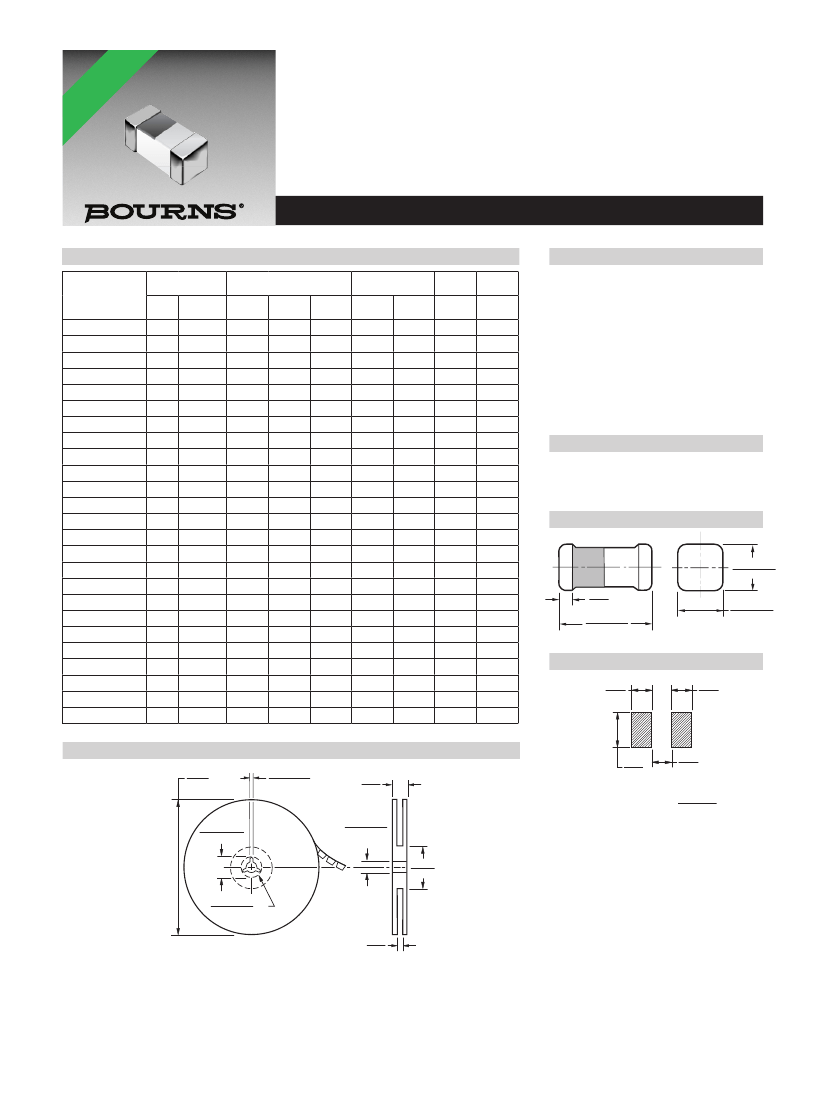

CI100505 Series - Multilayer Chip Inductors

General Specifications

SRF

MHz

Min.

Typ.

Electrical Specifications

Ro VE LEA

HS RS D

C ION FRE

OM S E

PL AR

IA E

Bourns

Part No.

Inductance

@100 MHz

Tol. %

Q Typ.

@500

MHz

DCR

ohm

Max.

I rms

Max.

CI100505-1N0D

CI100505-1N2D

CI100505-1N5D

CI100505-1N8D

CI100505-2N2D

CI100505-2N7D

CI100505-3N3D

CI100505-3N9D

CI100505-4N7D

CI100505-5N6D

CI100505-6N8J

CI100505-8N2J

CI100505-10NJ

CI100505-12NJ

CI100505-15NJ

CI100505-18NJ

CI100505-22NJ

CI100505-27NJ

CI100505-33NJ

CI100505-39NJ

CI100505-47NJ

CI100505-56NJ

CI100505-68NJ

CI100505-82NJ

CI100505-R10J

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

±0.3 nH

±5

@100

MHz

@1000

MHz

—

6000

4000

3900

3600

3200

2700

2300

2100

1900

1600

1300

1200

1000

750

700

600

550

13000

10000

9500

9000

8000

6500

5000

4400

4000

3500

3000

2600

2200

1900

1700

1600

1300

900

800

700

650

0.08

0.09

0.10

0.12

0.13

0.16

0.21

0.23

0.25

0.28

0.31

0.40

0.46

0.55

0.60

0.70

0.80

0.90

1.00

1.20

1.30

1.50

300

250

200

100

Temperature Rise

.................20 °C max. at rated current

Operating Temperature

................................-55 °C to +125 °C

Storage Temperature

................................-55 °C to +125 °C

Reflow Soldering .. 230 °C, 50 sec. max.

Resistance to Soldering Heat

................................... 260 °C, 10 sec.

Moisture Sensitivity Level .....................1

ESD Classification (HBM)................. N/A

Materials

Base Material.............................Ceramic

Terminal ....................................Ag/Ni/Sn

Packaging ............... 10,000 pcs. per reel

Product Dimensions

0.5 ± 0.05

(.020 ± .002)

0.4

MAX.

(.016)

1.0 ± 0.05

(.039 ± .002)

0.5 ± 0.05

(.020 ± .002)

Recommended Layout

0.5

(.020)

REF.

0.5

(.020)

REF.

Packaging Specifications

178.0

(7.00)

DIA.

2.0 ± 0.8

(.079 ± .031)

12.0

(.472)

1.0

(.040)

REF.

0.4

REF.

(.016)

DIMENSIONS:

(INCHES)

21.0 ± 0.8

(.827 ± .031)

13.0 ± 0.5

(.512 ± .020)

DIA.

50.0

(1.969)

13.0 ± 0.5

DIA.

(.512 ± .020)

9.0

(.354)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their specific applications.

CI100505-5N6D Related Products

	CI100505-5N6D	CI100505-68NJ	CI100505-3N3D	CI100505-39NJ	CI100505-10NJ	CHP2208100PPM15.20.5%W0131E4	CI100505-18NJ	CI100505-3N9D	CI100505-22NJ	CI100505-2N7D
Description	Fixed Inductors 5.6nH .3% MultiLayer High Frequency	Fixed Inductors 68nH 5% MultiLayer High Frequency	Fixed Inductors 3.3nH .3% MultiLayer High Frequency	Fixed Inductors 39nH 5% MultiLayer High Frequency	Fixed Inductors 10nH 5% MultiLayer High Frequency	Fixed Resistor, Metal Glaze/thick Film, 0.75W, 15.2ohm, 200V, 0.5% +/-Tol, -100,100ppm/Cel, 2208,	Fixed Inductors 18nH 5% MultiLayer High Frequency	Fixed Inductors 3.9nH .3% MultiLayer High Frequency	Fixed Inductors 22nH 5% MultiLayer High Frequency	Fixed Inductors 0.3nH .3% MultiLayer High Frequency
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Chip	Rectangular	Rectangular	Rectangular	Rectangular
JESD-609 code	e3	e3	e3	e3	e3	e4	e3	e3	e3	e3
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	155 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Package length	1 mm	1 mm	1 mm	1 mm	1 mm	5.58 mm	1 mm	1 mm	1 mm	1 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	1.91 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
method of packing	TR, 7 Inch	TR, 7 Inch	TR, 7 Inch	TR, 7 Inch	TR, 7 Inch	Waffle Pack	TR, 7 Inch	TR, 7 Inch	TR, 7 Inch	TR, 7 Inch
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Tolerance	5.3571%	5%	9.0909%	5%	5%	0.5%	5%	7.6923%	5%	11.1111%
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free	Lead free
Maker	Bourns	-	Bourns	-	Bourns	-	Bourns	Bourns	-	Bourns
package instruction	0402	0402	0402	0402	0402	-	0402	0402	0402	0402
Factory Lead Time	12 weeks	22 weeks	12 weeks	12 weeks	12 weeks	-	12 weeks	12 weeks	12 weeks	12 weeks
uppercase and lowercase codes	0402	0402	0402	0402	0402	-	0402	0402	0402	0402
core material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	-	CERAMIC	CERAMIC	CERAMIC	CERAMIC
DC Resistance	0.23 Ω	1.2 Ω	0.16 Ω	0.9 Ω	0.31 Ω	-	0.55 Ω	0.21 Ω	0.6 Ω	0.13 Ω
Nominal inductance(L)	0.0056 µH	0.068 µH	0.0033 µH	0.039 µH	0.01 µH	-	0.018 µH	0.0039 µH	0.022 µH	0.0027 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	-	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	-	1	1	1	1
Maximum rated current	0.3 A	0.1 A	0.3 A	0.1 A	0.25 A	-	0.2 A	0.3 A	0.2 A	0.3 A
self resonant frequency	4000 MHz	700 MHz	6000 MHz	1200 MHz	3200 MHz	-	2100 MHz	4000 MHz	1900 MHz	6000 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	-	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	-	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	-	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	-	100 MHz	100 MHz	100 MHz	100 MHz
