DFE252010P-1R5M=P2: DescriptionFixed Inductors 1.5uH 82mOhms3.0A +/-20% 2.5x2.0x1.0mm; CategoryPassive components inductor; File Size3MB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

DFE252010P-1R5M=P2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DFE252010P-1R5M=P2	-	-	View	Buy Now

DFE252010P-1R5M=P2 Overview

Fixed Inductors 1.5uH 82mOhms3.0A +/-20% 2.5x2.0x1.0mm

DFE252010P-1R5M=P2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	CHIP, 1008
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
core material	METAL ALLOY
DC Resistance	0.082 Ω
Nominal inductance(L)	1.5 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rated current	2.1 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

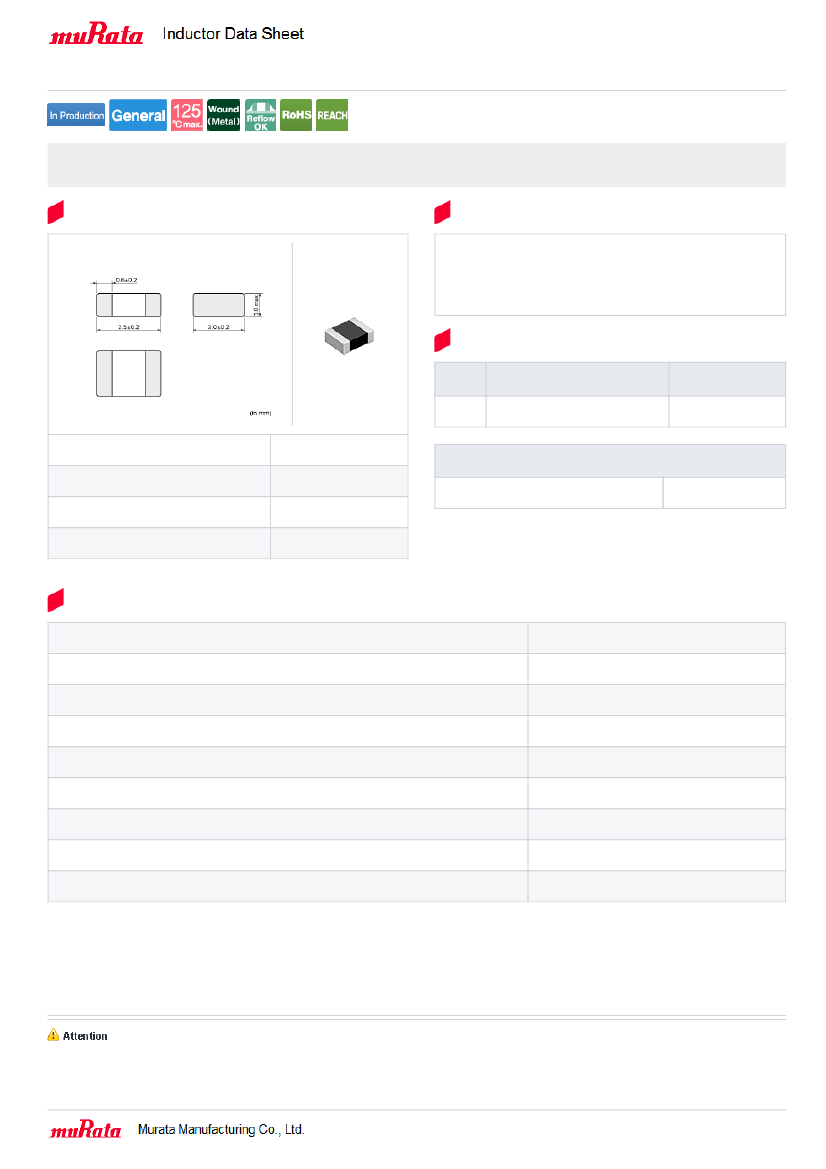

DFE252010P-1R5M#

< List of part numbers with package codes >

“#” indicates a package specification code.

DFE252010P-1R5M=P2

Shape

Notes

Rated current (Isat) is specified when the decrease of the initial

inductance value at 30%. (The ambient reference temperature is 20℃.)

Rated current (Itemp) is specified when temperature of inductor the is

raised 40℃ by DC current. (The ambient reference temperature is 20℃.)

References

Packaging

code

=P2

Specifications

φ180mm

Embossed taping

Minimum quantity

3000

L size

W size

T size

Size code in inch (mm)

2.5 ±0.2mm

2.0 ±0.2mm

1.0 mm

1008 (2520)

Mass (Typ.)

1 piece

0.0245g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Operating temperature range (Self-temperature rise is included)

Class of magnetic shield

Absolute maximum voltage

Series

1.5µH ±20%

1MHz

3000mA

2100mA

0.082Ω

-40〜125℃

Metal Alloy

20V DC

DFE252010P

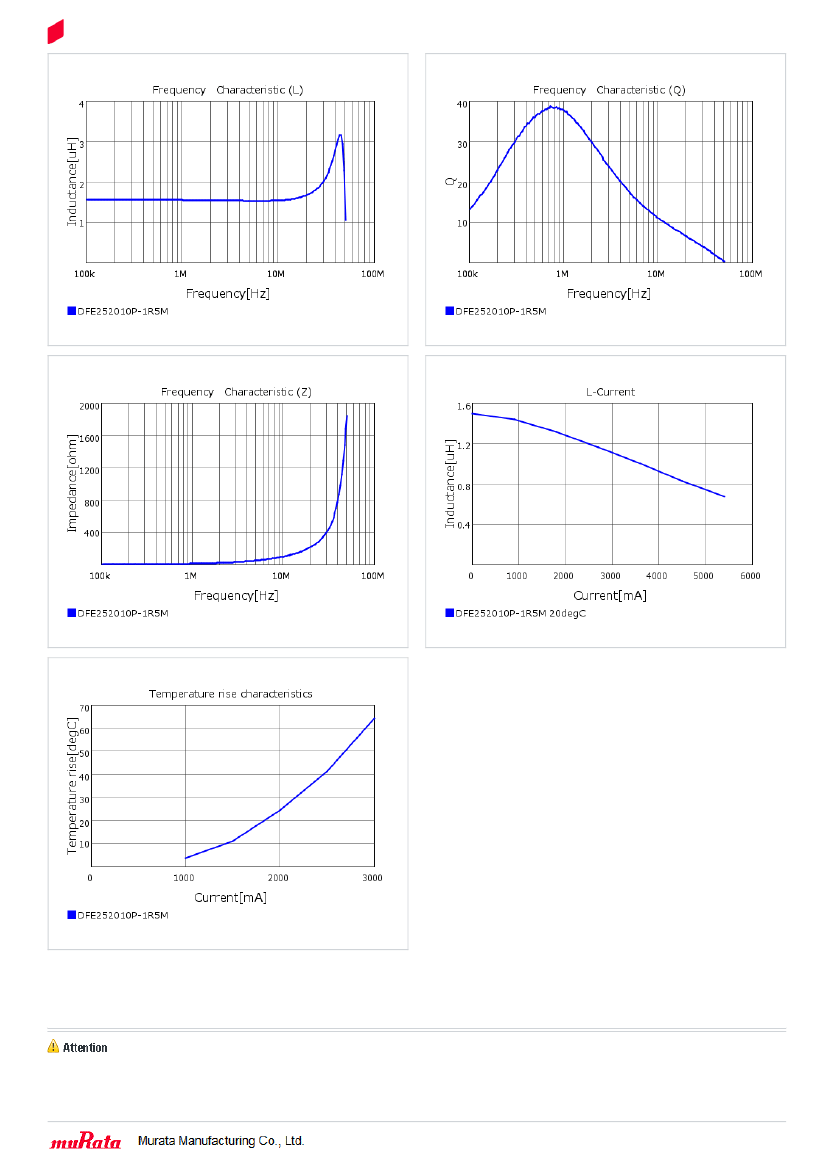

1 of 2

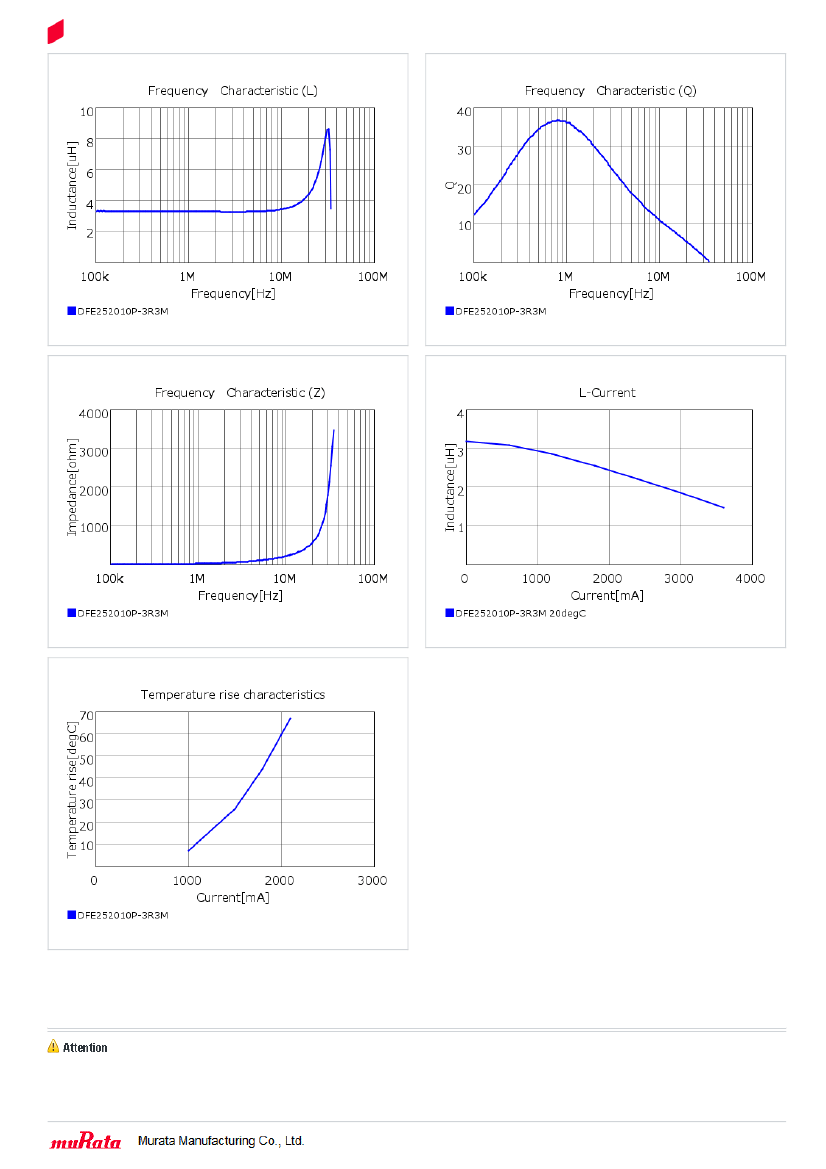

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated: 2018/05/20
