B121-1220-118-ZR: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size425KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B121-1220-118-ZR Overview

Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

B121-1220-118-ZR Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
body width	0.358 inch
body length	0.893 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	B121
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

HOW TO ORDER:

B

1

2

1

-

X

2

0

-

1

X

-

Z

R

ELECTRICAL:

CURRENT: 1

AMP

CONTACT RESISTANCE:

30 Milliohms Max.

INSULATOR RESISTANCE:

1000 Megaohms Min

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -55° C TO +105° C

DEFINITION:

2 - RIGHT ANGLE

NUMBER OF CONTACTS:

10 thru 64

COLOR:

1 - BLACK

PLATING OVERALL:

IR REFLOW

0 - FULL TIN

1 - FULL Au FLASH

COMPATIBLE

3 - 10u" Au

(260 C)

4 - 15u" Au

RoHS

5 - 30u" Au

COMPLIANT

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

MATERIAL

INSULATOR OPTIONS: PBT & 30% Glass Fiber UL94V-0

or

NYLON 6T UL94V-0 ( 260 C Rated - 10 Sec) - Add R to Part Number

CONTACT: Copper Alloy

PLATING: Gold and/or Matte Tin over 50 Microinches Nickel

Rev

0

Issued

Apv.

S.E.

Date

2/1/96

SMP TECHNOLOGY, INC.

A

Revised For RoHS Compliance

MAT'L

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

FINISH

ANGLE +/-

A.M.

7/15/06

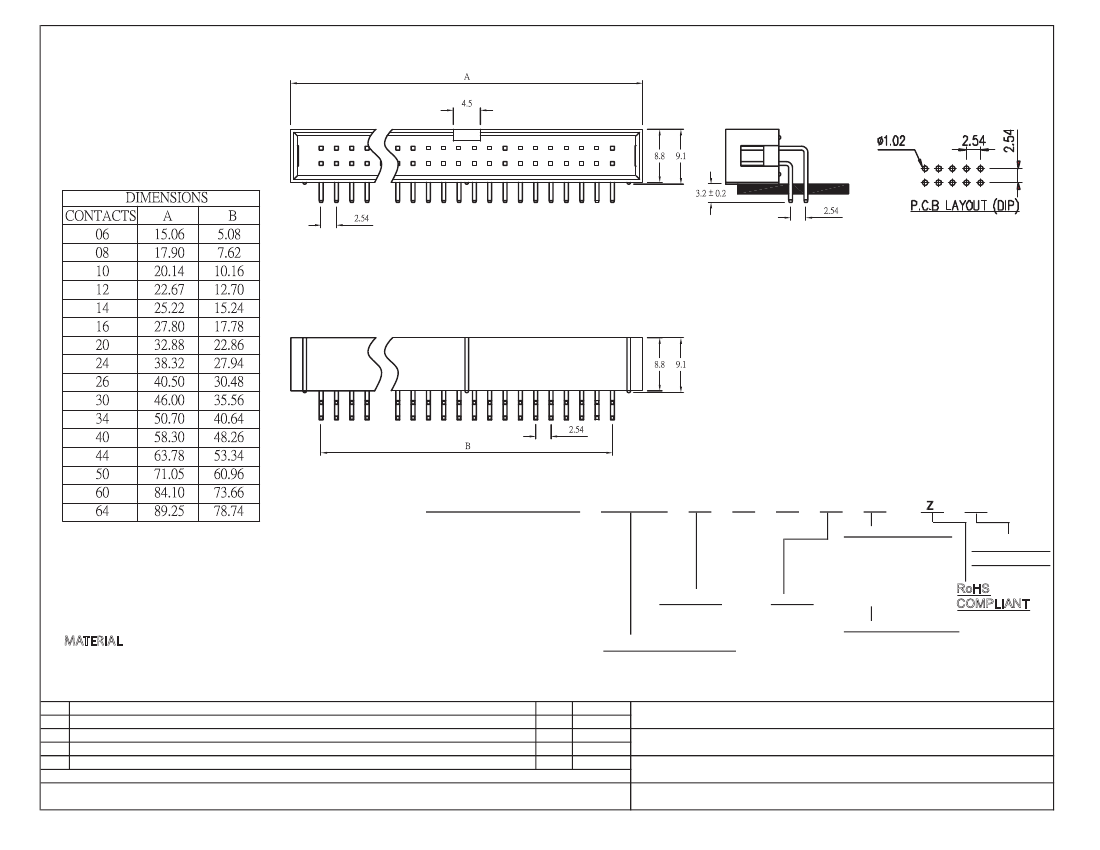

Box Header, 2.54mm Pitch, Right Angle, Reflow Compatible

SCALE

TOL. DEC.

UNIT: mm

SERIES: B 1 2 1 - X X 2 0 - 1 1 X - Z R

Pg: 1
