SC31-2R2: DescriptionFixed Inductors Inductor SMD 2.2uH 0.79A 0.10 ohms 1MHz; CategoryPassive components; File Size205KB，1 Pages; ManufacturerBel; Websitehttp://www.belfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SC31-2R2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SC31-2R2	-	-	View	Buy Now

SC31-2R2 Overview

Fixed Inductors Inductor SMD 2.2uH 0.79A 0.10 ohms 1MHz

SC31-2R2 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bel
Product Category	Fixed Inductors
RoHS	Details
Termination Style	SMD/SMT
Inductance	2.2 uH
Termination	-
Mounting Style	PCB Mount
Application	Power
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Product	Fixed Inductors
Factory Pack Quantity	3500

Preview

Download Datasheet

View All

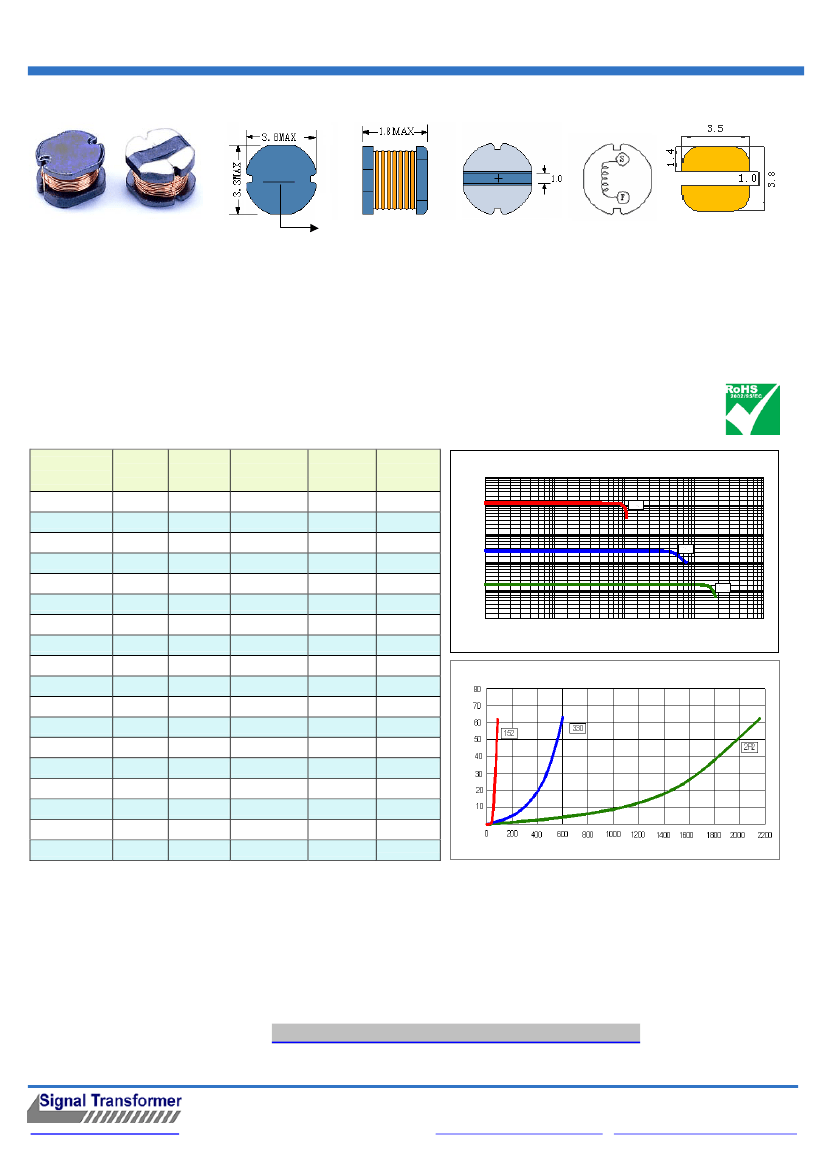

SC31

SMD POWER INDUCTORS

XXX

MARKING

●

Features

1. Open frame construction.

ELECTRICAL CHARACTERISTICS

Part Number

Inductance

Test

(uH)

Frequency

(1)

DC Resistance

(Ω

MAX)

(2)

Saturation Temperature

(3)

(4)

Current

(A)

10000

SC31 Inductance decrease by current

BC I nduct ance decr ease by cur r ent

31

152

SC31-2R2

SC31-4R7

SC31-100

SC31-150

SC31-220

SC31-330

SC31-470

SC31-680

SC31-101

SC31-122

SC31-152

2.2

4.7

10

15

22

33

47

68

100

1200

1500

1MHZ

1KHZ

0.10

0.19

0.35

0.65

0.76

1.20

1.70

2.50

3.40

45.6

66.0

0.79

0.65

0.45

0.30

0.25

0.20

0.17

0.13

0.10

0.05

0.03

I nduct ance( uH

)

Inductance (µH)

1.60

1.05

0.80

0.64

0.52

0.46

0.35

0.29

0.25

0.08

0.066

1000

100

330

10

2R

2

1

0. 1

1

10

100

D cur r ent (

(mA)

C

current

m

A)

DC

1000

10000

SC31 Temperature rise by current

Temperature rise °C

DC current (mA)

(1). Inductance tolerance

±20%

tested at 0.25V, 0ADC and 25℃.

(2). DCR measured at 25℃.

(3). The DC current at which the inductance decreases by 10% from its initial value.

(4). The DC current that results in a 40℃ temperature rise from 25℃ ambient.

Click here for

QUANTITY PER REEL & PACKING INFORMATION

Custom versions available upon request.

www.signaltransformer.com

©

2011 Signal Transformer –Specification subject to change without notice. 07.11

500 Bayview Avenue, Inwood, NY 11096

Toll Free 866-239-5777 • Tel 516-239-5777 • Fax 516-239-7208
