SER2012-801MLD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> SER2012-801MLD

SER2012-801MLD: DescriptionFixed Inductors SER2012 AEC-Q200 0.8 uH 20 % 35 A; CategoryPassive components; File Size188KB，4 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

SER2012-801MLD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SER2012-801MLD	-	-	View	Buy Now

SER2012-801MLD Overview

Fixed Inductors SER2012 AEC-Q200 0.8 uH 20 % 35 A

SER2012-801MLD Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	COILCRAFT
Product Category	Fixed Inductors
RoHS	Details
Termination Style	SMD/SMT
Shielding	Shielded
Inductance	800 nH
Tolerance	20 %
Maximum DC Current	35 A
Maximum DC Resistance	1.6 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Test Frequency	100 kHz
Termination	-
Mounting Style	PCB Mount
Length	19.69 mm
Width	19.55 mm
Height	11.94 mm
Application	Power
Qualification	AEC-Q200
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Core Material	Ferrite
Product	Fixed Inductors
Self Resonant Frequency	91 MHz
Factory Pack Quantity	150
Unit Weight	0.352740 oz

Preview

Download Datasheet

View All

Web

page

Sample

& buy

Tools &

software

Support

& FAQ

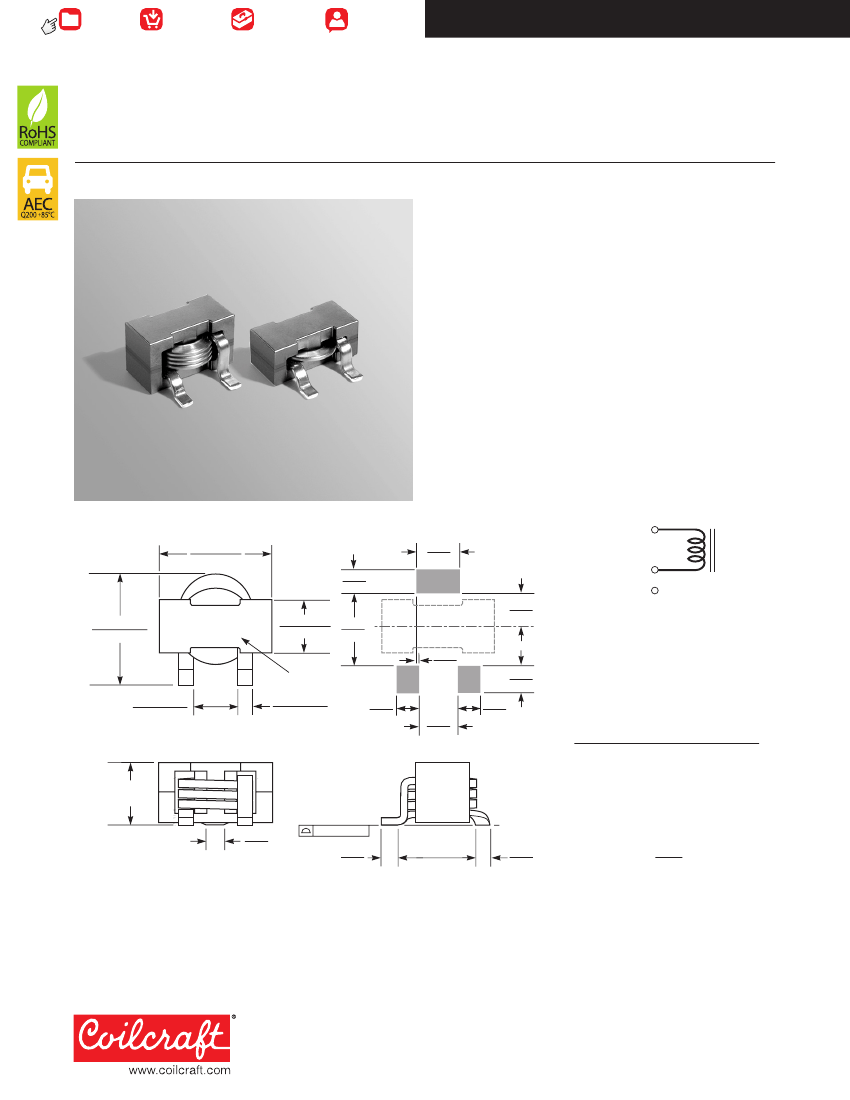

Document 349-1

Shielded Power Inductor – SER2000

• Designed for high current power supply applications

• Flat wire windings provide exceptionally low DCR

•

Isat

ratings as high as 100 A

Designer’s Kit C374

contains 2 each of nine parts.

Core material

Ferrite

Core and winding loss

See

www.coilcraft.com/coreloss

Terminations

RoHS compliant tin-silver over copper. Other

terminations available at additional cost.

Ambient temperature

–40°C to +85°C with (40°C rise)

Irms

current.

Maximum part temperature

+125°C (ambient + temp rise).

Derating.

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

PCB washing

Tested to MIL-STD-202 Method 215 plus an additional

aqueous wash. See

Doc787_PCB_Washing.pdf.

Recommended Land Pattern

0.755 ±0.02

19,18 ±0,51

0.160

4,06

0.290

7,37

0.210

5,33

0.736 ±0.034

18,70 ±0,86

SER20xx-xxxL

XXXX Y

0.365 ±0.02

9,27 ±0,51

0.470

11,94

0.015

0,38

Internal code

0.311 ±0.015

7,90 ±0,38

0.100 ±0.003

typ

2,54 ±0,076

0.150

3,81

0.150

3,81

0.185

4,70

Caution:

Terminal 3 is provided for mounting

stability only. This terminal is connected

to the winding of the inductor and must

not be connected to ground or any

circuitry.

0.260

6,60

Maximum

height

SER2009

SER2010

SER2011

SER2012

SER2013

SER2014

0.34 / 8,64

0.37 / 9,40

0.42 / 10,67

0.47 / 11,94

0.51 / 12,95

0.55 / 13,97

inches

Weight

6.65 – 6.89 g

7.46 – 7.90 g

8.63 – 9.08 g

9.92 – 10.3 g

10.8 – 11.4 g

11.7 – 12.4 g

Height

(See table)

0.130

3,30

0.004/0,102

0.125

3,18

0.515±0.015

13,08 ±0,37

0.100

2,54

Width of flat area on winding

Packaging

SER2009 200 per 13″ reel;

SER2010 200 per 13″ reel;

SER2011 170 per 13″ reel;

SER2012 150 per 13″ reel;

SER2013 150 per 13″ reel;

SER2014 125 per 13″ reel;

Dimensions are in

Plastic tape: 44 mm

wide, 0.4 mm thick, 32 mm pocket spacing, 9.25 pocket depth

wide, 0.4 mm thick, 32 mm pocket spacing, 10.5 pocket depth

wide, 0.4 mm thick, 32 mm pocket spacing, 11.6 pocket depth

wide, 0.4 mm thick, 32 mm pocket spacing, 13.0 pocket depth

wide, 0.5 mm thick, 32 mm pocket spacing, 14.0 pocket depth

wide, 0.5 mm thick, 32 mm pocket spacing, 15.0 pocket depth

Document 349-1

Revised 11/14/16

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
