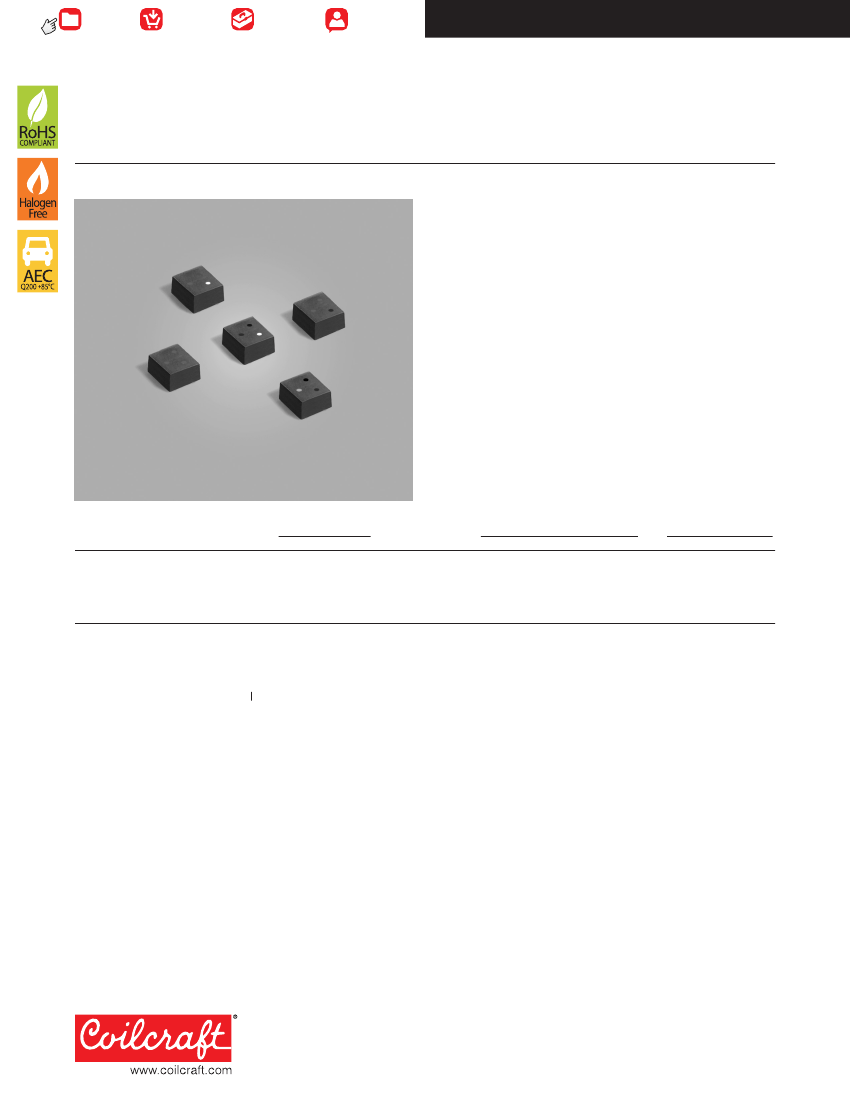

Document 692-1
Shielded Power Inductors – EPL3012
• Low profile shielded power inductors; 3 × 3 × 1.3 mm max.
• Very low DCR, high SRF ratings,
Isat
ratings up to 2.0 A
Designer’s Kit C437
contains 5 each of all values
Core material
Ferrite
Core and winding loss
See
www.coilcraft.com/coreloss
Environmental
RoHS compliant, halogen free
Terminations
RoHS compliant tin-silver-copper (96.5/3/0.5) over tin over
nickel over silver-platinum. Other terminations available at additional cost.
Weight
38 – 42 mg
Ambient temperature
–40°C to +85°C with (40°C rise)
Irms
current.
Maximum part temperature
+125°C (ambient + temp rise).
Derating.
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
2000/7″reel; 7500/13″ reel Plastic tape: 8 mm wide,
0.2 mm thick, 4 mm pocket spacing, 1.55 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Inductance
2
±20% (µH)
1.0
1.5
1.8
2.2
3.3
4.7
10
22
DCR (Ohms)
3
nom
max
0.060
0.069
0.076
0.097
0.136
0.165
0.316
0.718
0.066
0.075
0.084
0.106
0.150
0.181
0.348
0.790
SRF typ
4
(MHz)
110
103
92
76
62
52
32
18
2.
3.
4.
5.
Part
number
1
Isat
(A)
5
10% drop 20% drop 30% drop
0.85
0.70
0.65
0.55
0.50
0.47
0.34
0.17
1.4
1.2
1.1
0.95
0.90
0.85
0.59
0.38
2.0
1.7
1.6
1.4
1.1
1.0
0.80
0.61
Irms
(A)
6
20°C rise 40°C rise
1.7
1.5
1.4
1.3
1.1
0.90
0.60
0.42
2.2
1.9
1.8
1.7
1.4
1.1
0.79
0.54
EPL3012-102ML_
EPL3012-152ML_
EPL3012-182ML_
EPL3012-222ML_
EPL3012-332ML_
EPL3012-472ML_
EPL3012-103ML_
EPL3012-223ML_
1. When ordering, please specify
packaging
code:
EPL3012-223MLC
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (2000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (7500 parts per
full reel).
Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
DCR measured on a micro-ohmmeter.
SRF measured using Agilent/HP 4395A network analyzer or equivalent.
DC current at 25°C that causes the specified inductance drop from its
value without current.
Click for temperature derating information.
6. Current that causes the specified temperature rise from 25°C ambient.
This information is for reference only and does not represent absolute
maximum ratings.
Click for temperature derating information.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 692-1
Revised 10/09/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 692-2
Shielded Power Inductors – EPL3012 Series

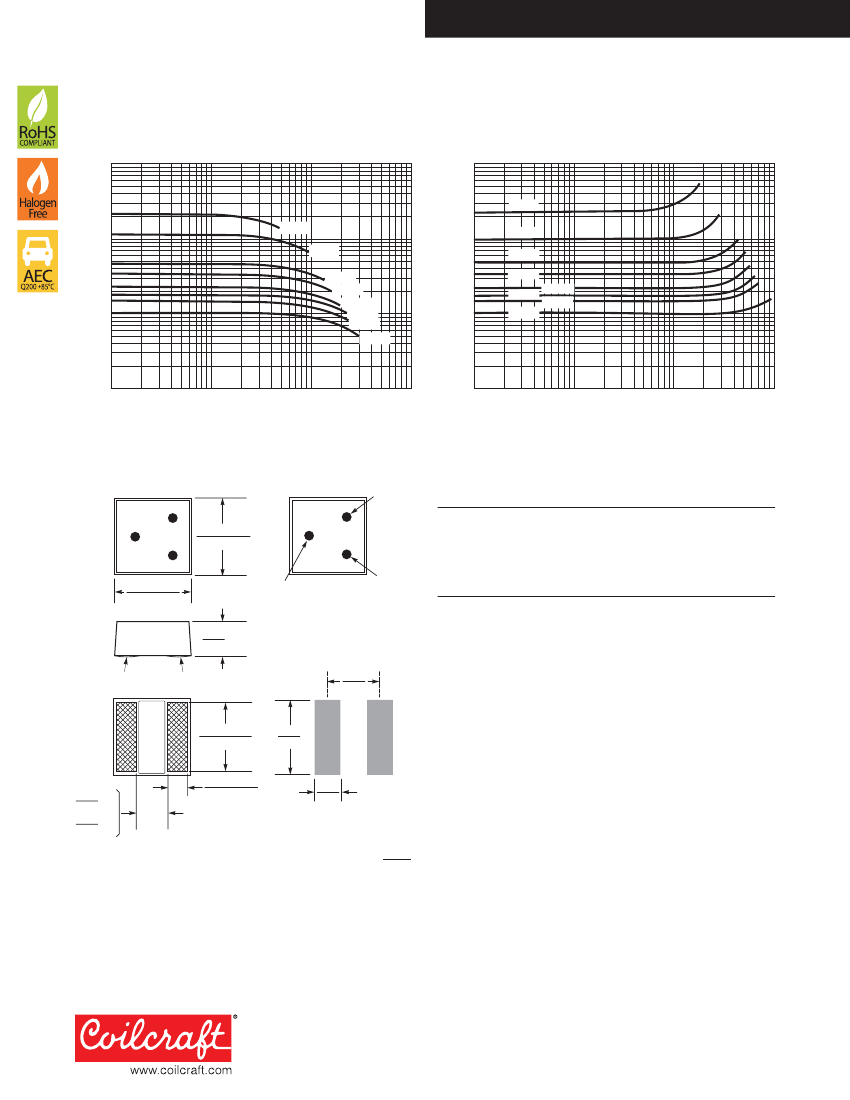

L vs Current
100
100
22 µH
L vs Frequency
Inductance (µH)
10
10 µH
4.7 µH
3.3 µH
2.2 µH
1.8 µH
1.5 µH
1.0 µH
Inductance (µH)
22 µH
10
10 µH
4.7 µH
3.3 µH
1.8 µH
2.2 µH
1.5 µH
1
1
1.0 µH
0.1
0.01
0.1
1
10
0.1
0.1
1
10
100
Current (A)
Frequency (MHz)
2nd
significant
digit
0.118 ±0.008
3,0 ±0,2
1st
significant
digit
Part Marking
Part number
EPL3012-102
EPL3012-152
EPL3012-182
EPL3012-222
EPL3012-332
EPL3012-472
EPL3012-103
EPL3012-223
Value
1.0 µH
1.5 µH
1.8 µH
2.2 µH
3.3 µH
4.7 µH
10 µH
22 µH
1st digit
Brown
Brown
Brown
Red
Orange
Yellow
Brown
Red
2nd digit
Black
Green
Gray
Red
Orange
Violet
Black
Red
Multiplier
Red
Red
Red
Red
Red
Red
Orange
Orange
0.118 ±0.008
3,0 ±0,2
Multiplier
Part Marking
0.051
max
1,30
Note: All marked parts have three dots. Black dot, used only on the -102 and -103
as second significant digit, may be very difficult to see.
Start
Finish
0.080
2,03
0.106 ±0.008
2,69 ±0,20
0.114
2,90
0.043
min
1,10
0.050
typ
1,26
0.030 ±0.008
0,77 ±0,20
0.039
1,0
Recommended
Land Pattern
Dimensions are in
inches
mm
Small surface blemishes are not unusual and do
not adversely affect performance.
Wire may be visible inside the voids.
Acceptable void sizes:
Top: 0.01 in / 0,254 mm × 0.01 in / 0,254 mm
Sides: 0.02 in / 0,5 mm × 0.047 in / 1,2 mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 692-2
Revised 10/09/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
