RLZ6.2B: Description10 V, 0.5 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE; CategoryDiscrete semiconductor diode; File Size172KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

RLZ6.2B Overview

10 V, 0.5 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

RLZ6.2B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	O-LELF-R2
Contacts	2
Manufacturer packaging code	LL-34
Reach Compliance Code	compli
ECCN code	EAR99
Is Samacsys	N
Other features	HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	10 Ω
JESD-30 code	O-LELF-R2
JESD-609 code	e3
Maximum knee impedance	300 Ω
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	6.2 V
Maximum reverse current	5 µA
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	2.53%
Working test current	20 mA
Base Number Matches	1

Preview

Download Datasheet

View All

RLZ3.6B

Diodes

Zener diode

RLZ3.6B

Applications

Voltage regulation

External dimensions

(Unit : mm)

(第１色帯)

CATHODE　BAND

(1st COLOR BAND)

(2nd COLOR

(第２色帯)

BAND)

(3rd

(第３色帯)

COLOR BAND)

0.4

Construction

Silicon planar

ROHM : LLDS

JEDEC : LL-34

3.4±0.2

φ1.5MAX

Land size figure

(Unit : mm)

5 .0

R1 .4

1 .4

1. 4

1.6

φ1.4±0.1

Features

1) Grass seald envelope. (LLDS)

2) High reliability.

Structure

ＬＬＤＳ

Taping specifications

(Unit : mm)

1.75±0.1

4.0±0.1 2.0±0.05

1.5±0.1

0.3MAX

3.5±0.05

8.0±0.3

1.8±0.2

TE-11

4.0±0.1

φ1.0±0.2

3.8±0.1

1.6±0.1

Absolute maximum ratings

(Ta=25°C)

Parameter

Power dissipation

Junction temperature

Storage temperature

Symbol

Tstg

Limits

500

175

-65 to +175

Unit

℃

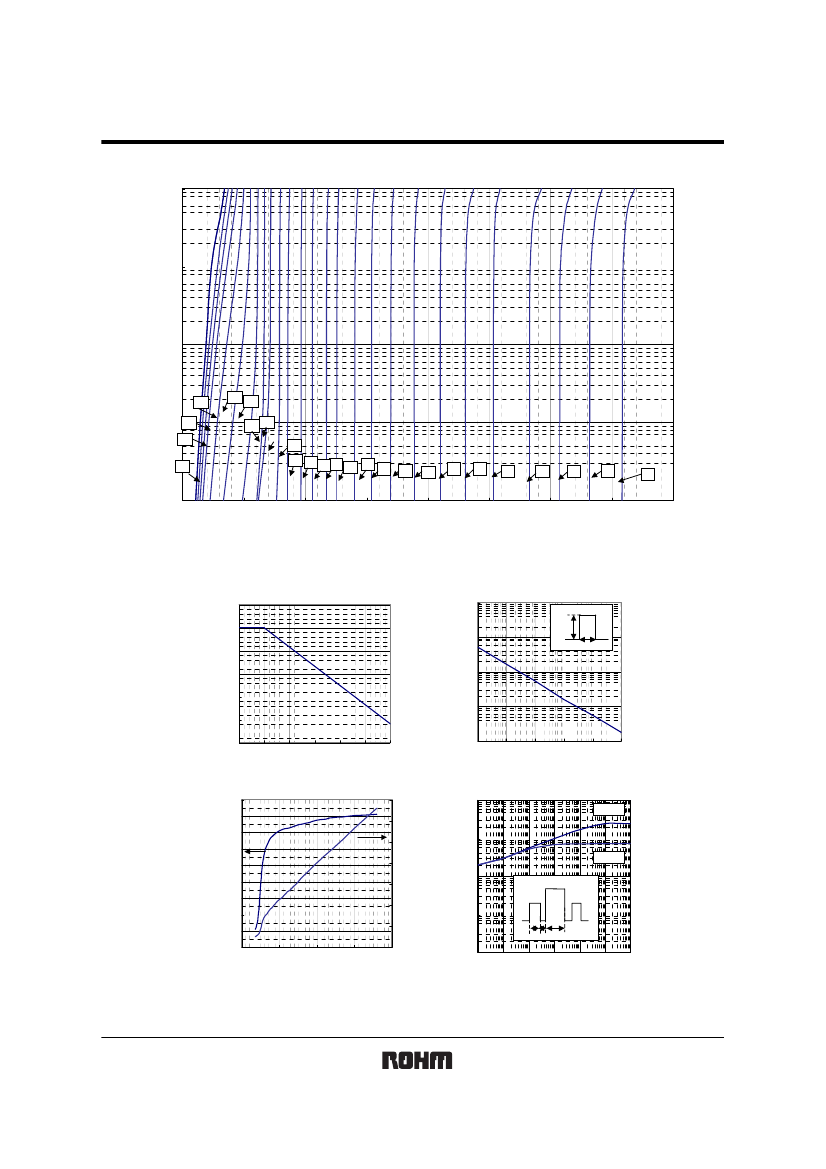

Rev.A

1/4
