4420P-T01-105 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 4420P-T01-105

4420P-T01-105: DescriptionResistor Networks & Arrays 1M 2% 20pin; CategoryPassive components; File Size299KB，3 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

4420P-T01-105 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4420P-T01-105	-	-	View	Buy Now

4420P-T01-105 Overview

Resistor Networks & Arrays 1M 2% 20pin

4420P-T01-105 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bourns
Product Category	Resistor Networks & Arrays
RoHS	N
Product	Networks
Termination Style	SMD/SMT
Resistor Values	1 MOhms
Tolerance	2 %
Circuit Type	Isolated
Number of Resistors	10
Number of Pins	20
Temperature Coefficient	100 PPM / C
Package / Case	SOL-20
Length	12.95 mm
Width	10.34 mm
Height	2.65 mm
Operating Temperature Range	- 55 C to + 125 C
Lead Spacing	1.27 mm
Power per Element	0.16 W
Factory Pack Quantity	40
Unit Weight	0.022681 oz

Preview

Download Datasheet

View All

Features

■

RoHS compliant*

■

Standard E.I.A. package compatible with

■

Standard electrical schematics: isolated,

automatic placement equipment

■

Compliant leads to reduce solder joint

fatiguing

■

Tape and reel packaging standard

bussed, dual terminator

■

Custom circuits are available

■

Now available with improved tolerance to

±0.5 %

Product Characteristics

Resistance Range

................... 10 ohms to 2.2 megohms

Maximum Operating Voltage ...........50 V

Temperature Coefﬁcient of Resistance

and above..............±100 ppm/°C

below 50

.....................±250 ppm/°C

TCR Tracking.........................50 ppm/°C

maximum; equal values

Operating Temperature

................................-55 °C to +125 °C

Insulation Resistance

................ 10,000 megohms minimum

Dielectric Withstanding Voltage

...........................................200 VRMS

Lead Solderability .....Meet requirements

of MIL-STD-202 Method 208

Environmental Characteristics

TESTS PER MIL-STD-202 ...... ∆R MAX.

Short Time Overload..................±0.25 %

Load Life ....................................±1.00 %

Moisture Resistance ..................±0.50 %

Resistance to Soldering Heat ....±0.25 %

Thermal Shock ..........................±0.25 %

Physical Characteristics

Flammability ........ Conforms to UL94V-0

Lead Frame Material

.........................Copper, solder coated

Body Material.................. Novolac epoxy

How To Order

WATTS

Model

(44 = SMD SOL

Pkg.)

Number of Pins

Electrical Conﬁguration

• 1 or 4 = Isolated*

• 2 = Bussed*

• 3 = Dual Terminator*

Resistance Code

• First 2 digits are signiﬁcant

• Third digit represents the

number of zeros to follow.

Resistance Tolerance

• Blank = ±2 % (see “Resistance Tolerance”

on next page for resistance range)

• F = ±1 % (100 ohms - 1 megohm)

• D = ±0.5 % (100 ohms - 1 megohm)

Terminations

• All electrical conﬁgurations EXCEPT T03:

LF = Tin-plated (RoHS compliant)

• ONLY electrical conﬁguration T03:

L = Tin-plated (RoHS compliant)

*For tube packaging, use T01, T02, T03 or T04.

Consult factory for other available options.

–

1 2 1

4 7 1

4 –4 1

2 C

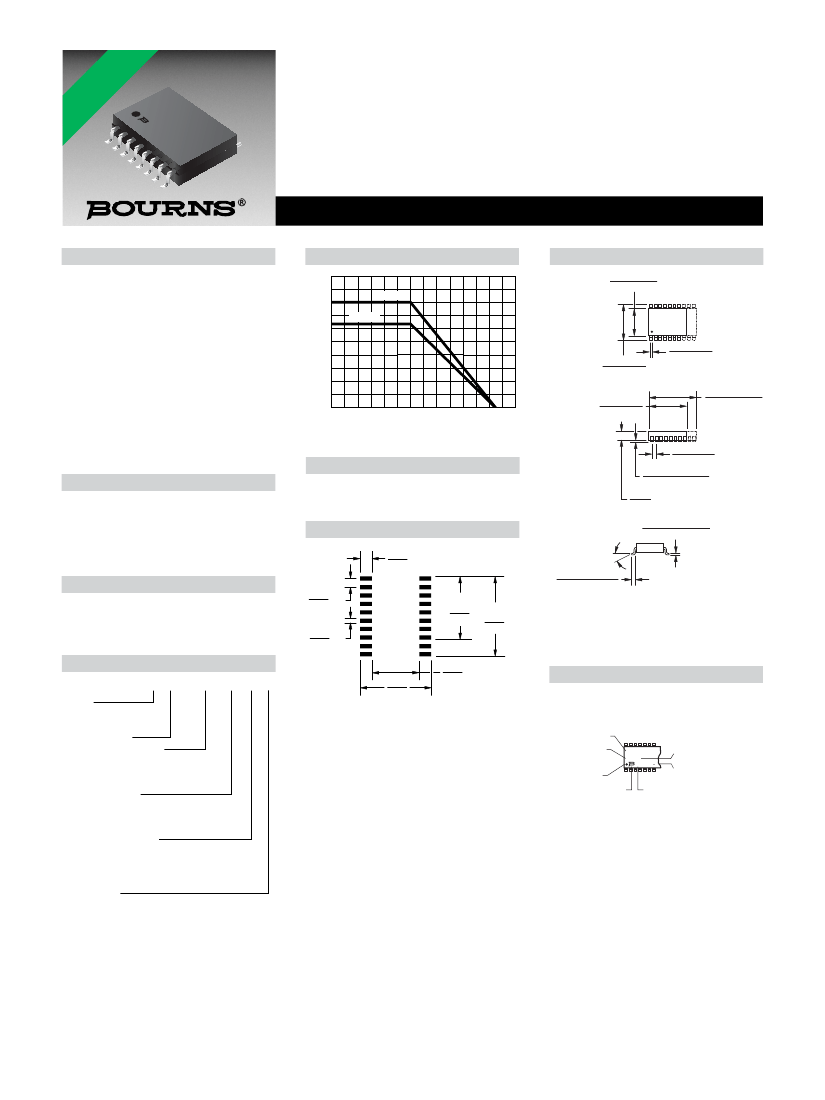

4400P Series - Thick Film Surface Mounted Wide Body

Package Power Temp. Derating Curve

2.25

2.00

1.75

1.50

1.25

1.00

.75

.50

.25

125

AMBIENT TEMPERATURE (

C )

4416P

Product Dimensions

7.493

.076

(.295

.003)

4420P

10.34

.25

(.407

.010)

.406

.025

(.016

.001)

10.41

.05

(.410

.003)

12.95

.05

(.510 + .001/ -.002)

Package Power Rating at 70 °C

4420P .....................................2.00 watts

4416P .....................................1.60 watts

Recommended Land Pattern

2.0

TYP.

(.079)

8 MAX.

.94 + .33/ - .35

(.037 + .013/ - .014)

1.27

.076

TYP.

(.050

.003*)

.127 + .127/ - .000

(.005 + .005/ - .000)

2.65

MAX.

(.104)

.305 + .000/ - .076

(.012 + .000/ - .003)

1.27

TYP.

(.050)

.63

TYP.

(.025)

SO-16L

.63

(.025)

SO-20L

12.07

(.475)

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

44 20 P - 1 - 103 __ LF

11.6

(.457)

7.6

(.299)

NOTE: Land pattern dimensions are based on

design rules established by the Institute for Inter-

connecting and Packaging Electronic Circuits in

IPC-SM-782.

Typical Part Marking

Represents total content. Layout may

vary.

PART

NUMBER

RESISTANCE

CODE

DATE CODE

COUNTRY OF MANUFACTURE

(C = COSTA RICA)

CIRCUIT

PIN ONE

INDICATOR

4416P-

2-472

CYYWW

For Standard Values Used in

Capacitors, Inductors, and Resistors,

click here.

MANUFACTURER'S

TRADEMARK

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.
