SS1H4LW-SS1H20LW
Taiwan Semiconductor
CREAT BY ART

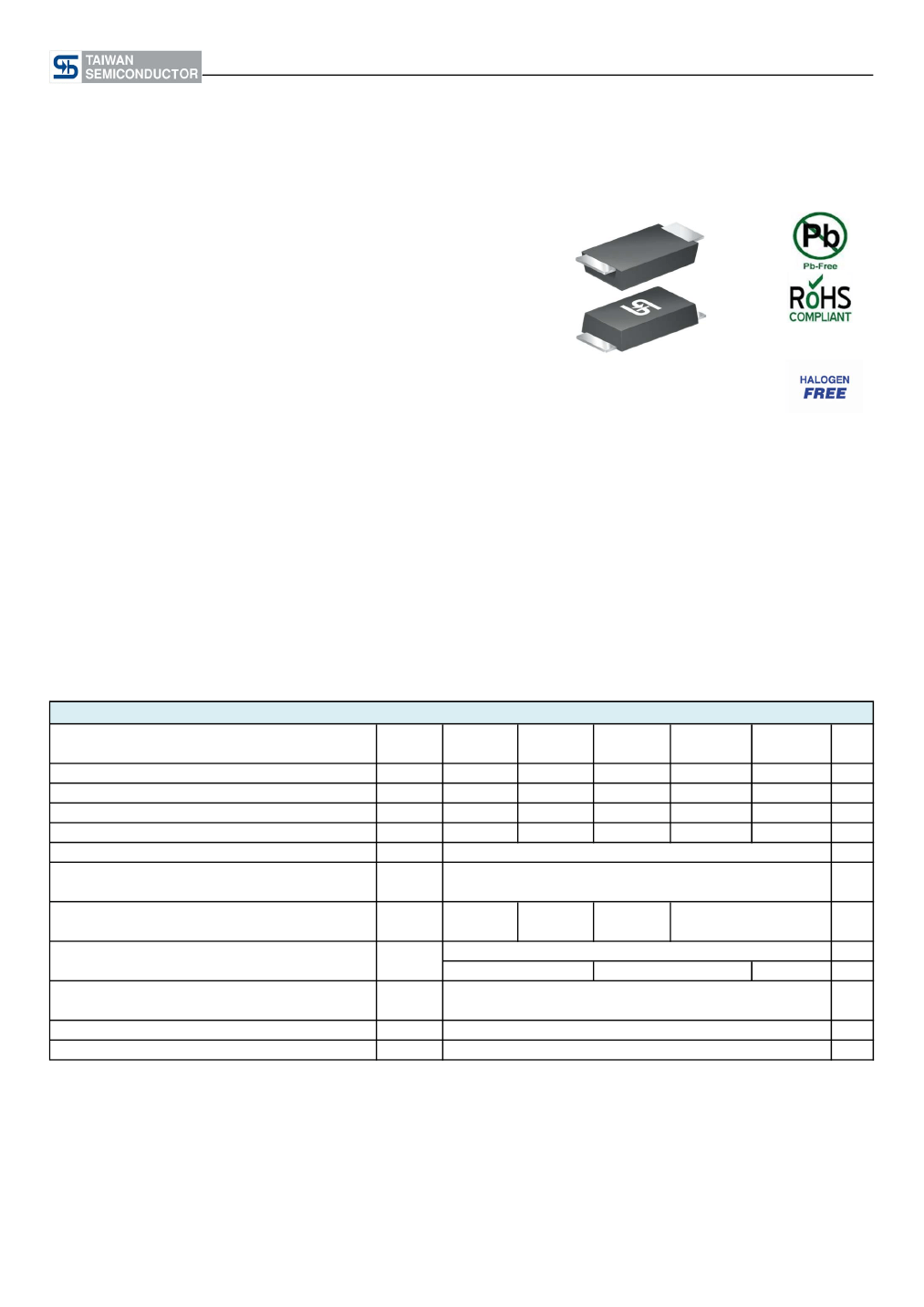

1A, 40V - 200V Surface Mount Schottky Barrier Rectifiers
FEATURES
- Low power loss, high efficiency
- Ideal for automated placement
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
SOD-123W
MECHANICAL DATA
Case:
SOD-123W
Molding compound: UL flammability classification rating 94V-0
Moisture sensitivity level: level 1, per J-STD-020
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per J-STD-002
Meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
16 mg (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Marking Code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@1A
Maximum reverse current @ rated V
R
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=25°C
T
J
=125°C
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
R
θJL
R
θJA
T
J
T
STG
0.65
0.70
SYMBOL
SS1H4LW SS1H6LW SS1H10LW SS1H15LW SS1H20LW
UNIT
1H4LW
40
28
40
1H6LW
60
42
60
1H10LW
100
70
100
1
30
0.80
0.5
0.3
25
80
- 55 to +175
- 55 to +175
0.2
0.1
0.85
1H15LW
150
105
150
1H20LW
200
140
200
V
V
V
A
A
V
µA
mA
°C/W
°C
°C
Version: A1606
SS1H4LW-SS1H20LW
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
SS1HxLW
(Note 1, 2)
PART NO.
SUFFIX
H
PACKING CODE
RV
RQ
PACKING CODE
SUFFIX
G
SOD-123W
3,000 / 7" Plastic reel
10,000 / 13" Paper reel
PACKAGE
PACKING
Note 1: "x" defines voltage from 40V (SS1H4LW) to 200V (SS1H20LW)
Note 2: Whole series with green compound (halogen-free)
EXAMPLE
EXAMPLE P/N
SS1H4LWHRVG
PART NO.
SS1H4LW
PART NO.
SUFFIX
H
PACKING CODE
RV
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)

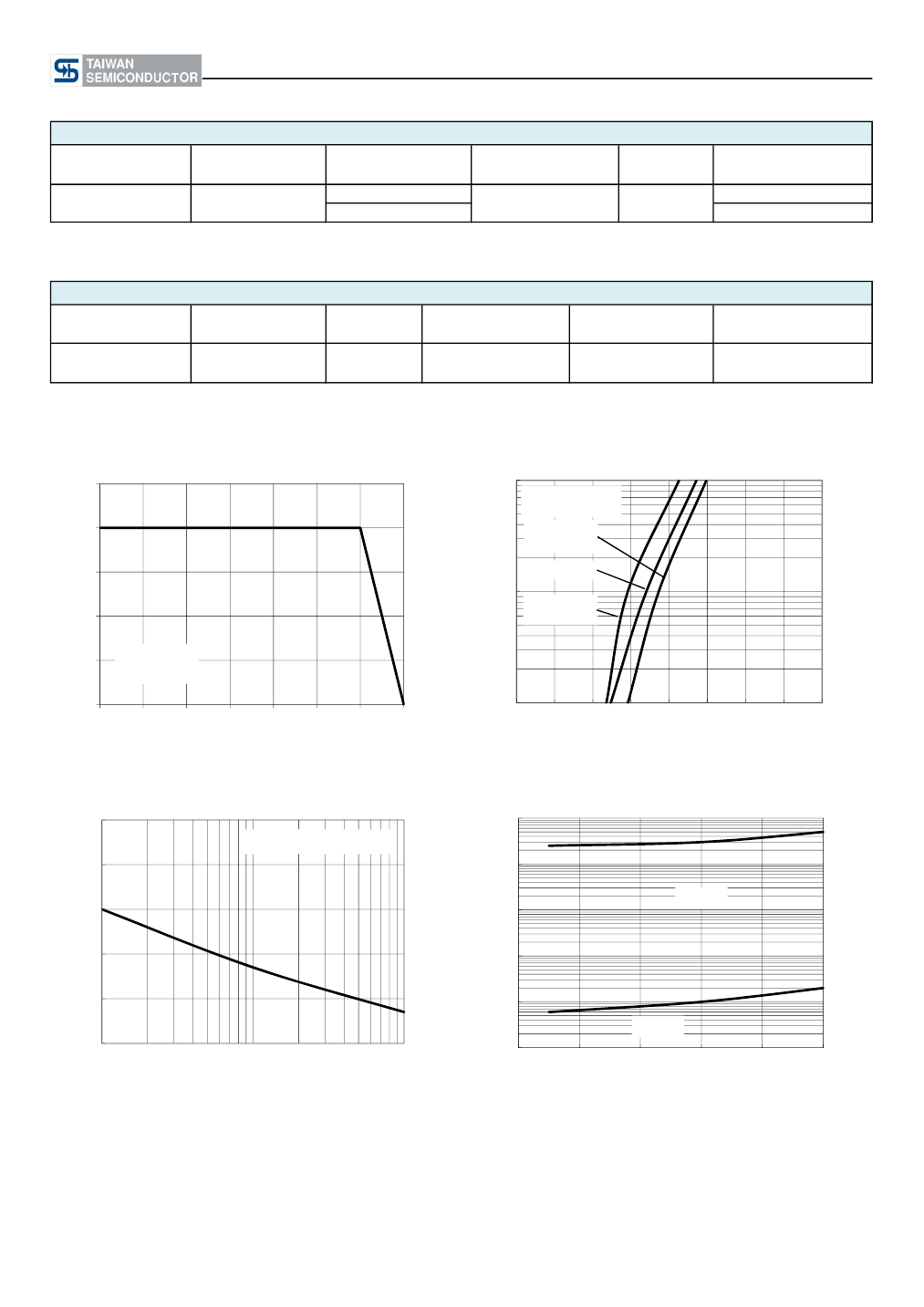

FIG.1 FORWARD CURRENT DERATING CURVE
1.25
INSTANTANEOUS FORWARD CURRENT (A)
AVERAGE FORWARD CURRENT (A)
10
Pulse width=300μs
1% duty cycle
SS1H15LW
SS1H20LW
SS1H10LW
1
SS1H4LW
SS1H6LW
FIG. 2 TYPICAL FORWARD CHARACTERISTICS
1
0.75
0.5
0.25
Resistive or
inductive load
0
0
25
50
75
100
125
150
175
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
LEAD TEMPERATURE (
°
C)
FORWARD VOLTAGE (V)
50
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
8.3ms single half sine wave
INSTANTANEOUS REVERSE CURRENT (μA)
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
100
PEAK FORWARD SURGE CURRENT (A)
40
10
T
J
=125°C
30
1
20
0.1
10
0.01
T
J
=25°C
0
20
40
60
80
100
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
0.001
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Version: A1606
SS1H4LW-SS1H20LW
Taiwan Semiconductor

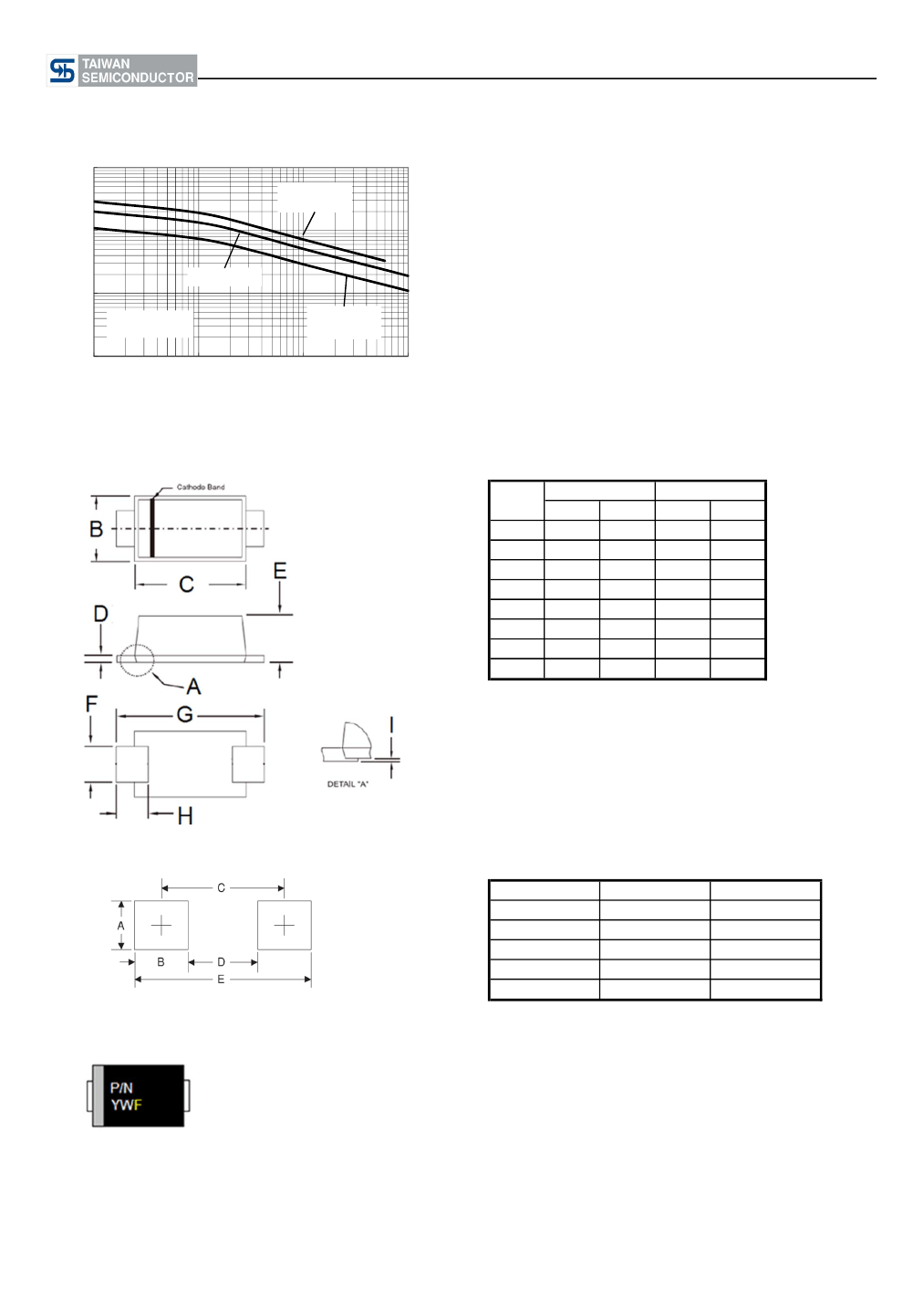

FIG. 5 TYPICAL JUNCTION CAPACITANCE
1000
SS1H4LW
SS1H6LW
CAPACITANCE (pF)
100
SS1H10LW
10
f=1.0MHz
Vsig=50mVp-p
1
0.1
1
10
100
SS1H15LW
SS1H20LW
REVERSE VOLTAGE (V)
PACKAGE OUTLINE DIMENSIONS
SOD-123W
DIM.
B
C
D
E
F
G
H
I
Unit (mm)
Min
1.70
2.60
0.10
0.90
0.90
3.60
0.50
0.00
Max
1.90
2.90
0.22
1.02
1.05
3.80
0.85
0.10
Unit (inch)
Min
0.067
0.102
0.004
0.035
0.035
0.142
0.020
0.000
Max
0.075
0.114
0.009
0.040
0.041
0.150
0.033
0.004
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.4
1.2
3.1
1.9
4.3
Unit (inch)
0.055
0.047
0.122
0.075
0.169
MARKING DIAGRAM
P/N
YW
F
= Marking Code
= Date Code
= Factory Code
Version: A1606
SS1H4LW-SS1H20LW
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Version: A1606
