560L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 560L

560L: DescriptionAudio Transformers / Signal Transformers LOW PROFILE; CategoryPower management transformer; File Size153KB，2 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com; Environmental Compliance

Download Datasheet Parametric View All

560L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	560L	-	-	View	Buy Now

560L Overview

Audio Transformers / Signal Transformers LOW PROFILE

560L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hammond
Reach Compliance Code	compliant
ECCN code	EAR99
Transformer type	BROADCAST AUDIO TRANSFORMER
Base Number Matches	1

Preview

Download Datasheet

View All

10/5/2018

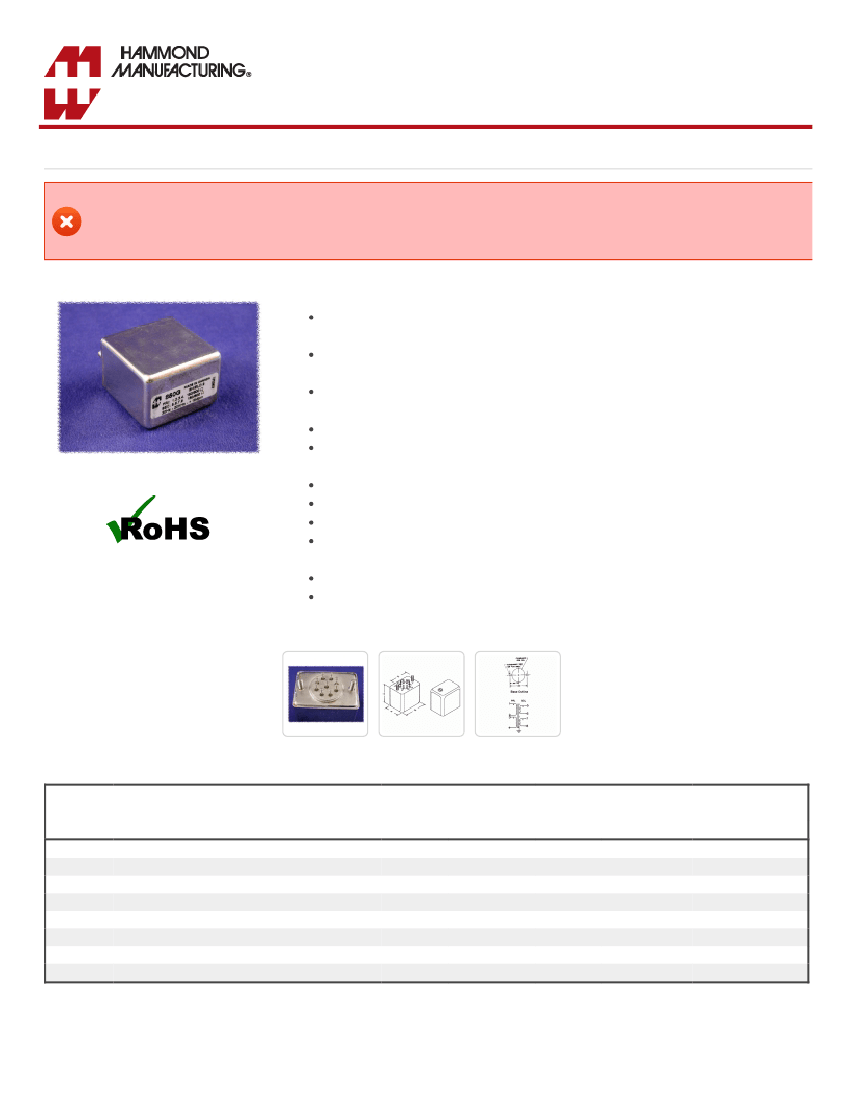

Audio Broadcast Quality (850 Series) - Hammond Mfg.

Quality Products. Service Excellence.

Audio Broadcast Quality

850 Series

Note:

This product line has been discontinued as a stocked series. Information is for reference only. It has been replaced with

850A Series.

For alternative solution assistance, please contact Hammond Customer Service -

sales@hammfg.com

or USA

(716) 630-7030, Canada and International (519) 822-2960.

Features

Deep-drawn steel case with tin plated finish, with two convenient 6-32 mounting studs

with hardware.

Hermetically sealed for stable characteristics and long life. Header has nine 0.22" long

solder terminals.

Wide frequency response +/- 0.5 db max. from 20 Hz. to 20 Khz. (except units over 5K

ohms impedance, may be down 1 db @ 20 Khz.)

Insertion loss of apx. 1 db.

Maximum power level +15 dbm. with specified characteristics, or higher levels with

reduced low frequency performance.

Distortion is apx. 1.5% @ 20 Hz. under full power.

Electrostatic shield between pri. & sec. connected to terminal 9.

Humbucking construction

Balanced split windings on pri. & sec. for circuit versatility. Primary may be used as a

secondary and vice versa for impedance matching.

Overall dimensions 1.7" (43.2 mm) x 1.2" (30.5 mm) x 1.65" (41.9 mm) high max.

Shipping weight 0.4 lb. (0.18 kg)

Gallery

Nominal Impedance

(Ohms)

Part No.

850C

850E

850G

850H

850J

850L

850N

850Q

Application

Emitter or MIC to Line

Line Isolation or Hybrid

Output to Line, or Line to Base

Output to Line, Matching or Bridging

Output to Line, Matching or Interstage

Interstage or Isolating

Primary

12/48

50/200

150/600

5K/20K

150/600

10K/40K

Secondary

150/600

300/1200

1200/4800

150/600

10K/40K

Nominal Resistance

(Ohms) +/- 20%

Primary

2240

4890

Secondary

140

570

4980

Replaced with

Part No.

850CA

850EA

850GA

850HA

850JA

850LA

850NA

850QA

Data subject to change without notice

https://www.hammfg.com/electronics/transformers/audio/850

1/2
