VCR07L471KGA: DescriptionMultilayer Ceramic Capacitors MLCC - Leaded 470.PF 500V; CategoryPassive components; File Size94KB，3 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

VCR07L471KGA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	VCR07L471KGA	-	-	View	Buy Now

VCR07L471KGA Overview

Multilayer Ceramic Capacitors MLCC - Leaded 470.PF 500V

VCR07L471KGA Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	KEMET
Product Category	Multilayer Ceramic Capacitors MLCC - Leaded
Termination Style	Radial
Capacitance	470 pF
Voltage Rating DC	500 VDC
Dielectric	C0G
Tolerance	10 %
Lead Spacing	5.08 mm
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 200 C
Product	General Type MLCCs
Length	0.2 in
Width	0.1 in
Height	0.3 in
Qualification	MIL-PRF-20
Operating Temperature Range	- 55 C to + 200 C
Voltage Rating	500 V
Capacitance - nF	0.47 nF
Temperature Coefficient / Code	C0G (NP0)

Preview

Download Datasheet

View All

High Temperature (+200°C), High Voltage

Radial Ceramic Cased Capacitors (C3)

VCR/VRR Series

Ceramic cased capacitors, with a new, unique design concept which eliminates potential problems associated with conven-

tional epoxy cased epoxy potted capacitors.

Major application is high voltage power supplies. High voltage capacitors are also utilized on high voltage meter multiplier and

RF circuits.

INSTALLATION:

Parts should be soldered using a heat sink between the soldering point and the part using a soldering iron rated 18-30 watts.

Remove all traces of flux or other contamination resulting from the soldering operation. An intermittent conducting path

between the leads, at high voltage, could cause breakdown. Soldering temperature should not exceed +300°C.

PART NUMBER AND ORDERING INFORMATION

V

PRODUCT FAMILY

V = High Voltage Radial

Capacitors

C

R

40

M 102

K

W A

TEST LEVEL

S = KEMET standard screening

A = MIL-PRF-20, Group A Test

X = Special

TEMP. CHARACTERISTIC

C = C0G (NP0)/BP

R = X7R (BX)

LEAD MATERIALS

G = Gold plated Copper clad steel

W = Solder coated Copper clad steel

LEAD CONFIGURATION

R = Radial

CAPACITANCE TOLERANCES

J = ±5%

M = ±20%

K = ±10%

Other tolerances available upon request

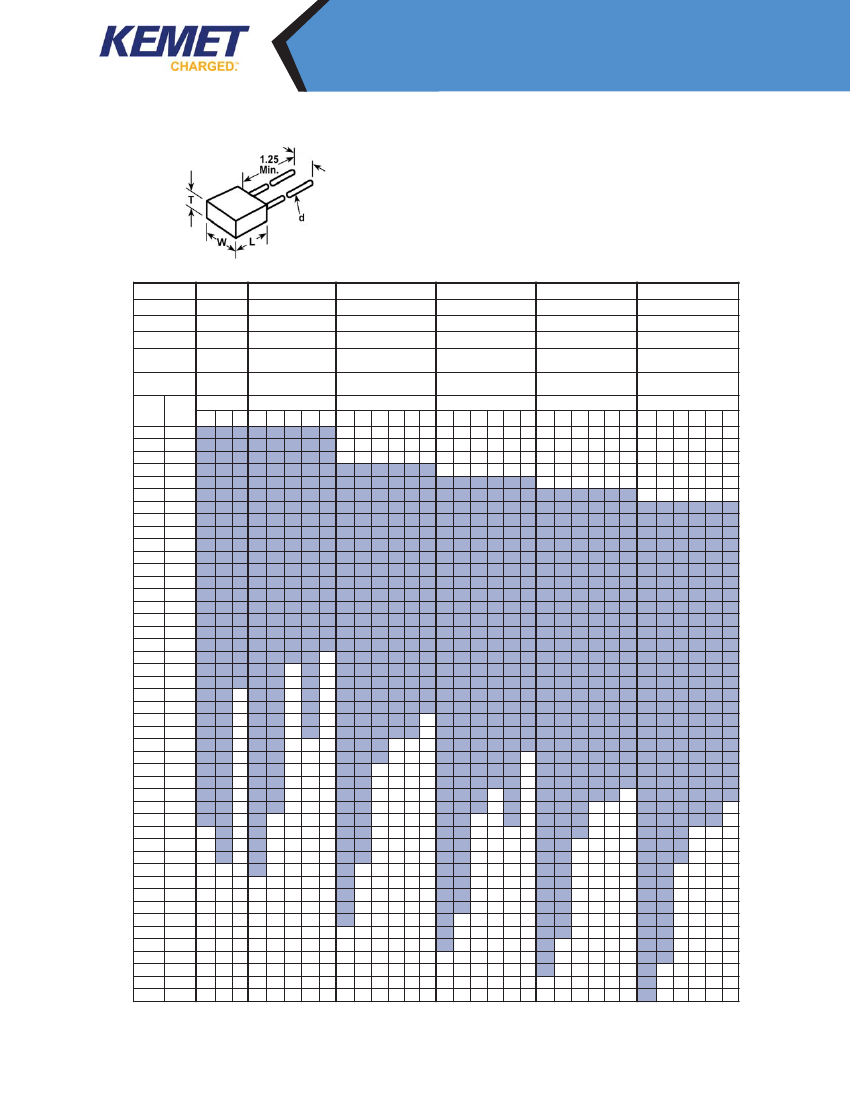

STYLE

Case Size.

See data sheet for detail dimensions

VOLTAGE RATING

L = 500vdc

M = 1000vdc

T = 2000vdc

V = 3000vdc

W = 4000vdc

X = 5000vdc

CAPACITANCE CODE

3 Digit code system expressed in

picofarads (pF)

103 = 10,000pF

151 = 150pF

MARKING

Manufacturer’s ID

Capacitance

Voltage

Date Code

EXAMPLE

KEC

106J

500V

123

23
