ABS07-32768KHZ-9-1-T datasheet, PDF

Datasheet> All Categories > Passive components> ABS07-32768KHZ-9-1-T

ABS07-32768KHZ-9-1-T: DescriptionCrystals 32.768KHz 9pF 10ppm -40C +85C; CategoryPassive components; File Size4MB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ABS07-32768KHZ-9-1-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ABS07-32768KHZ-9-1-T	-	-	View	Buy Now

ABS07-32768KHZ-9-1-T Overview

Crystals 32.768KHz 9pF 10ppm -40C +85C

ABS07-32768KHZ-9-1-T Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Abracon
Product Category	Crystals
RoHS	Details
Termination Style	SMD/SMT
Package / Case	3.2 mm x 1.5 mm
Load Capacitance	9 pF
Frequency	32.768 kHz
Tolerance	10 PPM
Drive Level	0.1 uW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	3.2 mm
Width	1.5 mm
Height	0.9 mm
Packaging	Cut Tape
Packaging	Reel
Type	Low Profile Crystal
ESR	70 kOhms
Mounting Style	SMD/SMT
Factory Pack Quantity	3000
Unit Weight	0.000564 oz

Preview

Download Datasheet

View All

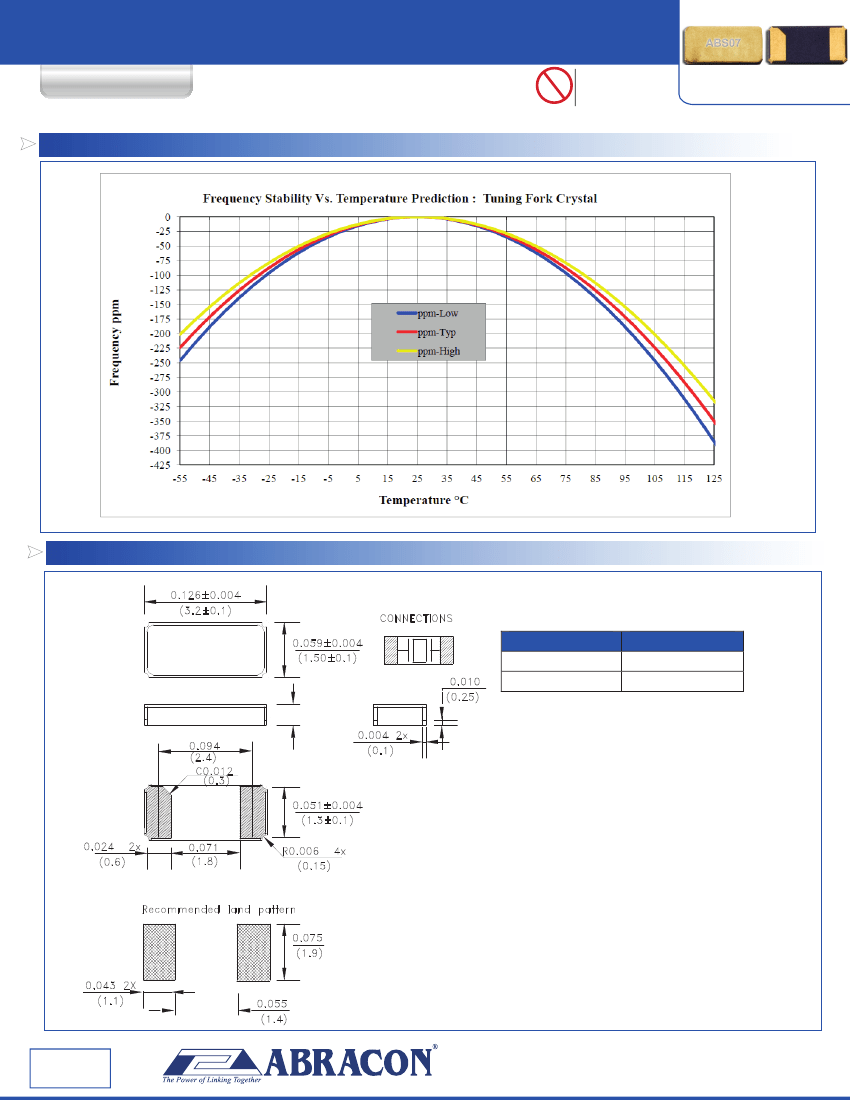

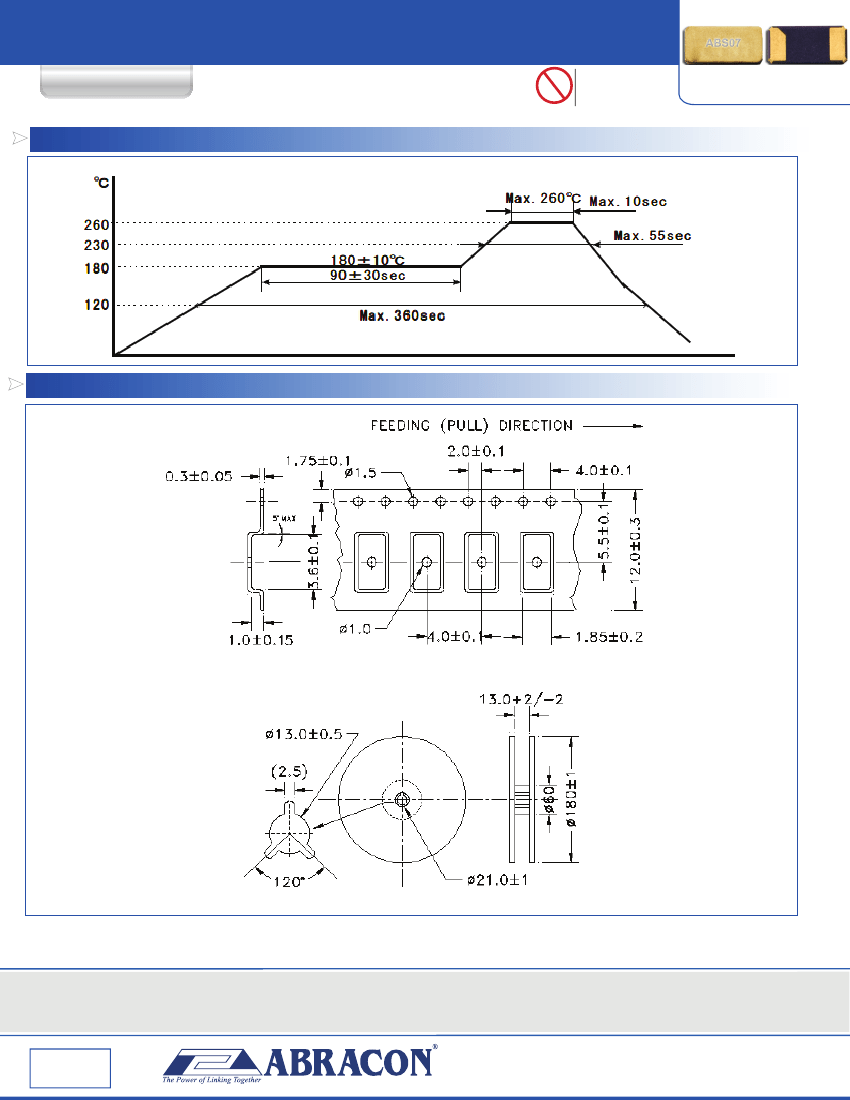

32.768kHz SMD LOW PROFILE CRYSTAL

ABS07

FEATURES:

Moisture Sensitivity Level (MSL) – This product is

Hermetically Sealed and not Moisture Sensitive -

MSL = N/A: Not Applicable

RoHS/RoHS II

3.2 x 1.5 x 0.9 mm

• Low frequency in small size SMD

• 0.9mm height ideal for high density circuit boards

• Seam sealed ceramic package offers excellent environmental & heat resistance

• Extended temperature -55°C to +125°C for industrial applications

• Wide range in communication & measuring equipment

• Commercial & Industrial applications

• Wireless communications

• PDA and Smartphone

APPLICATIONS:

STANDARD SPECIFICATIONS

Parameters

Frequency

Operation Mode

Operating Temperature

Storage Te mperature

Frequency Tolerance @+25°C

Temperature Coefficient:

Turn-over temperature:

Equivalent series resistance (R1)

Shunt capacitance (C0)

Load capacita nce (CL)

Drive Level

Q value

Aging@25°C±3°C

Insulation Resistance

10000

-3

500

0.9 ~ 1.2

12.5

0 .1

30000

ppm

MΩ

First year

@ 100Vdc ± 15V

0 .5

-40

-55

-20

-0.040

+20

-0.036

+25

+30

Minimum

Typical

32.768

Flexural Mode (Tuning Fork)

+85

+125

+20

ºC

ppm

ppm/T²

ºC

kΩ

µW

See options

Maximum

Units

kHz

Notes

OPTIONS AND PART IDENTIFICATION (left blank if standard)

ABS07 - 32.768 kHz -

Height

Blank: 0.9mm max.

1: 0.65mm max.

Load Capacitance

Blank: 12.5pF

9: 9pF

7: 7pF

6: 6pF

4P*: 4pF

Operating Temp. Range

Blank: -40 ~ +85°C

H: -40 ~ +125°C

W: -55 ~ +125°C

Packaging

Blank: Bulk

T: Tape & Reel

(3000pcs/reel)

Freq. Tolerance

Blank: ±20ppm

1: ±10ppm

4: ±30ppm

Note: *Option “4P” is only available with standard height (0.9mm max).

ABRACON IS

ISO9001:2008

CE RTIFIED

CERTIFIED

LLC

2 Faraday, Suite# B

Irvine

CA 92618

Revised: 08.19.15

Ph. 949.546.8000

Fax. 949.546.8001

Visit

www.abracon.com

for Terms and Conditions of Sale
