2220HC562KA11A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 2220HC562KA11A

2220HC562KA11A: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 3KV 5600pF X7R 2220 10% Tol HI VOLT; CategoryPassive components capacitor; File Size128KB，6 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

2220HC562KA11A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2220HC562KA11A	-	-	View	Buy Now

2220HC562KA11A Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 3KV 5600pF X7R 2220 10% Tol HI VOLT

2220HC562KA11A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	, 2220
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0056 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	2.794 mm
JESD-609 code	e4
length	5.7 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, 7 Inch
positive tolerance	10%
Rated (DC) voltage (URdc)	3000 V
size code	2220
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Palladium/Silver (Pd/Ag)
Terminal shape	WRAPAROUND
width	5 mm

Preview

Download Datasheet

View All

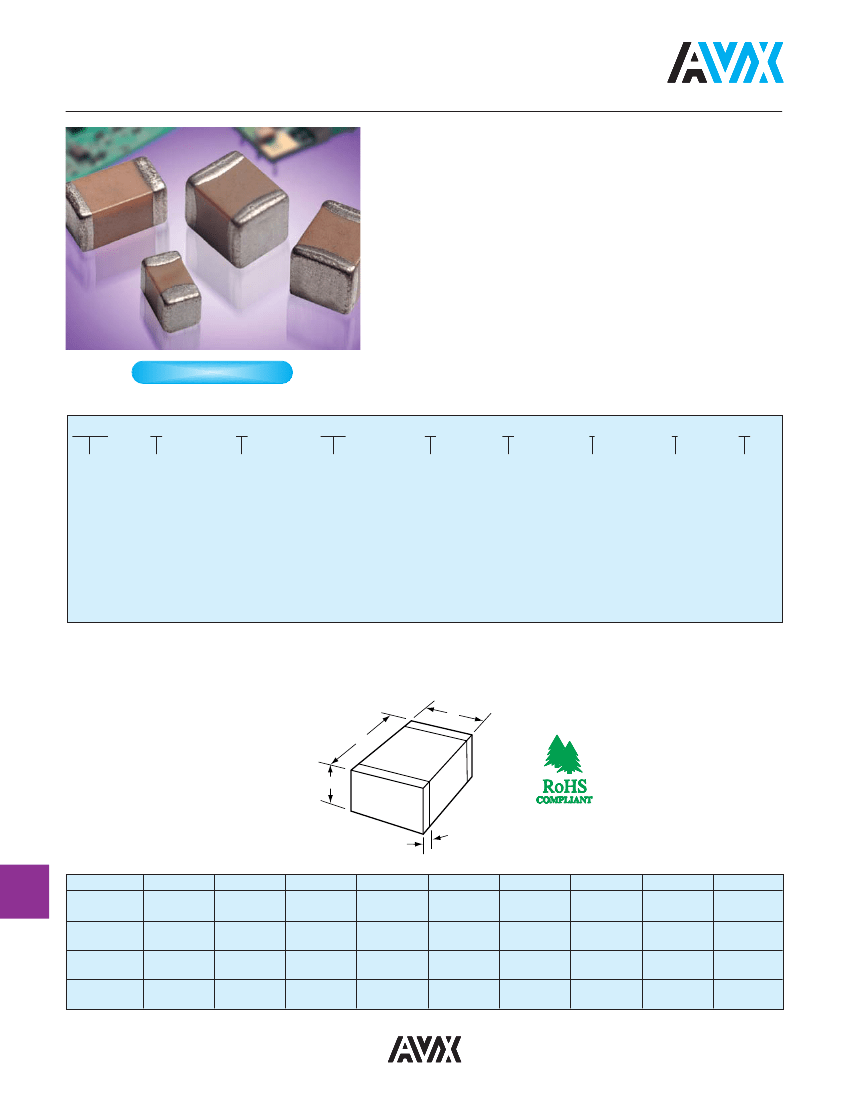

High Voltage MLC Chips

For 600V to 5000V Applications

High value, low leakage and small size are difficult parameters to obtain in

capacitors for high voltage systems. AVX special high voltage MLC chip

capacitors meet these performance characteristics and are designed for

applications such as snubbers in high frequency power converters,

resonators in SMPS, and high voltage coupling/dc blocking. These high

voltage chip designs exhibit low ESRs at high frequencies.

Larger physical sizes than normally encountered chips are used to make

high voltage MLC chip products. Special precautions must be taken in

applying these chips in surface mount assemblies. The temperature

gradient during heating or cooling cycles should not exceed 4ºC per

second. The preheat temperature must be within 50ºC of the peak

temperature reached by the ceramic bodies through the soldering process.

Chip sizes 1210 and larger should be reflow soldered only. Capacitors may

require protective surface coating to prevent external arcing.

For 1825, 2225 and 3640 sizes, AVX offers leaded version in either

thru-hole or SMT configurations (for details see section on high voltage

leaded MLC chips).

NEW 630V RANGE

HOW TO ORDER

1808

AVX

Style

0805

1206

1210

1808

1812

1825

2220

2225

3640

***

271

Voltage

Temperature Capacitance Code Capacitance

Test Level

Termination*

Packaging

Special

600V/630V = C

Coefficient

(2 significant digits

Tolerance

A = Standard 1 = Pd/Ag

1 = 7" Reel**

Code

1000V = A NPO (C0G) = A

+ no. of zeros)

C0G:J = ±5%

T = Plated

3 = 13" Reel A = Standard

1500V = S

X7R = C

Examples:

K = ±10%

Ni and Sn

(RoHS Compliant)

10 pF = 100

M = ±20%

2000V = G

100 pF = 101 X7R: K = ±10%

2500V = W

1,000 pF = 102

M = ±20%

3000V = H

22,000 pF = 223

Z = +80%,

4000V = J

220,000 pF = 224

-20%

5000V = K

1 μF = 105

*Note:

Terminations with 5% minimum lead (Pb) is available, see pages 87 and 88 for LD style.

Leaded terminations are available, see pages 89 and 90.

Notes: Capacitors with X7R dielectrics are not intended for applications across AC supply mains or AC line filtering with polarity reversal. Contact plant for recommendations.

Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.

The 3640 Style is not available on 7" Reels.

***

AVX offers nonstandard chip sizes. Contact factory for details.

DIMENSIONS

SIZE

(L) Length

millimeters (inches)

0805

1206

1210*

1808*

1812*

1825*

2220*

2225*

3640*

2.01 ± 0.20

3.20 ± 0.20

4.57 ± 0.25

4.50 ± 0.30

5.70 ± 0.40

5.72 ± 0.25

9.14 ± 0.25

(0.079 ± 0.008) (0.126 ± 0.008) (0.126 ± 0.008) (0.180 ± 0.010) (0.177 ± 0.012) (0.177 ± 0.012) (0.224 ± 0.016) (0.225 ± 0.010) (0.360 ± 0.010)

(W) Width

1.25 ± 0.20

1.60 ± 0.20

2.50 ± 0.20

2.03 ± 0.25

3.20 ± 0.20

6.40 ± 0.30

5.00 ± 0.40

6.35 ± 0.25

10.2 ± 0.25

(0.049 ±0.008) (0.063 ± 0.008) (0.098 ± 0.008) (0.080 ± 0.010) (0.126 ± 0.008) (0.252 ± 0.012) (0.197 ± 0.016) (0.250 ± 0.010) (0.400 ± 0.010)

(T) Thickness

1.30

1.52

1.70

2.03

2.54

3.30

2.54

Max.

(0.051)

(0.060)

(0.067)

(0.080)

(0.100)

(0.130)

(0.100)

(t) terminal min. 0.50 ± 0.25

0.25 (0.010)

0.76 (0.030)

max. (0.020 ± 0.010) 0.75 (0.030)

0.75 (0.030)

1.02 (0.040)

1.52 (0.060)

*Reflow Soldering Only
