General Purpose, High Stability and AC Line EMI Suppression
Not for new design. Use new F161 Series.
MMC Series Encapsulated Winding, Size 2220 – 6560,
50 – 400 VDC
Overview
KEMET’s MMC Series polyester (PET) film capacitor for surface
mounting is encapsulated in self-extinguishing material meeting
the requirements of UL 94 V–0.
Applications
Typical applications include bypassing and signal coupling. MMC
is a general purpose series designed for the highest reliability.
Benefits
•
•
•
•
•
•
•
•
Rated voltage: 50 – 400 VDC
Rated voltage: 30 – 200 VAC
Capacitance range: 0.001 – 15 µF
EIA size: 2220 – 6560
Capacitance tolerance: ±5%, ±10%, other tolerances on request
Climatic category: 55/100/56
RoHS Compliant and lead-free terminations
Operating temperature range of -55˚C to +100˚C
Legacy Part Number System
MMC
Series
Metallized
Polyester
5.7
Chip Length (mm)
5.7
7.3
10.2
12.7
16.5
102
Capacitance Code (pF)
First two digits indicate the
two most significant digits
of the capacitance value in
picofarads. The third digit is
the number of following zeros.
K
Capacitance
Tolerance
J = ±5
K = ±10%
Other tolerances
on request
50
Rated Voltage
(VDC)
50
63
100
250
400
J31
Size Code
See Dimension
Table
TR12
Packaging Code
See Ordering
Options Table
New KEMET Part Number System
F
Capacitor Class
F = Film
160
Series
Metallized
Polyester
P
Chip Size
P = 2220
S = 2824
W = 4036
Y = 5045
Z = 6560
L
Size Code
See Dimension
Table
102
Capacitance Code (pF)
First two digits indicate the
two most significant digits
of the capacitance value in
picofarads. The third digit is
the number of following zeros.
K
Capacitance
Tolerance
J = ±5
K = ±10%
Other tolerances
on request
050
Rated Voltage
(VDC)
050 = 50
063 = 63
100 = 100
250 = 250
400 = 400
V
Packaging Code
See Ordering
Options Table
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3073_MMC • 7/26/2013
1
Not for new design. Use new F161 Series.
Film Capacitors
General Purpose, High Stability and AC Line EMI Suppression – MMC Series Encapsulated Winding, Size 2220 – 6560, 50 – 400 VDC
Ordering Options Table
Chip Size
(EIA)
2220
Packaging Type
Standard Packaging Options
Tape & Reel (Standard Reel)
Bulk (Bag)
Standard Packaging Options
Tape & Reel (Standard Reel)
Bulk (Bag)
Standard Packaging Options
V
A
TR12
BULK
V
A
TR12
BULK
KEMET
Packaging
Code
Legacy
Packaging
Code
2824
4036
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
Standard Packaging Options
V
A
Y
TR16
BULK
TV24
5045
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
Standard Packaging Options
V
A
Y
TR24
BULK
TV24
6560
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
V
A
Y
TR24
BULK
TV44
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3073_MMC • 7/26/2013
2
Not for new design. Use new F161 Series.
Film Capacitors
General Purpose, High Stability and AC Line EMI Suppression – MMC Series Encapsulated Winding, Size 2220 – 6560, 50 – 400 VDC
Dimensions – Millimeters
F
H
B
L
F
KEMET
Size Code
PL
PP
PU
SG
SL
SP
ST
WP
YR
ZS
Legacy
Size Code
J31
J33
J35
K31
K33
K35
K37
A31
B31
C31
Chip Size
(EIA)
2220
2220
2220
2824
2824
2824
2824
4036
5045
6560
B
Nominal
5.0
5.0
5.0
6.0
6.0
6.0
6.0
9.1
11.5
15
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
2.5
3.0
4.0
2.5
3.0
3.5
4.5
5.5
6.5
7.0
H
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
5.7
5.7
5.7
7.3
7.3
7.3
7.3
10.2
12.7
16.5
L
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
F
Tolerance
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Environmental Compliance
All KEMET surface mount capacitors are RoHS Compliant.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3073_MMC • 7/26/2013
3
Not for new design. Use new F161 Series.
Film Capacitors
General Purpose, High Stability and AC Line EMI Suppression – MMC Series Encapsulated Winding, Size 2220 – 6560, 50 – 400 VDC
Performance Characteristics
Rated Voltage (VDC)
Rated Voltage (VAC)
Capacitance Range (μF)
Chip Size (EIA)
Capacitance Tolerance
Category Temperature Range
Rated Temperature
Voltage Derating
Climatic Category
Test Voltage
50
30
0.001 – 15
2220 – 6560
±5%, ±10%, other tolerances on request
-55°C to +100°C
+85°C
The rated voltage is decreased with 1.25%/°C from +85°C
55/100/56
1.6 x V
R
, 60 seconds
Measured at +20°C According to IEC 60384–2
Minimum Values Between Terminals
Insulation Resistance
V
R
≤ 100
V
R
> 100
C ≤ 0.1 µF
Dissipation Factor
1 kHz
10 kHz
100 kHz
Pulse Rise Time
0.8%
1.2%
2.5%
C ≤ 0.33 µF
10,000 MΩ
30,000 MΩ
Maximum Values at +23°C
0.1 < C < 1 µF
0.8%
1.2%
3.0%
1 ≤ C ≤ 10 µF
0.8%
1.5%
C > 10 µF
0.8%
3.0%
C > 0.33 µF
3,000 MΩ • µF
10,000 MΩ • µF
63
40
0.001 – 4.7
100
63
0.001 – 3.3
250
160
0.001 – 1
400
200
0.001 – 0.47
The capacitors can withstand an unlimited number of pulses with a dV/dt according to Table 1. For voltages (V) lower
than the rated voltage (V
R
), the specified dV/dt can be multiplied by V
R
/V.

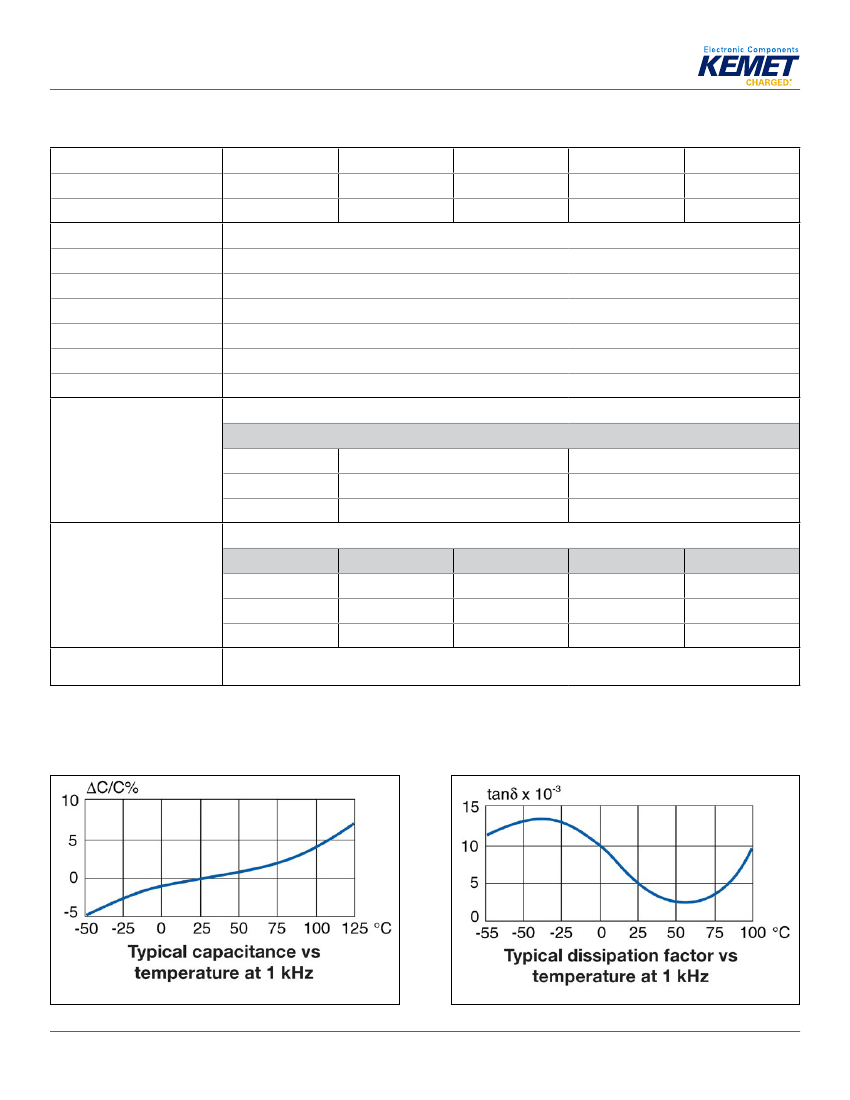

Capacitance vs. Temperature
Dissipation Factor vs. Temperature
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3073_MMC • 7/26/2013
4
Not for new design. Use new F161 Series.
Film Capacitors
General Purpose, High Stability and AC Line EMI Suppression – MMC Series Encapsulated Winding, Size 2220 – 6560, 50 – 400 VDC
Table 1 – Ratings & Part Number Reference
VDC
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
VAC
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
Cap Value
(µF)
0.0010
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.0010
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
Size Code
(New/Legacy)
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PL/J31
PP/J33
PP/J33
PU/J35
PU/J35
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SG/K31
SL/K33
SL/K33
SP/K35
Dimensions in mm
B
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
H
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3.0
3.0
4.0
4.0
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3.0
3.0
3.5
L
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
Chip Size
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2220
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
dV/dt
(V/μs)
40
40
40
40
40
40
40
40
40
40
40
40
40
40
30
30
30
30
30
30
30
30
20
20
20
20
20
20
20
50
50
50
50
50
50
50
50
50
50
40
40
40
40
40
40
30
30
30
30
30
30
30
30
30
30
25
25
25
25
New KEMET
Part Number
F160PL102(1)050(2)
F160PL122(1)050(2)
F160PL152(1)050(2)
F160PL182(1)050(2)
F160PL222(1)050(2)
F160PL272(1)050(2)
F160PL332(1)050(2)
F160PL392(1)050(2)
F160PL472(1)050(2)
F160PL562(1)050(2)
F160PL682(1)050(2)
F160PL822(1)050(2)
F160PL103(1)050(2)
F160PL123(1)050(2)
F160PL153(1)050(2)
F160PL183(1)050(2)
F160PL223(1)050(2)
F160PL273(1)050(2)
F160PL333(1)050(2)
F160PL393(1)050(2)
F160PL473(1)050(2)
F160PL563(1)050(2)
F160PL683(1)050(2)
F160PL823(1)050(2)
F160PL104(1)050(2)
F160PP124(1)050(2)
F160PP154(1)050(2)
F160PU184(1)050(2)
F160PU224(1)050(2)
F160SG102(1)050(2)
F160SG122(1)050(2)
F160SG152(1)050(2)
F160SG182(1)050(2)
F160SG222(1)050(2)
F160SG272(1)050(2)
F160SG332(1)050(2)
F160SG392(1)050(2)
F160SG472(1)050(2)
F160SG562(1)050(2)
F160SG682(1)050(2)
F160SG822(1)050(2)
F160SG103(1)050(2)
F160SG123(1)050(2)
F160SG153(1)050(2)
F160SG183(1)050(2)
F160SG223(1)050(2)
F160SG273(1)050(2)
F160SG333(1)050(2)
F160SG393(1)050(2)
F160SG473(1)050(2)
F160SG563(1)050(2)
F160SG683(1)050(2)
F160SG823(1)050(2)
F160SG104(1)050(2)
F160SG124(1)050(2)
F160SG154(1)050(2)
F160SL184(1)050(2)
F160SL224(1)050(2)
F160SP274(1)050(2)
Legacy Part
Number
MMC5.7102(1)50J31(2)
MMC5.7122(1)50J31(2)
MMC5.7152(1)50J31(2)
MMC5.7182(1)50J31(2)
MMC5.7222(1)50J31(2)
MMC5.7272(1)50J31(2)
MMC5.7332(1)50J31(2)
MMC5.7392(1)50J31(2)
MMC5.7472(1)50J31(2)
MMC5.7562(1)50J31(2)
MMC5.7682(1)50J31(2)
MMC5.7822(1)50J31(2)
MMC5.7103(1)50J31(2)
MMC5.7123(1)50J31(2)
MMC5.7153(1)50J31(2)
MMC5.7183(1)50J31(2)
MMC5.7223(1)50J31(2)
MMC5.7273(1)50J31(2)
MMC5.7333(1)50J31(2)
MMC5.7393(1)50J31(2)
MMC5.7473(1)50J31(2)
MMC5.7563(1)50J31(2)
MMC5.7683(1)50J31(2)
MMC5.7823(1)50J31(2)
MMC5.7104(1)50J31(2)
MMC5.7124(1)50J33(2)
MMC5.7154(1)50J33(2)
MMC5.7184(1)50J35(2)
MMC5.7224(1)50J35(2)
MMC7.3102(1)50K31(2)
MMC7.3122(1)50K31(2)
MMC7.3152(1)50K31(2)
MMC7.3182(1)50K31(2)
MMC7.3222(1)50K31(2)
MMC7.3272(1)50K31(2)
MMC7.3332(1)50K31(2)
MMC7.3392(1)50K31(2)
MMC7.3472(1)50K31(2)
MMC7.3562(1)50K31(2)
MMC7.3682(1)50K31(2)
MMC7.3822(1)50K31(2)
MMC7.3103(1)50K31(2)
MMC7.3123(1)50K31(2)
MMC7.3153(1)50K31(2)
MMC7.3183(1)50K31(2)
MMC7.3223(1)50K31(2)
MMC7.3273(1)50K31(2)
MMC7.3333(1)50K31(2)
MMC7.3393(1)50K31(2)
MMC7.3473(1)50K31(2)
MMC7.3563(1)50K31(2)
MMC7.3683(1)50K31(2)
MMC7.3823(1)50K31(2)
MMC7.3104(1)50K31(2)
MMC7.3124(1)50K31(2)
MMC7.3154(1)50K31(2)
MMC7.3184(1)50K33(2)
MMC7.3224(1)50K33(2)
MMC7.3274(1)50K35(2)
VDC
VAC
Cap Value
(µF)
Size Code
(New/Legacy)
B (mm)
H (mm)
L (mm)
Chip Size
dV/dt
(V/μs)
New KEMET
Part Number
Legacy Part Number
(1) J = ±5%, K = ±10%, other tolerances on request.
(2) Insert ordering code for lead type and packaging. See Ordering Options Table for available options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3073_MMC • 7/26/2013
5
Roll Over for
Order Info.
京公网安备 11010802033920号
EEWORLD
