Choke Coils for PFC
PFC series
Contents
Page
Development Concept .................................................................................... 4
Overview.........................................................................................................5
PFC3514QM（Height from the board：15.5mm）
.......................................... 6
PFC3318QM（Height from the board：20mm）
............................................. 8
PFC3519QM（Height from the board：20mm）
........................................... 10
PFC3819QM（Height from the board：20mm）
........................................... 12
PFC4124QM（Height from the board：25mm）
........................................... 14
PFC2723ER（Height from the board：25mm）
............................................ 16
PFC3125ER（Height from the board：27mm）
............................................ 18
PFC3525ER（Height from the board：27mm）
............................................ 20
PFC3820QN (Height from the board: 50mm Narrow floor space）
............... 22
PFC3831QN (Height from the board: 50mm Narrow floor space）
............... 24
Specification Request Form ......................................................................... 26
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20160929 / trans_pfc-choke_pfc_en
(4/26)
T R A N S F O R M E R S
Choke Coils for PFC
Pin terminal type

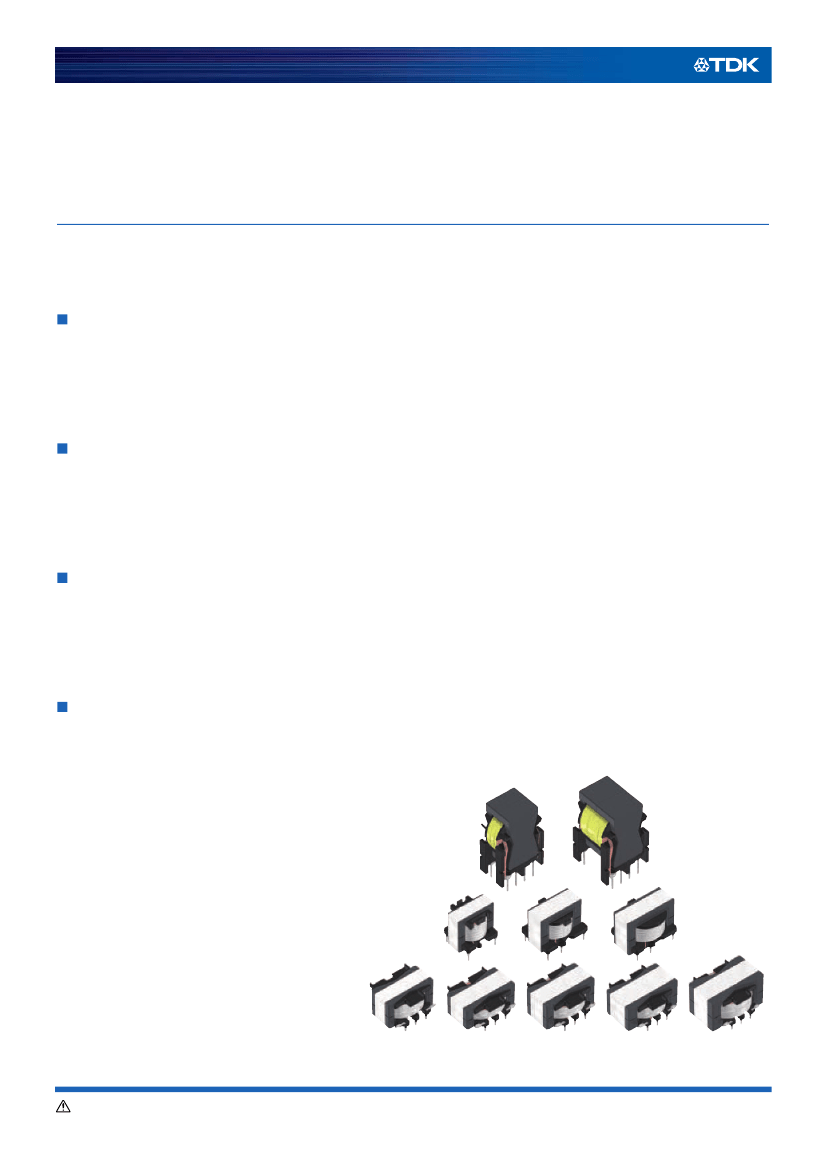

Development Concept of the PFC series
This is a power - factor improvement circuit for choke coils for smaller, thinner and narrow floor space in recent years electronic
equipment.
MATERIAL
Thanks to the development of an optimized core shape and materials, the choke coil has DC superimposition characteristics suitable for
the design of various types of electronic devices.
Optimized materials have been selected, and at the same time the original core shape for PFC has been developed.
The product line-up has been expanded to cater for various types of electronic devices that need to become smaller, thinner and narrow
floor space.
MANUFACTURING METHOD
Since the PFC Series supports automatic winding, the product is of a high quality and can be manufactured stably.
It is designed to support automatic winding, which enables a remarkable reduction in the loss generated to achieve a proficient in manual
winding until stable production.
In addition, the characteristic variations of the winding wire and creepage tape have largely been removed, stabilizing the transformer's
characteristics.
OPTIMIZATION DESIGN
While the existing line-up of standard products remains available, new products can also be manufactured to meet customers' requests.
Using design tools developed with TDK's comprehensive know-how, high-precision design has been achieved in a short period of time.
1) For optimization design and high-quality stable production, customers can use a specification request form.
If you provide the necessary information in the form, you will receive the optimization design in a short time.
2) TDK recommends design with a standard core gap (A
L
-value) for optimization and shorter trial and mass production lead time.
ENVIRONMENT
The PFC series is RoHS directive-compliant product.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20160929 / trans_pfc-choke_pfc_en
(5/26)
T R A N S F O R M E R S
Choke Coils for PFC
Pin terminal type
Product compatible with RoHS directive
Compatible with lead-free solders
Overview of the PFC series
FEATURES
A low height(15.5 to 27mm in height) and narrow floor space(QN type) are achieved.
Large current is achieved in a small shape.
APPLICATION
AV equipment, digital consumer electronics
PART NUMBER CONSTRUCTION
PFC
Series name
3514QM -
Core shape
PFC3514QM
PFC3318QM
PFC3519QM
PFC3819QM
PFC4124QM
PFC2723ER
PFC3125ER
PFC3525ER
PFC3820QN
PFC3831QN
351
Inductance
code
350 35µH (35x10
0
)
351 350µH (35x10
1
)
352 3500µH(35x10
2
)
K
Inductance
tolerance
K
±10%
07
Rated Peak
current code
1
01
1A
07
7A
10
10A
E-**
Internal code
1
The rounded-off value.
OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Temperature range
Operating
Storage
Type
2
temperature
temperature
3
（°C）
（°C）
PFC3514QM
–30 to +120
–40 to +80
PFC3318QM
–30 to +120
–40 to +80
PFC3519QM
–30 to +120
–40 to +80
PFC3819QM
–30 to +120
–40 to +80
PFC4124QM
–30 to +120
–40 to +80
PFC2723ER
–30 to +120
–40 to +80
PFC3125ER
–30 to +120
–40 to +80
PFC3525ER
–30 to +120
–40 to +80
PFC3820QN
–30 to +120
–40 to +80
PFC3831QN
–30 to +120
–40 to +80
2
Operating temperature range includes self-temperature rise.
3
The Storage temperature range is for after the circuit board is mounted.
4
Typical weight.
Package quantity
（pieces/box）
175
140
140
100
90
150
120
120
105
63
Individual weight
4
（g）
40.0
27.6
50.3
60.5
91.9
34.1
49.7
57.3
71.9
115.3
RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20160929 / trans_pfc-choke_pfc_en
