C A P A C I T O R S

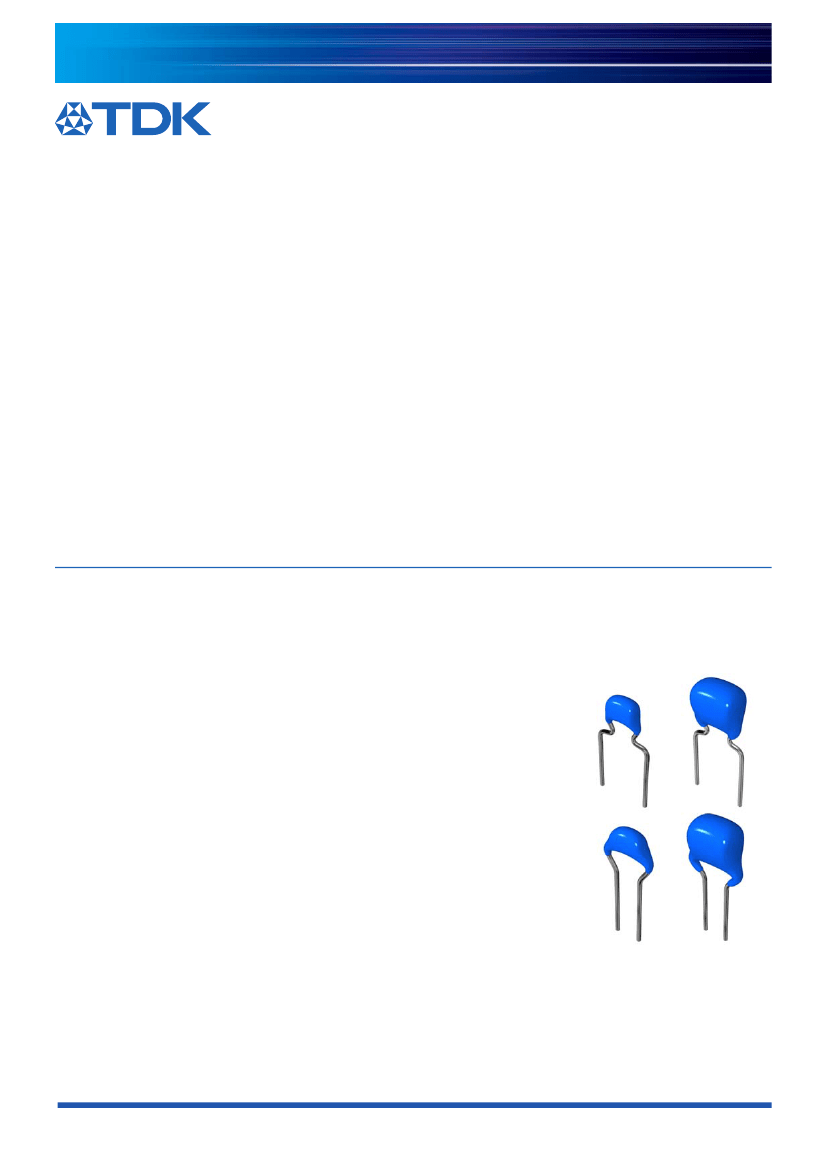

MLCC with Dipped Radial Lead
Halogen-free, Commercial Grade
Product compatible with RoHS directive
Halogen-free
Overview of the FG Series
FEATURES
A complete lineup with a rated voltage of 6.3V to 630V.
Compatible with a wide capacitance range of 1pF to 100µF.
APPLICATION
Noise reduction measures for various motors
Bypass capacitors such as for switching power sources, smoothing capacitors, etc.
Snubber circuits
PFC input filters
PART NUMBER CONSTRUCTION
FG
Series
name
1
2
2
Lead pitch
(mm)
2.5
5.0
8
LxWxT
Dimensions
(mm)
8 4.0x5.5x2.5
4 4.5x5.5x3.0
6 5.5x6.0x3.5
0 5.5x7.0x4.0
1 5.5x7.0x4.0
2 7.5x8.5x4.5
C0G
Capacitance
temperature
characteristics
C0G 0±30ppm/°C
X5R
±15%
X7R
±15%
X7S
±22%
X7T +22, –33%
1H
Rated
voltage
(V)
0J
6.3
1A
10
1C
16
1E
25
1H
50
2A 100
2E 250
2W 450
2J 630
010
Nominal
capacitance
(pF)
010
1
100
10
101
100
102 1,000
C
Capacitance
tolerance
C ±0.25pF
D ±0.5pF
J
±5%
K ±10%
M ±20%
□□□
Internal
code
□
Packaging
Style
0
6
Bulk
Taping
Applied
Applicable capacitance range: Max. 10 pF for C and D, over 10 pF for J, K, and M.
to the TDK’s standard specification products.
OPERATING TEMPERATURE RANGE
Temperature range
Operating temperature
Storage temperature
(°C)
(°C)
C0G, X7R, X7S, X7T
–55 to +125
–55 to +125
X5R
–55 to +85
–55 to +85
The maximum operating temperature includes capacitor self-generated heat of up to 20°C.
The storage temperature range applies to after MLCC is mounted on board.
Capacitance temperature
characteristics
RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html
Halogen-free: Indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
