PM0805-18NM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PM0805-18NM

PM0805-18NM: DescriptionFixed Inductors 18nH 20%; CategoryPassive components inductor; File Size273KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

PM0805-18NM Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM0805-18NM	-	-	View	Buy Now

PM0805-18NM Overview

Fixed Inductors 18nH 20%

PM0805-18NM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Bourns
package instruction	1007
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1007
structure	Wound
core material	CERAMIC
DC Resistance	0.2 Ω
Nominal inductance(L)	0.018 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PM0805
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	1.78 mm
Package length	2.41 mm
Package form	SMT
Package width	1.78 mm
Minimum quality factor (at nominal inductance)	50
Maximum rated current	0.6 A
self resonant frequency	3300 MHz
series	PM0805
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 500 MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	250 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Features

■

Formerly

■

0805 size

■

Available in E12 series

■

High Q up to 60 typ.

■

High operating temperature of 125 °C

■

RoHS compliant*

Applications

model

■

Mobile phones

■

Cellular phones

■

CTV, VCR, HIC, FDD

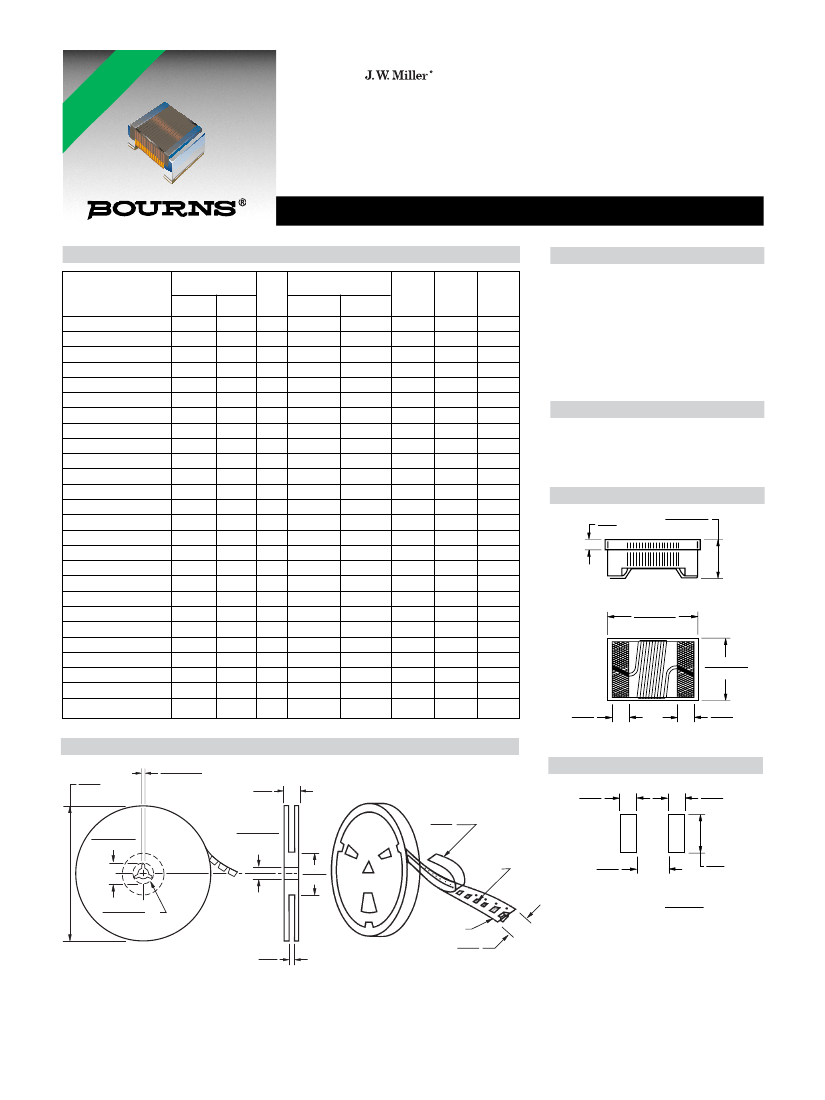

PM0805 Series - High Q Chip Inductors

Electrical Speciﬁcations

Inductance

Test Frequency (MHz)

General Speciﬁcations

SRF

Min.

(MHz)

6000

5800

5500

4800

4100

3600

3400

3300

2600

2400

2100

1700

1600

1450

1350

1200

1100

950

900

860

850

800

780

340

I rms

Max.

(mA)

800

600

500

400

350

300

250

200

170

230

Bourns Part No.

PM0805-2N8M-RC

PM0805-3N3M-RC

PM0805-5N6M-RC

PM0805-6N8M-RC

PM0805-8N2M-RC

PM0805-10NM-RC

PM0805-12NM-RC

PM0805-15NM-RC

PM0805-18NM-RC

PM0805-22NM-RC

PM0805-27NM-RC

PM0805-33NM-RC

PM0805-39NM-RC

PM0805-47NM-RC

PM0805-56NK-RC

PM0805-68NK-RC

PM0805-82NK-RC

PM0805-R10K-RC

PM0805-R12K-RC

PM0805-R15K-RC

PM0805-R18K-RC

PM0805-R22K-RC

PM0805-R27K-RC

PM0805-R33K-RC

PM0805-R39K-RC

PM0805-R56K-RC

2.8

3.3

5.6

6.8

8.2

100

120

150

180

220

270

330

390

560

Tol. %

±20

±10

Min.

250

200

150

100

1000

1500

1000

500

250

RDC

(Ω)

0.06

0.08

0.06

0.08

0.10

0.12

0.15

0.18

0.15

0.25

0.27

0.32

0.43

0.48

0.67

0.85

1.10

1.46

1.65

2.20

1.90

Temperature Rise

.................40 ˚C max. at rated current

Operating Temperature

................................-40 °C to +125 °C

Storage Temperature

................................-40 °C to +125 °C

Reﬂow Soldering .. 230 °C, 50 sec. max.

Resistance to Soldering Heat

...............................260 ˚C, 5 seconds

Materials

Core Material .......Alumina (1CC201211)

Wire ......Enamelled Copper (1W1E180)

Terminal ...........................Mo/Mn+Ni+Au

Packaging ................. 2,000 pcs. per reel

Product Dimensions

0.5

(.020)

1.3

0.2

(.051

.008)

2.1

0.2

(.083

.008)

1.5

0.2

(.059

.008)

0.5

(.020)

0.5

(.020)

Packaging Speciﬁcations

178.0

(7.00)

DIA.

2.0

0.5

(.079

.020)

Recommended Layout

12.5

(.492)

THICKNESS

0.10

(.004)

MAX.

EMBOSSED

CAVITY

REF.

1.02

(.040)

1.02

REF.

(.040)

21.0

0.8

(.827

.031)

13.0

0.5

(.512

.020)

DIA.

50.0

(1.969)

REF.

0.76

(.030)

1.78

REF.

(.070)

13.0

0.5

DIA.

(.512

.020)

DIMENSIONS:

EMBOSSED

CARRIER

10.0

(.393)

8.0

(.315)

(INCHES)

REV. 05/11

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
