MKT1822
www.vishay.com
Vishay Roederstein
Metallized Polyester Film Capacitors
MKT Radial Type
FEATURES
• 10.0 mm to 27.5 mm lead pitch
• Self-healing properties
• Flame retardant case
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
Blocking, bypassing, filtering, timing, coupling and
decoupling circuits, interference suppression in low voltage
applications.
QUICK REFERENCE DATA
Capacitance range (E12 series)
Capacitance tolerance
Climatic testing class according to IEC 60068
Reference standards
Dielectric
Electrodes
Construction
Encapsulation
Leads
Marking
Temperature range
Rated DC voltage
Permissible AC voltages (RMS) up to 60 Hz
Capacitance drift
Derating for DC and AC category voltage U
C
Self inductance
Pull test on leads
1000 pF to 15 μF (preferred values according to E6)
± 20 % (M), ± 10 % (K), ± 5 % (J) (on request)
55/100/56
IEC 60384-2
Polyester film
Vacuum deposited aluminum
Extended metallized film
Flame retardant plastic case UL-class 94 V-0
Tinned wire
Manufacturer’s logo; type; C-value; rated voltage; tolerance; date of manufacture
-55 °C to +100 °C
63 V
DC
, 100 V
DC
, 250 V
DC
, 400 V
DC
, 630 V
DC
, 1000 V
DC
40 V
AC
, 63 V
AC
, 160 V
AC
, 200 V
AC
, 220 V
AC
Up to +40 °C, ± 1.5 % for a period of two years
At +85 °C: U
C
= 1.0 U
R
At +100 °C: U
C
= 0.8 U
R
~ 6 nH measured with 2 mm long leads
30 N in direction of leads according to IEC 60068-2-21
Note
• For more detailed data and test requirements, contact
dc-film@vishay.com
DIMENSIONS
in millimeters
l
w
h
l
t
PCM ± 0.4
Ø 0.8 ± 0.08
Revision: 19-Aug-15
Document Number: 26012
1
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MKT1822
www.vishay.com
COMPOSITION OF CATALOG NUMBER
MULTIPLIER
(nF)
0.1
1
10
100
2
3
4
5
CAPACITANCE
(numerically)
Example:
468 = 680 nF
Vishay Roederstein
MKT 1822
TYPE
X
XX
25
X
X
SPECIAL LETTER FOR TAPED
Bulk
V/W
Reel packaging (18.5 mm)
Ammopack (18.5 mm)
TOLERANCE
Un = 06 = 63 V
Un = 01 = 100 V
Un = 25 = 250 V
Un = 40 = 400 V
Un = 63 = 630 V
Un = 10 = 1000 V
4
5
6
±5%
± 10 %
± 20 %
G
Note
• For detailed tape specifications refer to packaging information
www.vishay.com/docs?28139
or “Recommended Packaging” table
SPECIFIC REFERENCE DATA
DESCRIPTION
Tangent of loss angle:
C
0.1 μF
0.1 μF < C
1.0 μF
C > 1.0 μF
PCM
(mm)
10
15
22.5
27.5
63 V
DC
11
7
4
3
100 V
DC
13
8
5
4
250 V
DC
22
13
8
6
at 1 kHz
8x
10
-3
10
-3
8 x 10
-3
10 x
MAXIMUM PULSE RISE TIME (dV/dt) [V/μs]
400 V
DC
37
21
13
10
630 V
DC
60
33
19
14
> 15 000 M
> 30 000 M
> 5000 s
> 10 000 s
> 30 000 M
1.6 x U
RDC
, 1 min
2 x U
RDC
, 1 min
100 °C
1000 V
DC
130
65
34
25
MAX. VALUE
at 10 kHz
15 x
10
-3
15 x 10
-3
-
at 100 kHz
25 x 10
-3
-
-
If the maximum pulse voltage is less than the rated voltage higher dV/dt values can be permitted.
R between leads, for C
0.33 μF and U
R
100 V
R between leads, for C
0.33 μF and U
R
> 100 V
RC between leads, for C > 0.33 μF and U
R
100 V
RC between leads, for C > 0.33 μF and U
R
> 100 V
R between leads and case, 100 V; (foil method)
Withstanding (DC) voltage (cut off current 10 mA); rise time < 1000 V/s
Withstanding (DC) voltage between leads and case
Maximum application temperature
Revision: 19-Aug-15
Document Number: 26012
2
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MKT1822
www.vishay.com
Vishay Roederstein
VOLTAGE
CODE
DIMENSIONS
WxHxL
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
5.5 x 10.5 x 13.0
5.5 x 10.5 x 18.0
5.5 x 10.5 x 18.0
6.5 x 12.5 x 18.0
7.5 x 13.5 x 18.0
7.5 x 15.5 x 26.5
8.5 x 16.5 x 26.5
10.5 x 18.5 x 26.5
11.5 x 20.5 x 31.5
13.5 x 23.5 x 31.5
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.5 x 9.5 x 13.0
5.5 x 10.5 x 18.0
5.5 x 10.5 x 18.0
6.5 x 12.5 x 18.0
7.5 x 13.5 x 18.0
7.5 x 15.5 x 26.5
8.5 x 16.5 x 26.5
10.5 x 18.5 x 26.5
11.5 x 20.5 x 31.5
13.5 x 23.5 x 31.5
15.0 x 24.5 x 31.5
16.5 x 29.5 x 31.5
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.5 x 9.5 x 13.0
5.5 x 10.5 x 18.0
5.5 x 10.5 x 18.0
5.5 x 10.5 x 18.0
6.5 x 12.5 x 18.0
6.5 x 14.5 x 26.5
7.5 x 15.5 x 26.5
8.5 x 16.5 x 26.5
9.0 x 18.5 x 31.5
11.5 x 20.5 x 31.5
13.5 x 23.5 x 31.5
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
5.5 x 10.5 x 18.0
5.5 x 10.5 x 18.0
5.5 x 10.5 x 18.0
6.5 x 12.5 x 18.0
7.5 x 15.5 x 26.5
8.5 x 16.5 x 26.5
10.5 x 18.5 x 26.5
11.5 x 20.5 x 31.5
11.5 x 20.5 x 31.5
13.5 x 23.5 x 31.5
ELECTRICAL DATA
U
RDC
(V)
CAP.
(μF)
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10.0
15.0
0.068
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10.0
15.0
0.033
0.047
0.068
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
0.0010
0.0015
0.0022
0.0033
0.0047
0.0068
0.010
0.015
0.022
0.033
0.047
0.068
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
CAPACITANCE
CODE
-422
-433
-447
-468
-510
-515
-522
-533
-547
-568
-610
-615
-368
-410
-415
-422
-433
-447
-468
-510
-515
-522
-533
-547
-568
-610
-615
-333
-347
-368
-410
-415
-422
-433
-447
-468
-510
-515
-522
-533
-210
-215
-222
-233
-247
-268
-310
-315
-322
-333
-347
-368
-410
-415
-422
-433
-447
-468
-510
-515
V
AC
PCM
10
10
10
15
15
15
15
22.5
22.5
22.5
27.5
27.5
10
10
10
10
15
15
15
15
22.5
22.5
22.5
27.5
27.5
27.5
27.5
10
10
10
15
15
15
15
22.5
22.5
22.5
27.5
27.5
27.5
10
10
10
10
10
10
10
10
10
10
15
15
15
15
22.5
22.5
22.5
27.5
27.5
27.5
63
06
40
100
01
63
250
25
160
400
40
200
Revision: 19-Aug-15
Document Number: 26012
3
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MKT1822
www.vishay.com
Vishay Roederstein
VOLTAGE
CODE
DIMENSIONS
WxHxL
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
5.5 x 10.5 x 13.0
6.5 x 11.5 x 13.0
5.5 x 10.5 x 18.0
6.5 x 12.5 x 18.0
7.5 x 13.5 x 18.0
6.5 x 14.5 x 26.5
7.5 x 15.5 x 26.5
8.5 x 16.5 x 26.5
11.5 x 20.5 x 31.5
11.5 x 20.5 x 31.5
13.5 x 23.5 x 31.5
15.0 x 24.5 x 31.5
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
4.0 x 9.0 x 13.0
5.5 x 10.5 x 13.0
6.5 x 11.5 x 13.0
5.5 x 10.5 x 18.0
6.5 x 12.5 x 18.0
7.5 x 13.5 x 18.0
6.5 x 14.5 x 26.5
7.5 x 15.5 x 26.5
8.5 x 16.5 x 26.5
10.5 x 18.5 x 26.5
11.5 x 20.5 x 31.5
13.5 x 23.5 x 31.5
16.5 x 29.5 x 31.5
20.0 x 35.0 x 31.5
ELECTRICAL DATA
U
RDC
(V)
CAP.
(μF)
0.0010
0.0015
0.0022
0.0033
0.0047
0.0068
0.010
0.015
0.022
0.033
0.047
0.068
0.10
0.15
0.22
0.33
0.47
0.68
1.0
0.0010
0.0015
0.0022
0.0033
0.0047
0.0068
0.010
0.015
0.022
0.033
0.047
0.068
0.10
0.15
0.22
0.33
0.47
CAPACITANCE
CODE
-210
-215
-222
-233
-247
-268
-310
-315
-322
-333
-347
-368
-410
-415
-422
-433
-447
-468
-510
-210
-215
-222
-233
-247
-268
-310
-315
-322
-333
-347
-368
-410
-415
-422
-433
-447
V
AC
PCM
10
10
10
10
10
10
10
10
10
15
15
15
22.5
22.5
22.5
27.5
27.5
27.5
27.5
10
10
10
10
10
10
15
15
15
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
630
63
(1)
220
1000
10
(1)
220
Note
(1)
Not suitable for mains applications.
RECOMMENDED PACKAGING
LETTER
CODE
G
W
V
G
-
-
TYPE OF
PACKAGING
Ammo
Reel
Reel
Ammo
Bulk
Bulk
HEIGHT
(H)
(mm)
18.5
18.5
18.5
18.5
-
-
REEL
DIAMETER
(mm)
S
(1)
350
500
L
(2)
-
-
ORDERING CODE
EXAMPLES
MKT1822-422-065-G
MKT1822-422-065-W
MKT1822-510-255-V
MKT1822-510-255-G
MKT1822-510-255
MKT1822-522-255
PCM
10
X
X
-
-
X
X
PCM
15
X
X
X
-
X
-
PCM
22.5 TO 27.5
-
-
X
X
X
X
Notes
(1)
S = Box size 55 mm x 210 mm x 340 mm (W x H x L)
(2)
L = Box size 60 mm x 360 mm x 510 mm (W x H x L)
Revision: 19-Aug-15
Document Number: 26012
4
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MKT1822
www.vishay.com

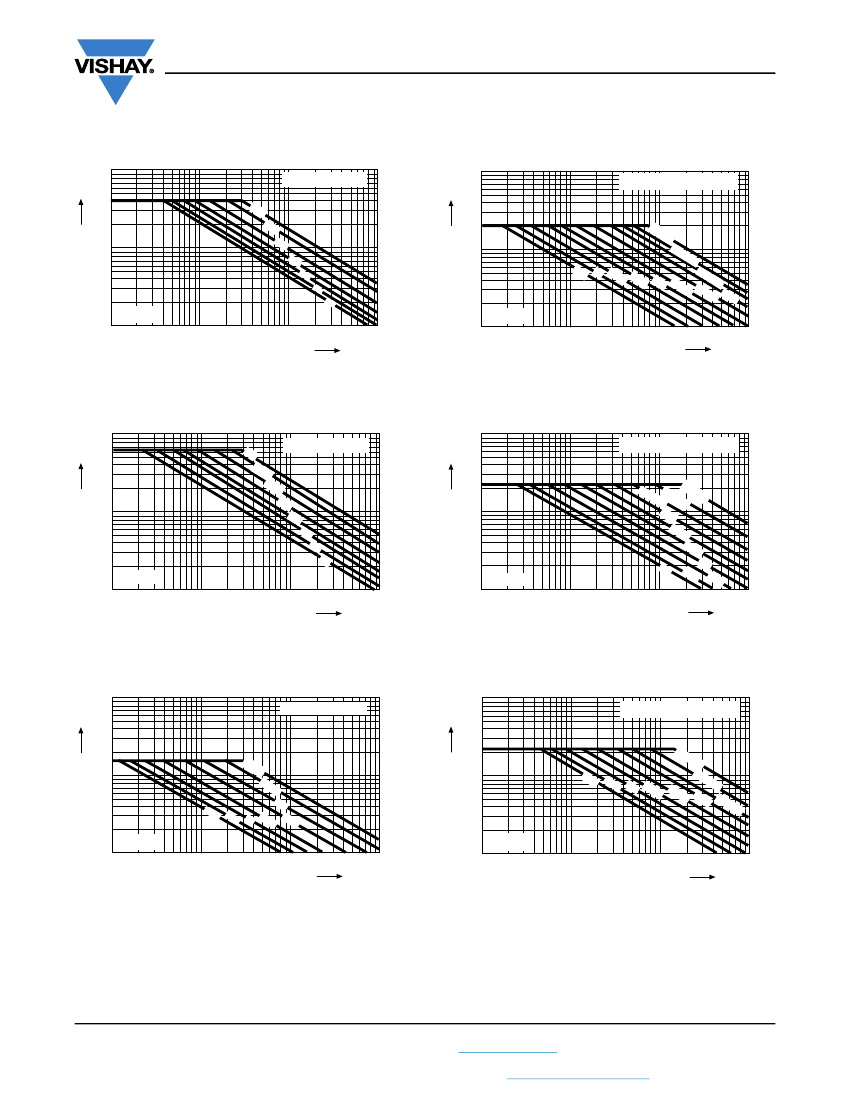

PERMISSIBLE AC VOLTAGE VS. FREQUENCY
Vishay Roederstein
100
7
5
3
2
10
7
5
3
2
1
10
2
63 V
DC
2
3
5 7 10
3
2
3
0.3
3
0.6
8
1.5
V
RMS
Capacitance in μF
1000
7
5
3
2
V
RMS
Capacitance in pF and μF
10
00
22
00
3.3
6.8
10
15
100
7
5
3
2
5 7 10
5
f [Hz]
10
10
2
400 V
DC
2
3
1.5
1
0 .4
7 0.22
0.1 0
.04
7
47
00
0.0
22 0.0
1
5 7 10
4
2
3
5 7 10
3
2
3
5 7 10
4
2
3
5 7 10
5
f [Hz]
100
7
5
3
2
10
7
5
3
2
100 V
DC
1
10
2
2
3
5 7 10
3
0.1
Capacitance in μF
0.3
3
0.6
8
1.5
3.3
4.7
10
15
1000
7
5
3
2
100
7
5
3
2
630 V
DC
2
3
5 7 10
3
V
RMS
V
RMS
Capacitance in pF and μF
10
47
00 2200 00
0.0
1
0.0
22
0.0
47
0.1
1.0
0.4
7 0.2
2
3
5 7 10
4
2
3
5 7 10
f [Hz]
5
10
10
2
2
2
3
5 7 10
4
2
3
5 7 10
5
f [Hz]
1000
7
5
3
2
0.0
Capacitance in μF
1000
7
5
3
2
V
RMS
V
RMS
Capacitance in pF and μF
100
7
5
3
2
250 V
DC
10
10
2
2
3
5 7 10
3
2
3
3.3
2.2
1
33
0.0
47
0.1
0.4
7
0.2
2
10
00
0.4
7 0.2 0
2 .1 0.0
47 0.0
22
22
00
0.0
1
47
0
0
100
7
5
3
2
5 7 10
5
f [Hz]
10
10
2
1000 V
DC
2
3
5 7 10
3
5 7 10
4
2
3
2
3
5 7 10
4
2
3
5 7 10
5
f [Hz]
Revision: 19-Aug-15
Document Number: 26012
5
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
