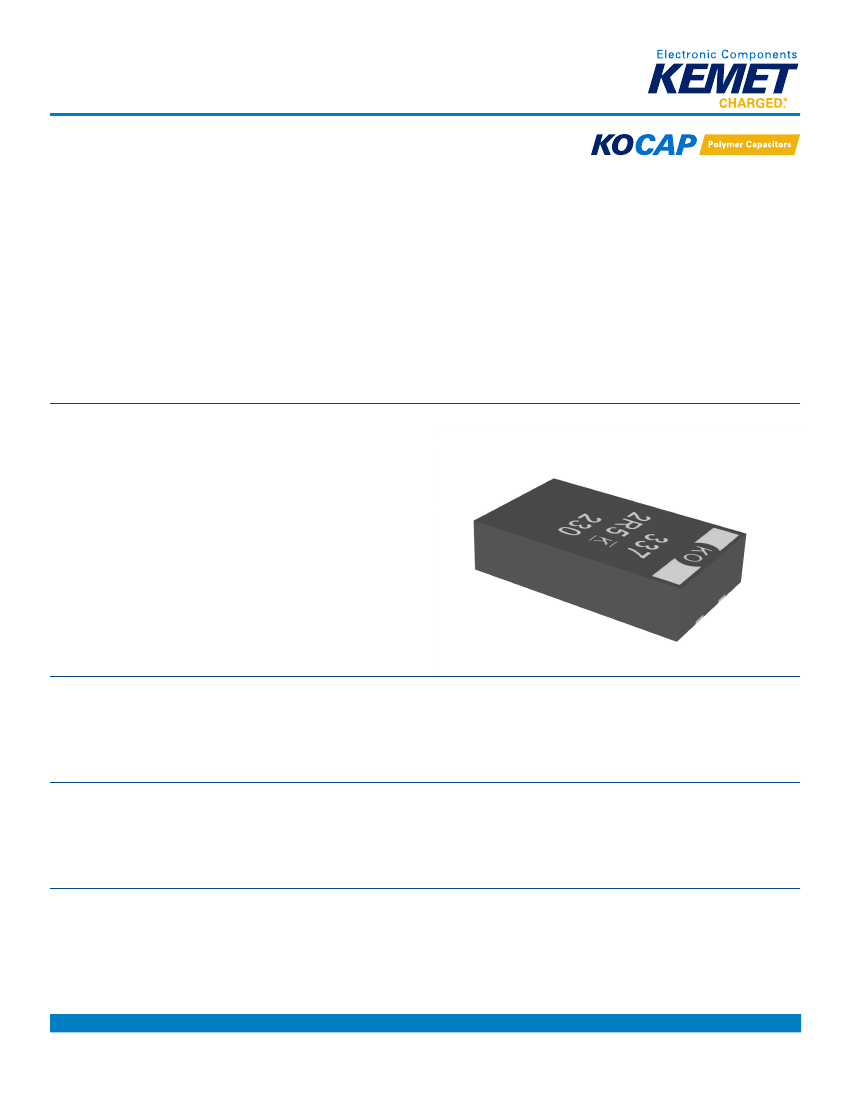

KEMET Organic Capacitor (KO-CAP
®
) – Miniature
T528 Low ESL Polymer Electrolytic for CPU/GPU Decoupling
Overview
The KEMET Organic Capacitor (KO-CAP) is a solid
electrolytic capacitor with a conductive polymer cathode,
capable of delivering very low ESR and improved
capacitance retention at high frequencies. KO-CAP
combines the low ESR of multilayer ceramic, the high
capacitance of aluminum electrolytic and the volumetric
efficiency of tantalum into a single surface mount package.
Unlike liquid electrolyte-based capacitors, KO-CAP
has a very long operational life and high ripple current
capabilities.
The T528 Low ESL Facedown Terminal Polymer Electrolytic
combines ultra-low ESR and high capacitance in a package
design that offers the lowest ESL in the market. This
series offers exceptional performance for high-speed
microprocessor, FPGA or ASIC decoupling designs. The
T528 utilizes a unique termination design that allows for a
reduction in the inductance loop area and comes in a low
profile 1.7 mm case height. This series offers improved
capacitance retention at frequencies of up to 1 MHz.
Benefits
• Low ESL < 0.7 nH at 20 MHz
• Improved volumetric efficiency
• High frequency capacitance retention
• 100% accelerated steady state aging
• 100% surge current tested
• EIA standard case sizes
• Halogen-free epoxy/RoHS compliant
• Lead free 260°C reflow capable
Applications
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Typical applications include high speed server, microprocessor decoupling and high ripple current applications.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn or Ni-Pd-Au.
K-SIM
For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET’s K-SIM software. KEMET
K-SIM is designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2018_T528 • 1/11/2018
1
KEMET Organic Capacitor (KO-CAP
®
) – Miniature
T528 Low ESL Polymer Electrolytic for CPU/GPU Decoupling
Ordering Information
T
Capacitor
Class
T=
Tantalum
528
Series
528 =
Low ESL
Facedown
Terminal
Polymer
Z
Case Size
B
W
Z
337
Capacitance
Code (pF)
First two digits
represent
significant
figures. Third
digit specifies
number of zeros.
M
2R5
A
T
Termination
Finish
T = 100% Matte
Tin (Sn)-plated
P = Ni-Pd-Au-
plated
E009
ESR Code
E = ESR
last three
digits
specify ESR
in mΩ (009
= 9 mΩ)
Packaging
(C-Spec)
Blank = 7"
reel
7280 = 13"
reel
Capacitance
Rated Voltage Failure Rate/
Tolerance
(VDC)
Design
M=
±20%
002 = 2
2R5 = 2.5
004 = 4
006 = 6.3
A=
N/A
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
−55°C to 105°C
150 – 470 µF at 120 Hz/25°C
M Tolerance (20%)
2 – 6.3 V
≤ 10% - Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.1 CV (µA) at rated voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2018_T528 • 1/11/2018
2
KEMET Organic Capacitor (KO-CAP
®
) – Miniature
T528 Low ESL Polymer Electrolytic for CPU/GPU Decoupling
Qualification
Test
Endurance
Condition
Δ C/C
105°C at rated voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
Humidity
60°C, 90% RH, 500 hours
DF
DCL
ESR
+25°C
Extreme temperature exposure at a
succession of continuous steps at
−55°C, +25°C, +85°C, +105°C
Δ C/C
DF
DCL
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within −20/+10% of initial value
≤ Initial Limit
Within 1.25 x initial limit
Within 2.0 x initial limit
Within −20/+10% of initial value
Within initial limits
Within 1.25 x initial limit
Within 2.0 x initial limit
Within −5/+35% of initial value
≤ Initial limit
Within 5.0 x initial limit
Within 2.0 x initial limit
−55°C
±20%
IL
N/A
+85°C
±20%
1.2 x IL
10 x IL
+105°C
±30%
1.5 x IL
10 x IL
Storage Life
105°C at 0 volts, 2,000 hours
Temperature Stability
Within −20/+10% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Surge Voltage
105°C, 1.32 x rated voltage 1,000 cycles
Mechanical Shock/
Vibration
*IL = Initial limit
MIL-STD-202, Method 213, Condition I, 100 G peak
MIL-STD-202, Method 204, Condition D, 10 Hz to 2,000
Hz, 20 G peak
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2018_T528 • 1/11/2018
3
KEMET Organic Capacitor (KO-CAP
®
) – Miniature
T528 Low ESL Polymer Electrolytic for CPU/GPU Decoupling
Reliability
KO-CAP capacitors have an average failure rate of 0.5 %/1,000 hours at category voltage, U
C
, and category temperature, T
C
.
These capacitors are qualified using industry test standards at U
C
and T
C
. The minimum test time (1,000 or 2,000 hours) is
dependent on the product series.
The actual life expectancy of KO-CAP capacitors increases when application voltage, U
A
, and application temperature, T
A
,
are lower than U
C
and T
C
. As a general guideline, when U
A
< 0.9 * U
C
and T
A
< 85°C, the life expectancy will typically exceed
the useful lifetime of most hardware (> 10 years).
The lifetime of a KO-CAP capacitor at a specific application voltage and temperature can be modeled using the equations
below. A failure is defined as passing enough current to blow a 1-Amp fuse. The calculation is an estimation based on
empirical results and is not a guarantee.
VAF =
where:
( )
U
A
U
C
n
[ (
TAF = e
E
a
k
1
273+T
A
1
273+T
C
)]
VAF = Acceleration factor due to voltage, unitless
U
C
= Category voltage, Volt
U
A
= Application voltage, Volt
n = Exponent, 16
where:
TAF = Acceleration factor due to temperature, unitless
E
a
= Activation energy, 1.4 eV
k = Boltzmann’s Constant, 8.617E-5 eV/K
T
A
= Application temperature, °C
T
C
= Category temperature, °C
AF = VAF * TAF
where:
AF = Acceleration factor, unitless
TAF = Accerlation factor due to temperature, unitless
VAF = Acceleration factor due to voltage, unitless
where:
Life
U ,T
= Life
U ,T
* AF
A
A
C
C
Life
UA, TA
= Guaranteed life application voltage
and temperature, years
Life
UC, TC
= Guaranteed life category voltage
and temperature, years
AF = Acceleration factor, unitless
Reliability Table 1 – Common temperature range classifications
85°C (T
R
)/
85°C (T
C
)
105°C (T
R
)/
105°C (T
C
)
105°C (T
R
)/
125°C (T
C
)
Rated Voltage (U
R
)
Category Voltage (U
C
)
Rated Voltage (T
R
)
Category Voltage (U
C
)
Rated Voltage (T
R
)
Category Voltage (U
C
)
2.5
2.5
2.5
2.5
2.5
1.7
4.0
4.0
4.0
4.0
4.0
2.7
6.3
6.3
6.3
6.3
6.3
4.2
8.0
8.0
8.0
8.0
8.0
5.4
10.0
10.0
10.0
10.0
10.0
6.7
12.5
12.5
12.5
12.5
12.5
8.4
16.0
16.0
16.0
16.0
16.0
10.7
20.0
20.0
20.0
20.0
20.0
13.4
25.0
25.0
25.0
25.0
25.0
16.8
35.0
35.0
35.0
35.0
35.0
23.5
50.0
50.0
50.0
50.0
50.0
33.5
63.0
63.0
63.0
63.0
63.0
42.2
75.0
75.0
75.0
75.0
75.0
50.3
Terms:
Category Voltage, U
C
: Maximum recommended peak DC operating voltage for continuous operation at the category temperature, T
C
Rated Voltage, U
R
: Maximum recommended peak DC operating voltage for continuous operation up to the rated temperature, T
R
Category Temperature, T
C
: Maximum recommended operating temperature; voltage derating may be required at T
C
Rated Temperature, T
R
: Maximum recommended operating temperature without voltage derating; T
R
is equal to or lower than T
C
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2018_T528 • 1/11/2018
4
KEMET Organic Capacitor (KO-CAP
®
) – Miniature
T528 Low ESL Polymer Electrolytic for CPU/GPU Decoupling
Electrical Characteristics
ESR vs. Frequency
10
T528Z337M2R5ATE012_Imp
Capacitance vs. Frequency
1,000
Impedance, ESR (Ohms)
1
T528Z337M2R5ATE009_Imp
T528Z337M2R5ATE007_Imp
T528Z337M2R5ATE009_ESR
T528Z337M2R5ATE012_ESR
T528Z337M2R5ATE007_ESR
0.1
Capacitance (µF)
100
10
T528Z337M2R5ATE012
T528Z337M2R5ATE009
T528Z337M2R5ATE007
0.01
0.001
100
1,000
10,000
100,000
Frequency (Hz)
1,000,000
10,000,000
1
1,000
10,000
100,000
Frequency (Hz)
1,000,000
10,000,000
Dimensions – Millimeters
END VIEW
H
W
L
Termination cutout
at KEMET's option,
either end
SIDE VIEW
BOTTOM VIEW
(–)
(+)
F
S1
S2
Case Size
KEMET
B
W
Z
EIA
3528–20
7343–15
7343–17
L
3.5 ±0.2
7.3 ±0.4
7.3 ±0.4
W
2.8 ±0.2
4.3 ±0.3
4.3 ±0.3
Component Dimensions
H
2.0 Maximum
1.5 Maximum
1.7 Maximum
F ±0.2
2.2
2.8
2.8
S1 ±0.4
0.8
5.0
5.0
S2 ±0.2
0.8
1.3
1.3
Total
Weight
(mg)
94.85
222.95
206.33
These weights are provided as reference. If exact weights are needed, please contact your KEMET Sales Representative
