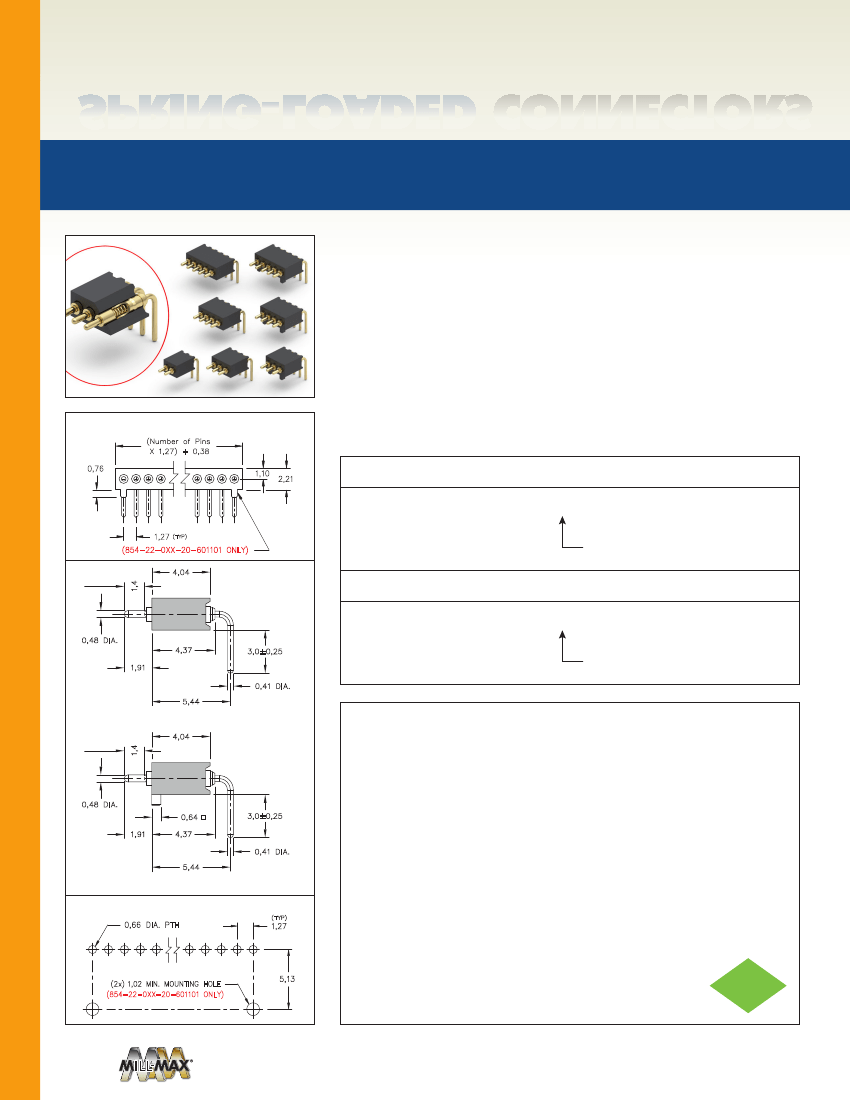

SPRING-LOADED

CONNECTORS

SERIES 854 • 1,27 GRID RIGHT ANGLE MOUNT •

SINGLE ROW STRIPS

•

Modular contacts for use on 1,27 grid. Supplied in single row strips with or without

mounting pegs

•

Precision-machined piston / base and gold-plated components assure up to 100,000

cycle life durability

•

Pistons have a 0,7 mid. stroke & 1,4 max. stroke

•

Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak

•

High temperature thermoplastic insulators are suitable for wave and reflow soldering

processes

•

854 series contact strips are designed for through-hole mounting in the circuit board

SINGLE ROW Series 854

ORDERING INFORMATION

Single Row Series 854

854-22-0XX-20-001101

Specify number of contacts

01-20

Stroke

Single Row with Mounting Pegs Series 854

854-22-0XX-20-601101

Specify number of contacts

01-20

854 Series without Mounting Pegs

Stroke

PAGE 18.1 | SPRING-LOADED CONNECTORS

Materials:

Contact piston & base: Machined copper alloy plated 0,51μm gold over

2,54μm nickel

Spring: Beryllium copper-plated 0,25μm gold

Insulator: High temperature thermoplastic, rated UL94 V-0

Mechanical:

Spring force @ initial height: 25 grams

Spring force @ mid stroke (0,7): 60 grams

Durability: Up to 100,000 cycles

Electrical:

Voltage rating: 100Vrms/150Vdc

Current rating: 2A (continous), 3A (peak) per contact

Contact resistance: 20mW max.

Insulation resistance: 10,000MW min.

Dielectric strength: 700Vrms min.

Capacitance: 1pF max.

Technical Specifications

854 Series with Mounting Pegs

Suggested P.C.B. Footprint

5,13

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
