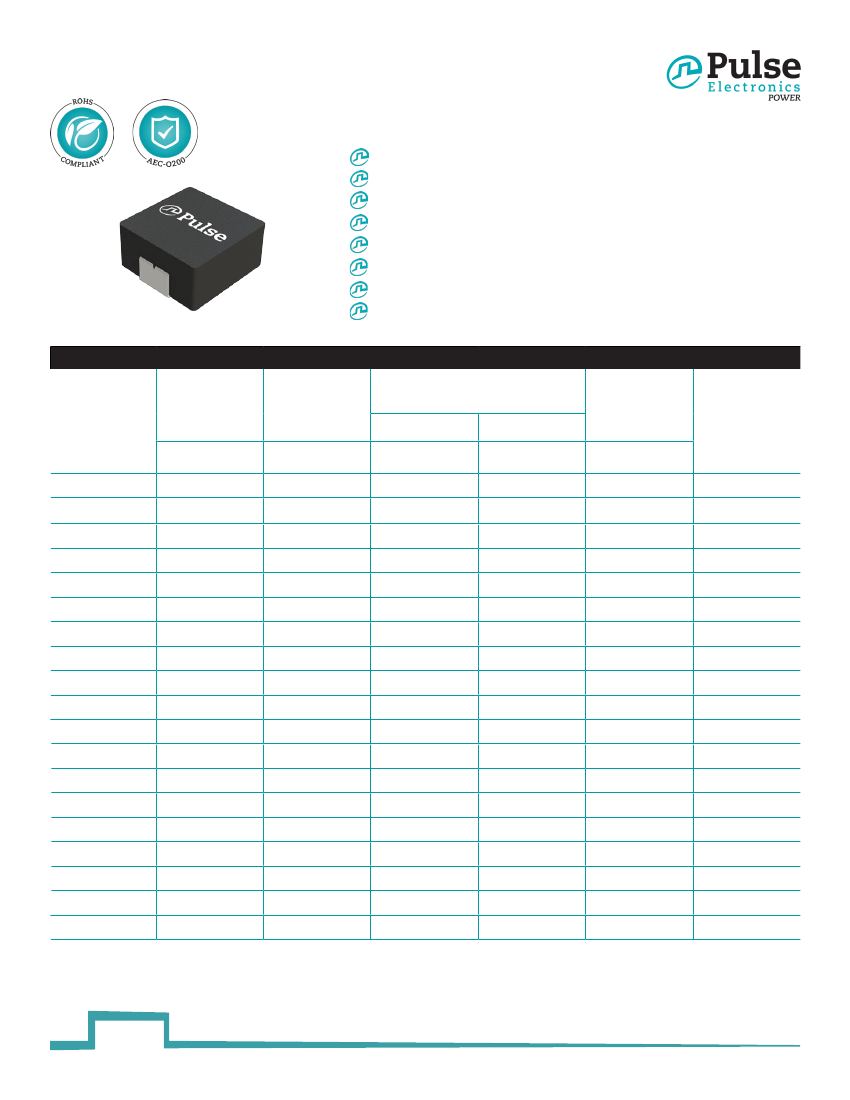

SMT Power Inductor
High Current Molded Power Inductor - PA4343.XXXNLT Series
Height:
6.5mm Max
Footprint:
14.0mm x 12.8mm Max
Current Rating:
up to 55.0A
Inductance Range:
0.15uH to 47.0uH
Shielded construction and compact design
High current, low DCR, and high efficiency
Minimized acoustic noise and minimized leakage flux
200Vdc Isolation between terminal and core
Electrical Specifications @ 25°C - Operating Temperature -55°C to +125°C
Part
Number
PA4343.151NLT
PA4343.221NLT
PA4343.301NLT
PA4343.331NLT
PA4343.361NLT
PA4343.401NLT
PA4343.451NLT
PA4343.471NLT
PA4343.501NLT
PA4343.561NLT
PA4343.681NLT
PA4343.821NLT
PA4343.102NLT
PA4343.142NLT
PA4343.152NLT
PA4343.182NLT
PA4343.222NLT
PA4343.272NLT
PA4343.332NLT
Inductance
100KHz, 1V
uH
0.15±30%
0.22±20%
0.30±20%
0.33±20%
0.36±20%
0.40±20%
0.45±20%
0.47±20%
0.50±20%
0.56±20%
0.68±20%
0.82±20%
1.00±20%
1.40±20%
1.50±20%
1.80±20%
2.20±20%
2.70±20%
3.30±20%
Rated
Current
A
55.0
53.0
48.0
46.0
45.0
44.0
42.0
41.0
40.0
37.0
35.0
33.0
30.0
27.0
27.0
27.0
22.0
20.0
18.0
DC
Resistance
MAX.
mΩ
0.60
0.60
0.72
0.8
0.9
1.0
1.2
1.2
1.25
1.2
1.5
1.9
2.3
2.6
3.0
4.0
4.2
5.5
6.8
TYP.
mΩ
0.49
0.47
0.60
0.65
0.7
0.7
0.9
0.9
0.92
1.05
1.25
1.5
1.7
2.1
2.5
3.6
3.8
4.3
5.7
Saturation
Current
Max.
A
118.0
112.0
72.0
68.0
66.0
64.0
63.0
63.0
60.0
58.0
55.0
50.0
48.0
46.0
45.0
40.0
37.0
32.0
30.0
Mechanical
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 1
Footprint 2
Footprint 2
Footprint 2
Footprint 2
1
power.pulseelectronics.com
P770.G (01/18)
http://www.power.pulseelectronics.com/contact
SMT Power Inductor
High Current Molded Power Inductor - PA4343.XXXNLT Series
Electrical Specifications @ 25°C - Operating Temperature -55°C to +125°C
Part
Number
PA4343.472NLT
PA4343.562NLT
PA4343.682NLT
PA4343.822NLT
PA4343.103NLT
PA4343.133NLT
PA4343.153NLT
PA4343.223NLT
PA4343.333NLT
PA4343.473NLT
Inductance
100KHz, 1V
uH
4.70±20%
5.60±20%
6.80±20%
8.20±20%
10.0±20%
13.0±20%
15.0±20%
22.0±20%
33.0±20%
47.0±20%
Rated
Current
A
13.5
12.5
11.5
10.5
10.0
9.0
9.0
9.0
8.0
6.5
DC
Resistance
MAX.
mΩ
8.4
10.0
11.5
15.5
16.5
24.0
28.0
37.0
58.0
90.0
TYP.
mΩ
7.0
8.5
9.5
12.0
13.2
21.0
23.2
32.5
48.0
76.0
Saturation
Current
Max.
A
28.0
23.0
18.0
15.5
15.5
13.0
12.5
12.0
11.0
9.5
Mechanical
Footprint 2
Footprint 2
Footprint 2
Footprint 2
Footprint 2
Footprint 2
Footprint 2
Footprint 2
Footprint 2
Footprint 2
Notes:
1. Actual temperature of the component during system operation (ambient plus tempera- 3.
ture rise) must be within the standard operating range.
2. The saturation current is the current at which the initial inductance drops approximately
30% at the stated ambient temperature. This current is determined by placing the com-
ponent in the specified ambient environment and applying a short duration pulse cur- 4.
rent (to eliminate self-heating effect) to the component.
The rated current is the DC current required to raise the component temperature by
approximately 40°C. Take note that the components’ performanc varies depending on the
system condition. It is suggested that the component be tested at the system level, to
verify the temperature rise of the component during system operation.
The part temperature (ambient+temp rise) should not exceed 125°C under worst case
operating conditions. Circuit design, PCB trace size and thickness, airflow and other cool-
ing provisions all affect the part temperature. Part temperature should be verified in the
end application.

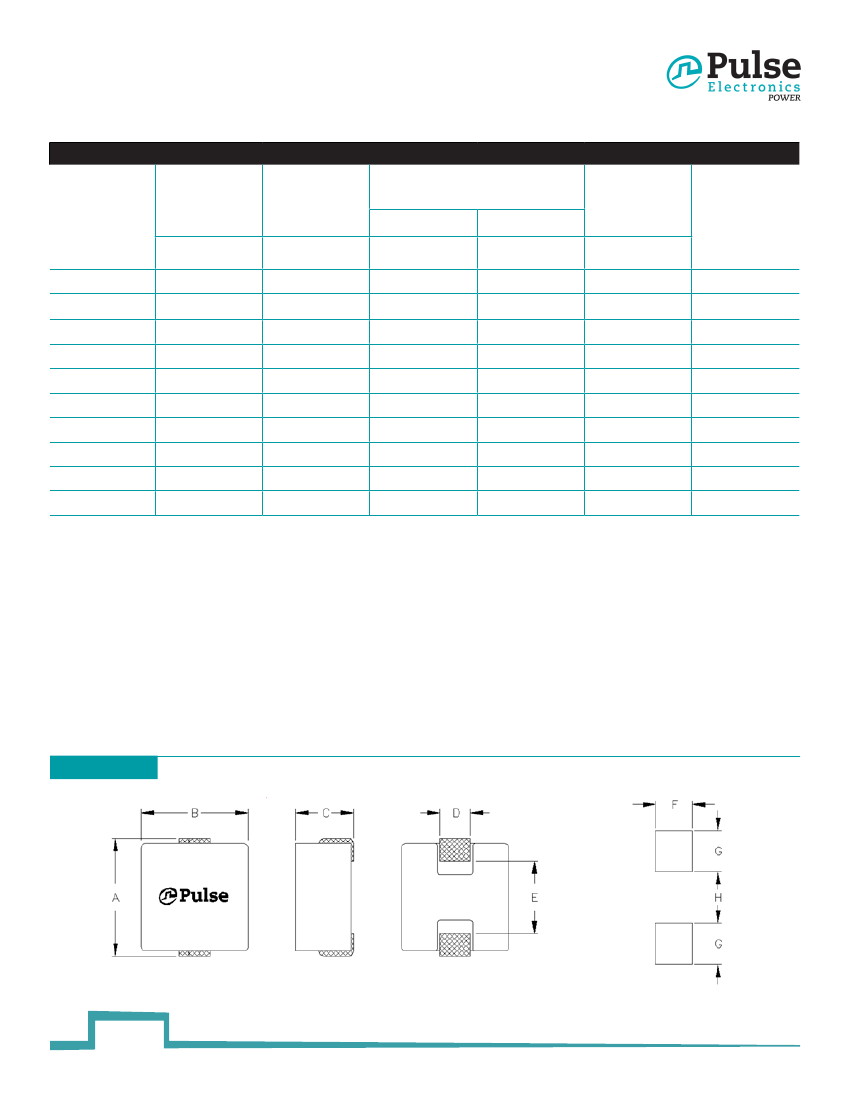

Mechanical
PA4343.XXXNLT
Final Layout
2
power.pulseelectronics.com
SUGGESTED PAD LAYOUT
P770.G (01/18)
http://www.power.pulseelectronics.com/contact
SMT Power Inductor
High Current Molded Power Inductor - PA4343.XXXNLT Series
Series
PA4343.XXXNLT
PA4343.XXXNLT
All Dimensions in mm.
Mechanical
Footprint 1
Footprint 2
A
14.0 Max
14.0 Max
B
12.8 Max
12.8 Max
C
6.5 Max
6.5 Max
D
(4.0)
(4.7)
E
(8.9)
(8.9)
F
(4.3)
(5.0)
G
(3.1)
(3.1)
H
(8.0)
(8.0)

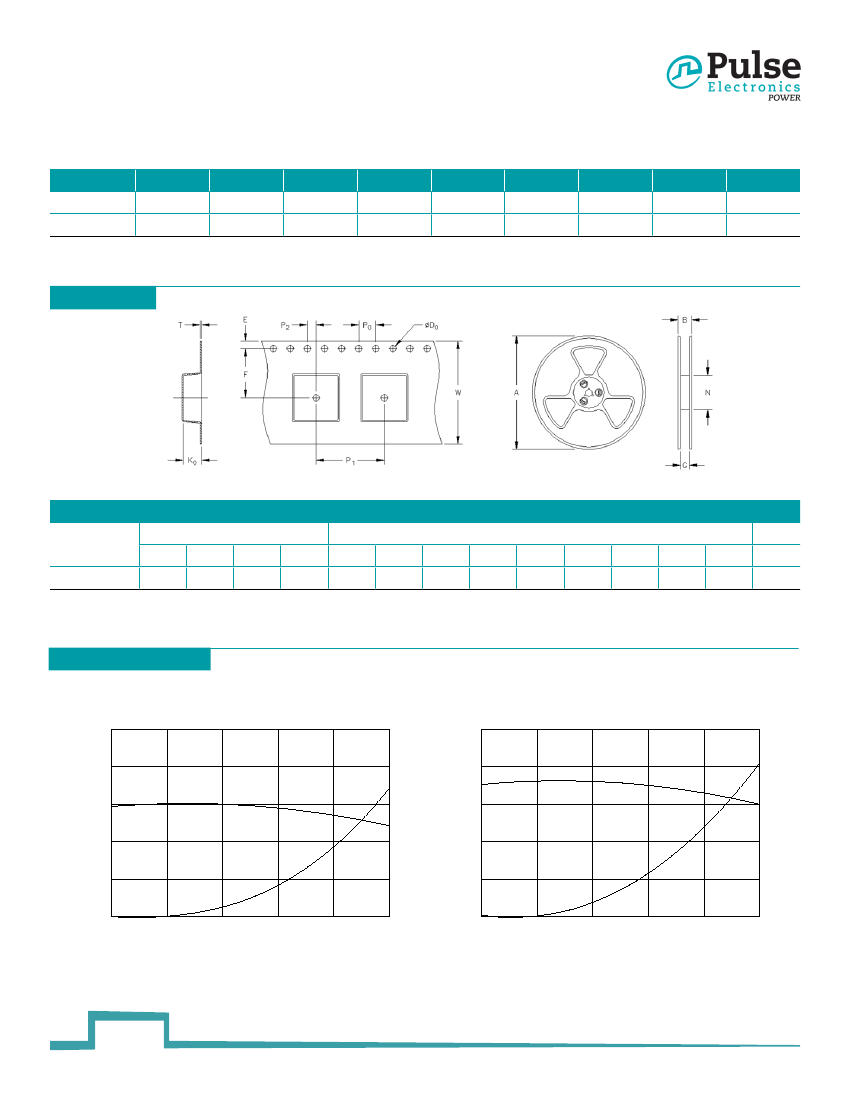

TAPE & REEL INFO
SURFACE MOUNTING TYPE, REEL/TAPE LIST
REEL SIZE (mm)
A
PA4343.XXXNLT
Ø330
B
N/A
G
24
N
100
E
1.75
F
11.5
D
0
1.5
TAPE SIZE (mm)
P
1
16
P
0
4
P
2
2
W
24
T
0.35
K
0
7.0
QTY
PCS/REEL
500
Typical Performance Curves
PA4343.151NLT
0.3
150
0.35
PA4343.221NLT
150
0.24
120
0.28
120
INDUCTANCE (uH)
INDUCTANCE (uH)
TEMP. RISE(
o
C)
0.18
90
0.21
90
0.12
60
0.14
60
0.06
30
0.07
30
0
0
0
0
0
23.6
DC CURRENT(A)
47.2
70.8
94.4
118
0
22.4
DC CURRENT(A)
44.8
67.2
89.6
112
3
power.pulseelectronics.com
P770.G (01/18)
http://www.power.pulseelectronics.com/contact
TEMP. RISE(
o
C)

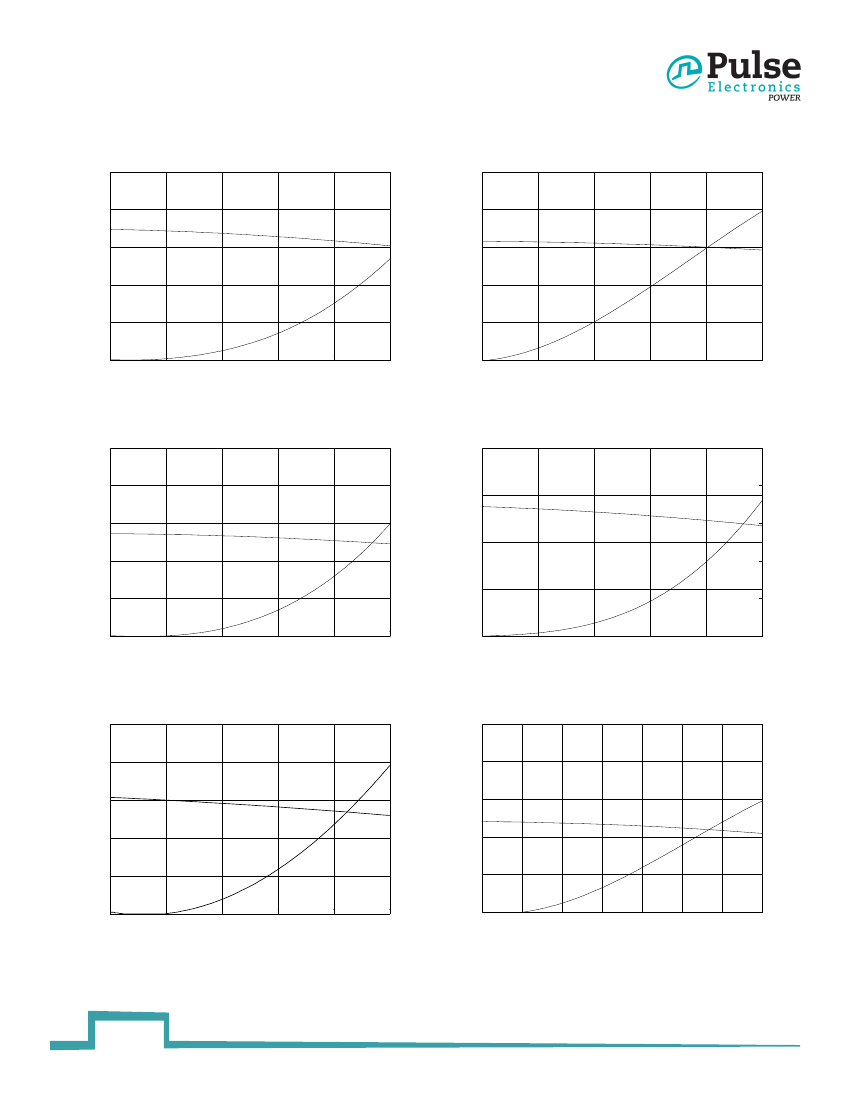

SMT Power Inductor
High Current Molded Power Inductor - PA4343.XXXNLT Series
4
power.pulseelectronics.com
P770.G (01/18)
http://www.power.pulseelectronics.com/contact

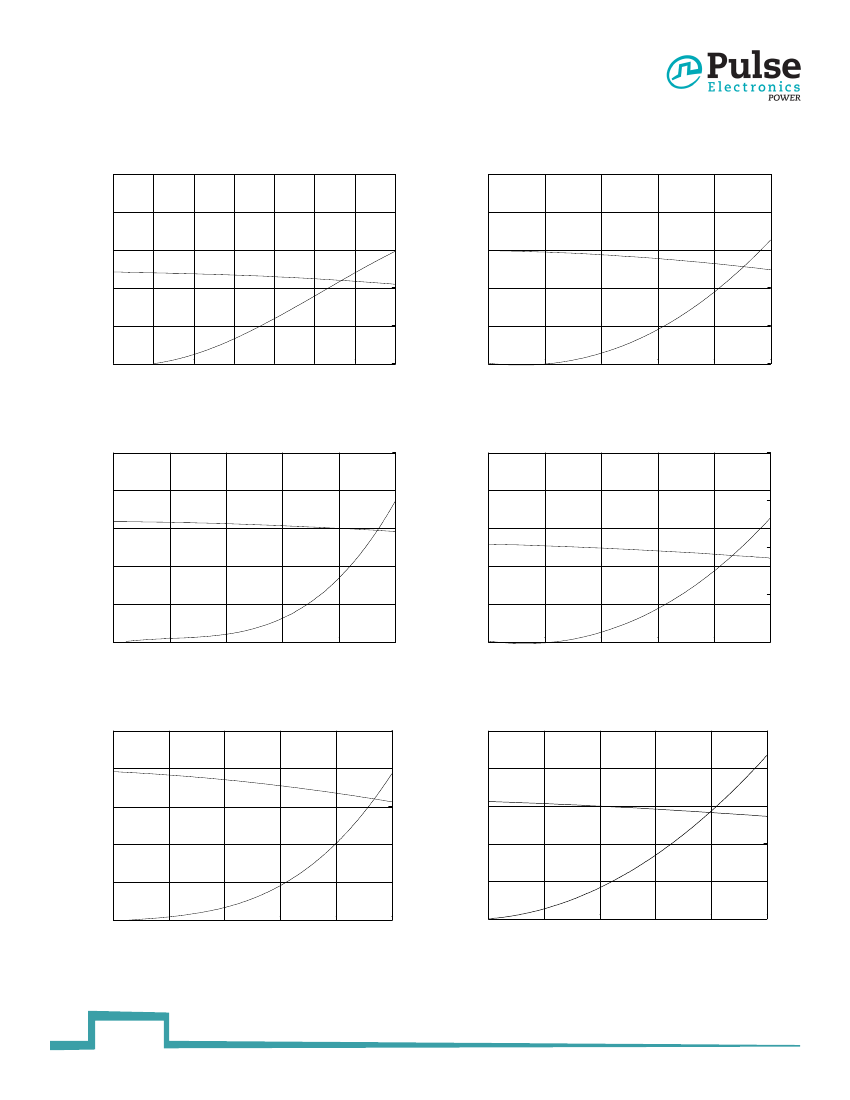

SMT Power Inductor
High Current Molded Power Inductor - PA4343.XXXNLT Series
5
power.pulseelectronics.com
P770.G (01/18)
http://www.power.pulseelectronics.com/contact
