STG1732X-13 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> STG1732X-13

Preview

STG1732X-13: DescriptionPALETTE-DAC DSPL CTLR, PQFP100, PLASTIC, QFP-100; CategoryThe embedded processor and controller Microcontrollers and processors; File Size821KB，24 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

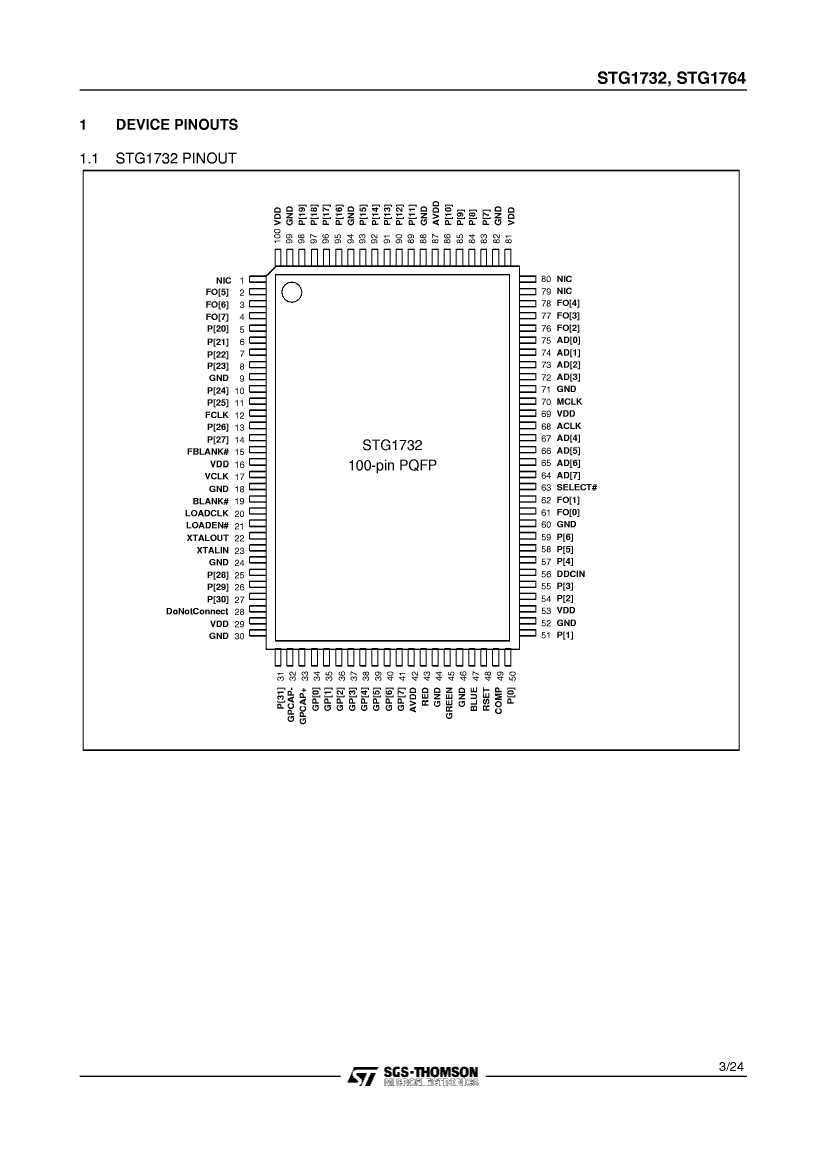

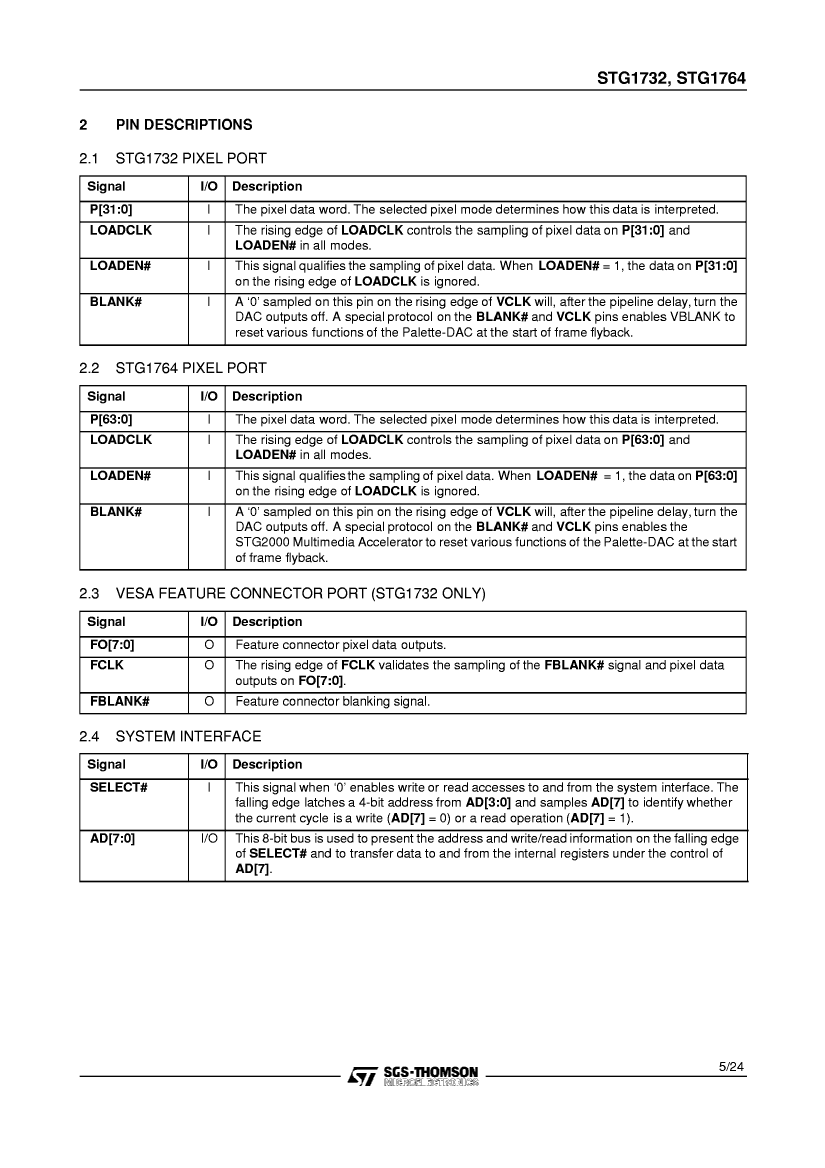

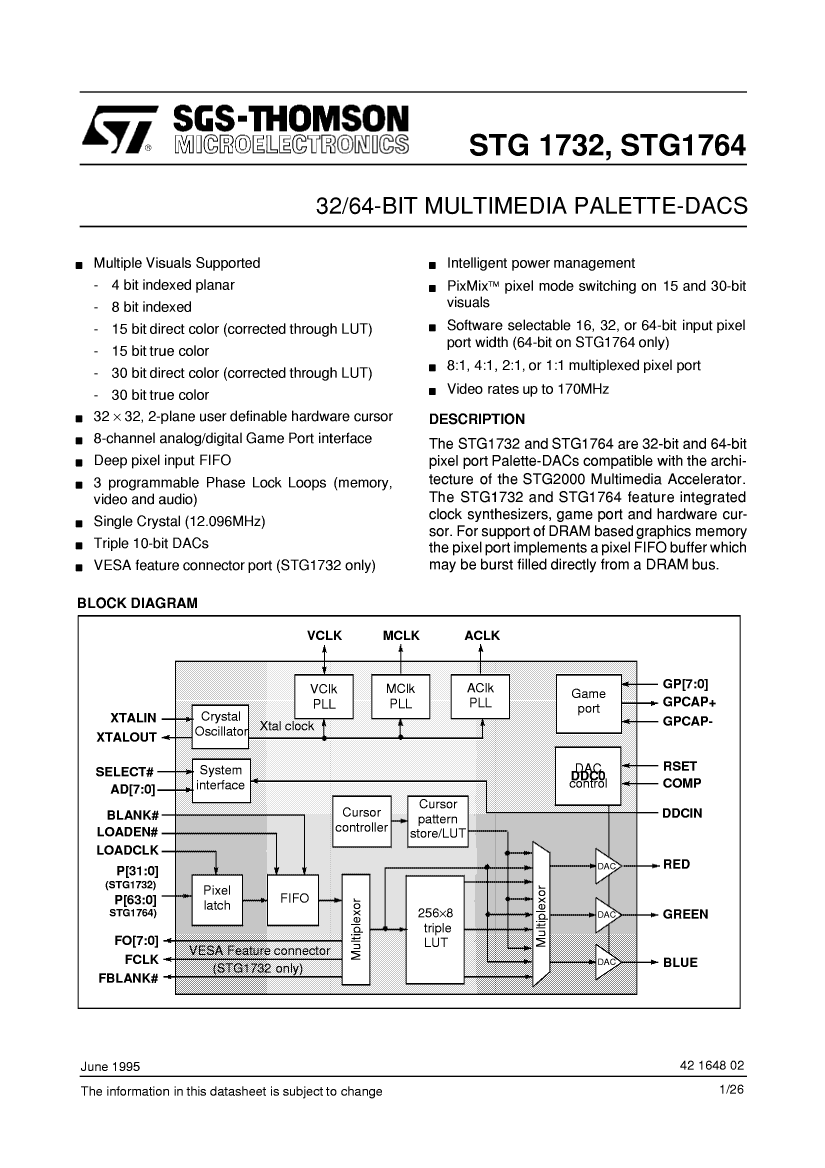

STG1732X-13 Overview

PALETTE-DAC DSPL CTLR, PQFP100, PLASTIC, QFP-100

STG1732X-13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	QFP
package instruction	PLASTIC, QFP-100
Contacts	100
Reach Compliance Code	not_compliant
ECCN code	3A001.A.3
Address bus width	8
Bus compatibility	VESA
maximum clock frequency	135 MHz
External data bus width	8
JESD-30 code	R-PQFP-G100
JESD-609 code	e0
length	20 mm
Number of terminals	100
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	3.4 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, PALETTE DAC

Preview

Download Datasheet

View All

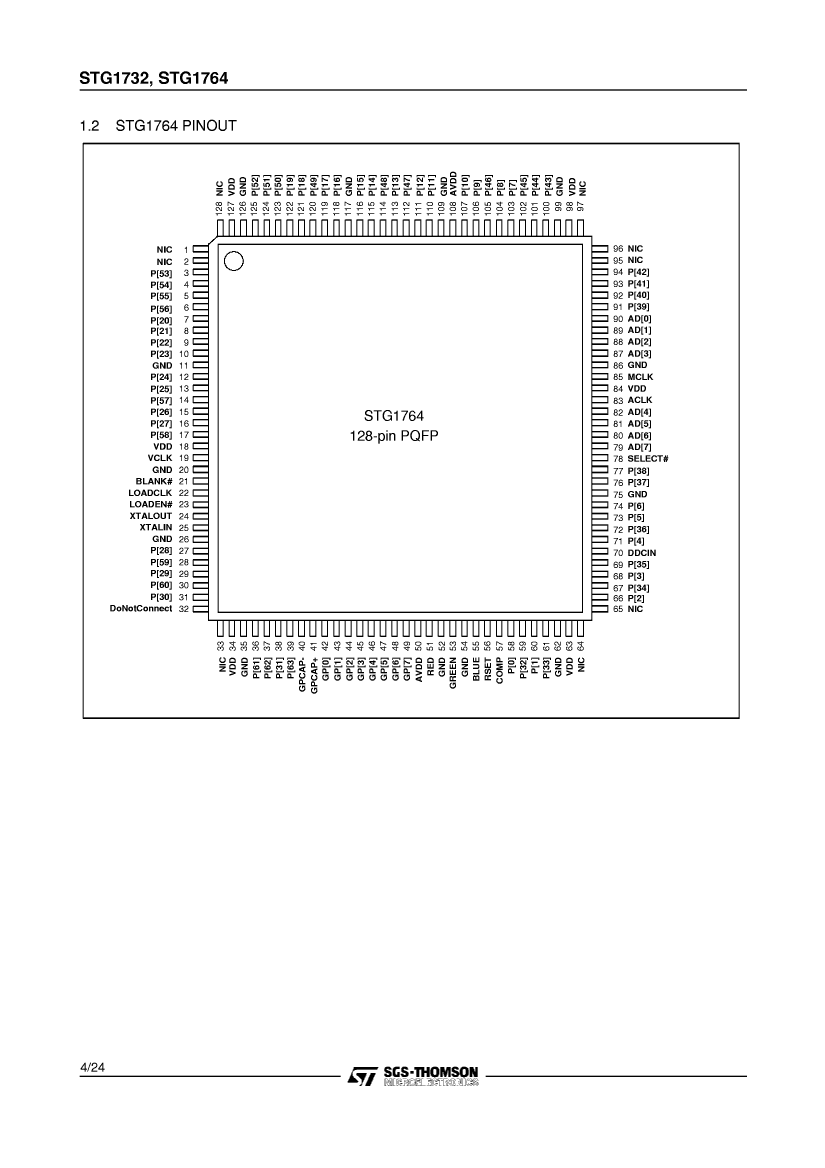

STG1732X-13 Related Products

	STG1732X-13	STG1764X-13	STG1764X-17
Description	PALETTE-DAC DSPL CTLR, PQFP100, PLASTIC, QFP-100	PALETTE-DAC DSPL CTLR, PQFP128, PLASTIC, QFP-128	PALETTE-DAC DSPL CTLR, PQFP128, PLASTIC, QFP-128
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	QFP	QFP	QFP
package instruction	PLASTIC, QFP-100	PLASTIC, QFP-128	PLASTIC, QFP-128
Contacts	100	128	128
Reach Compliance Code	not_compliant	not_compliant	not_compliant
ECCN code	3A001.A.3	3A001.A.3	3A001.A.3
Address bus width	8	8	8
Bus compatibility	VESA	VESA	VESA
maximum clock frequency	135 MHz	135 MHz	170 MHz
External data bus width	8	8	8
JESD-30 code	R-PQFP-G100	S-PQFP-G128	S-PQFP-G128
JESD-609 code	e0	e0	e0
length	20 mm	28 mm	28 mm
Number of terminals	100	128	128
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP
Package shape	RECTANGULAR	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.4 mm	4.07 mm	4.07 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	14 mm	28 mm	28 mm
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, PALETTE DAC	DISPLAY CONTROLLER, PALETTE DAC	DISPLAY CONTROLLER, PALETTE DAC
