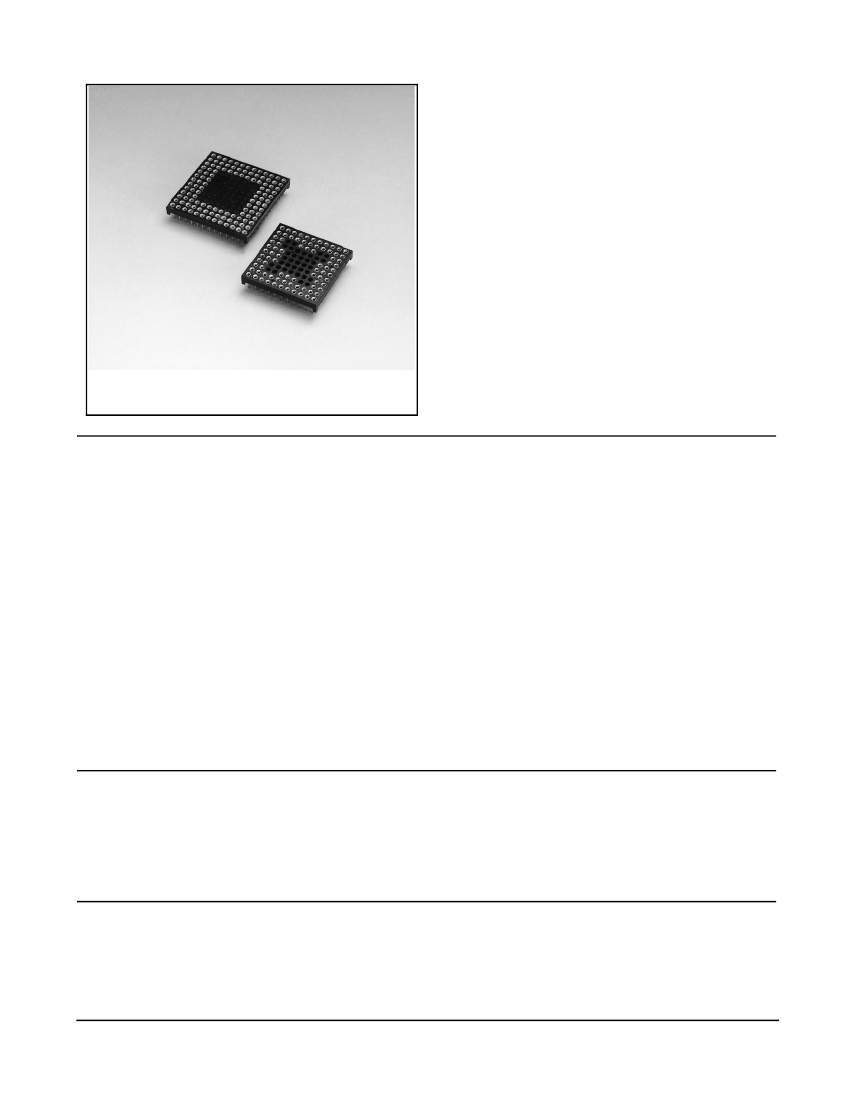

3M
™

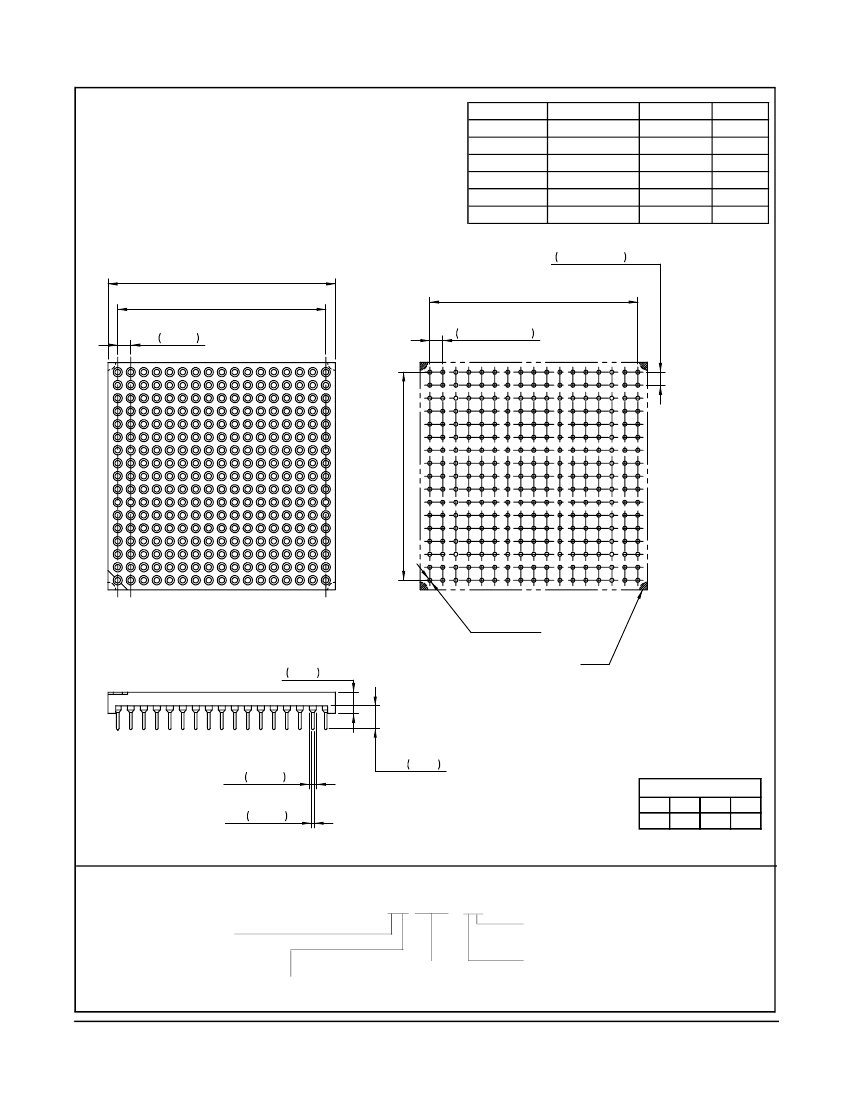

PGA Socket
Screw Machine
200 Series
• Accepts various PGA packages
• Reliable four finger contact interface
• Unique body design prevents air voids during
soldering
• Optional seal tape for closed-body
configuration
• Custom patterns available for quantities above
100
• RoHS* compliant
ED
Date Modified:
August 8, 2008
TS-2116-B
Sheet 1 of 2
Insulation Material:
Flammability:
Color:
Contact Material:
Sleeve:
Inner contact:
Plating Underplating:
Wiping Area:
Terminal Area:
Seal Tape (optional):
Material:
Color:
Mating Device Leads:
Circular Lead:
Length:
Marking:
Gold flash (RoHS compliant)
Polyester
White
Electrical
Current Resistance:
< 25m
Ω
Current Rating:
1 A
Insulation Resistance:
1,000 M
Ω
at 500 V
DC
Withstanding Voltage:
1000 V
AC
rms for 1 minute
D
IS
ø 0.40~0.53 mm
2.9 mm mim.
None
C
"RoHS compliant" means that the product or part does not contain any of
the following substances in excess of the following maximum concentration
values in any homogeneous material, unless the substance is in an
application that is exempt under RoHS: (a) 0.1% (by weight) for lead,
mercury, hexavalent chromium, polybrominated biphenyls or
polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium.
Unless otherwise stated by 3M in writing, this information represents 3M's
knowledge and belief based upon information provided by third party
suppliers to 3M.
Environmental
Temperature Rating:
-65°C to +125°C
Process Rating:
260°C MAX for 5 seconds,
(Dipping: One time)
Not for reflow soldering.
3
Interconnect Solutions
http://www.3M.com/interconnects/
O
Brass
Beryllium Copper
100
μ″
[ 2.54
μm
] min. Nickel
8
μ″
[ .02
μm
] min. Gold
N
TI
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Glass Filled Polyester
UL 94V-0
Black
N
U
Physical
3M
™
PGA Socket
Screw Machine
Matri x
10x10
11X11
13X13
14X14
15X15
17X17
Part Nu m be r
20X-XXX-0XX
21X-XXX-0XX
23X-XXX-0XX
24X-XXX-0XX
25X-XXX-0XX
27X-XXX-0XX
200 Series
Di m A
1.05 [26.7]
1.15 [29.2]
1.35 [34.3]
1.45 [36.8]
1.55 [39.4]
1.75 [44.4]
Di m B
9
10
12
13
14
16
.100 ±.003
2.54 ±.08
A
.100 (2.54) X B
.100
2.54
.100 (2.54) x B
u
.004 (0.1)
.100 ±.003
2.54 ±0.08
.100 (2.54) x B
u
.004 (0.1)
O
C
D
IS
.161
4.1
.126
3.2
N
.040 ±.002
1.01 ±.05
4X STANDOFF AREA
TI
N
U
In c h
[m m ]
T o le ra n c e U n le s s N o te d
.0
in c h
± .1
.0 0
.0 0 0
O
O
Note: Not for reflow soldering.
.053
1.35
.020
0.50
ED
± .0 1 ± .0 0 5
[ ] D im e n s io n s fo r R e fe re n c e
O n ly
Ordering Information
2XX-XXX-0XX
Matrix:
0 = 10 x10
1 = 11 x 11
3 = 13 x 13
4 = 14 x 14
5 = 15 x 15
7 = 17 x 17
Seal Tape:
0 = Without Seal Tape
1= With Seal Tape
Contact Quantity
Pin Pattern Variation
0-9: Assigned by 3M
Tail plating:
5 = Gold flash (RoHS compliant)
TS-2116-03
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations
related to 3M’s products are based on information believed to be
reliable, but the accuracy or completeness is not guaranteed.
Before using this product, you must evaluate it and determine if it
is suitable for your intended application. You assume all risks and
liability associated with such use. Any statements related to the
product which are not contained in 3M’s current publications, or
any contrary statements contained on your purchase order shall
have no force or effect unless expressly agreed upon, in writing,
by an authorized officer of 3M.
D
IS
C
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and
manufacture for a period of one (1) year from the time of
purchase.
3M MAKES NO OTHER WARRANTIES INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
If this product is defective within the warranty period
stated above, your exclusive remedy shall be, at 3M’s option, to
replace or repair the 3M product or refund the purchase price of
the 3M product.
Except where prohibited by law, 3M will not
be liable for any indirect, special, incidental or consequential
loss or damage arising from this 3M product, regardless of
the legal theory asserted.
3M
Electronics
6801 River Place Blvd.
Austin, TX 78726-9000
800/225-5373
www.3M.com/electronics
3
O
N
Minimum 10%
Post-Consumer Fiber
Printed in USA.
© 3M 2007
TI
N
U
ED
